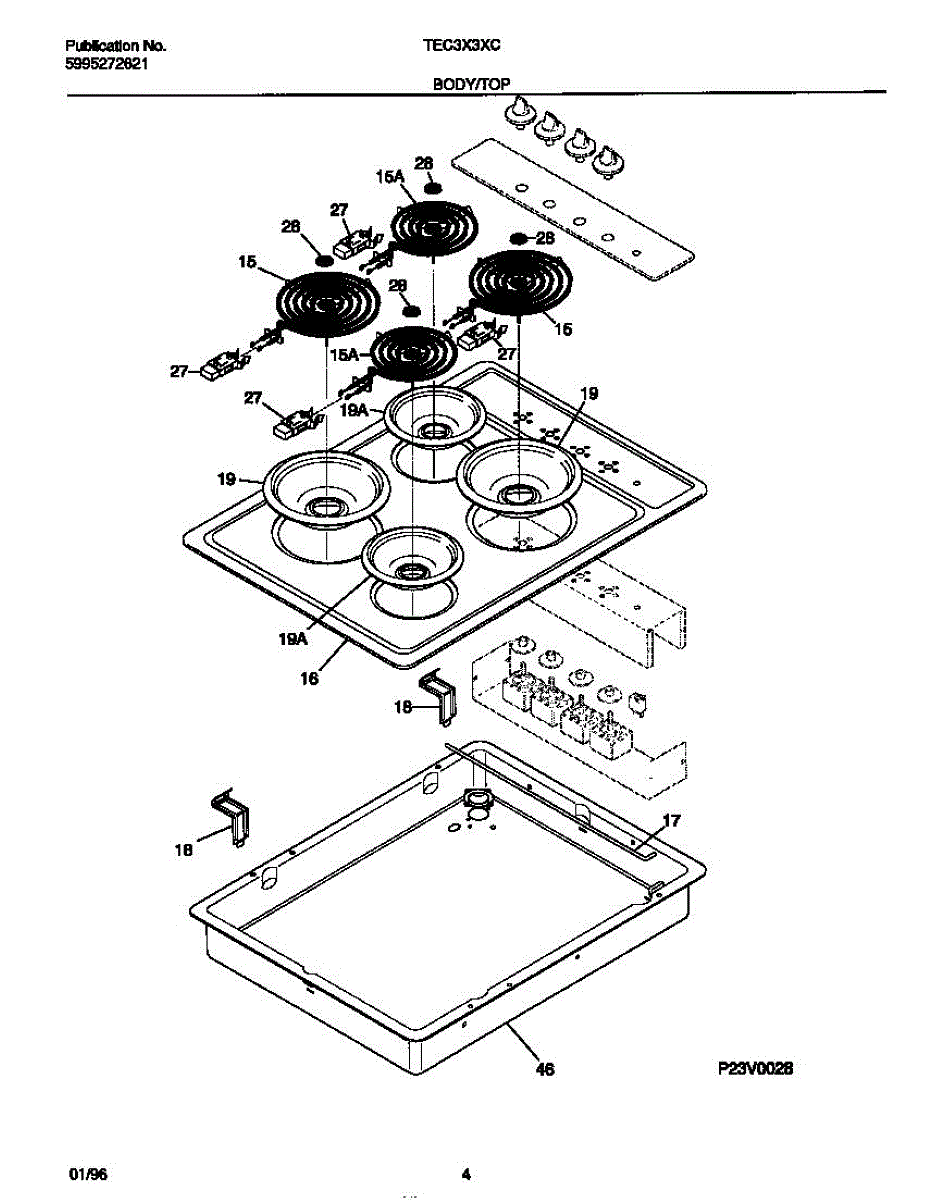

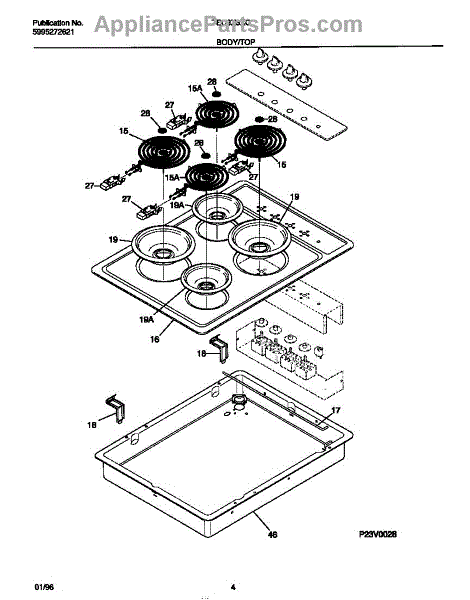

Parts for Frigidaire TEC3X3XCDA: 03 - Body / Top Parts

This electric heating coil provides heat for cooking on your range's cooktop surface, plugging into a receptacle beneath the cooktop. Replace when the element doesn't heat up, heats unevenly, or shows visible damage like cracks or burn marks.

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

This main top gives your range a clean, finished cooking surface and restores stable support for burners and cookware. The almond finish matches original styling for a like-new look and reliable function. What it does:

• Replaces a cracked, warped, rusted or heavily scratched cooktop surface
• Provides a secure mounting surface for burners, grates, and cooktop components
• Restores proper clearance and alignment for controls and burner assemblies
• Improves cosmetic appearance and protects internal parts from spills and debris

• One main top (almond) as pictured

• Disconnect power (and shut off gas for gas ranges) before beginning work
• Remove burner grates, elements, and control panel per service instructions to access the top
• Handle edges carefully; panels can have sharp metal edges

Replace cracked, rusted, or stained drip pans under your range burners. Catches spills and protects cooktop. Easy snap-in installation, no tools needed.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

Decorative nameplate medallion that restores your range's original appearance on the control panel or door. Replaces cracked, faded, or missing emblems.
