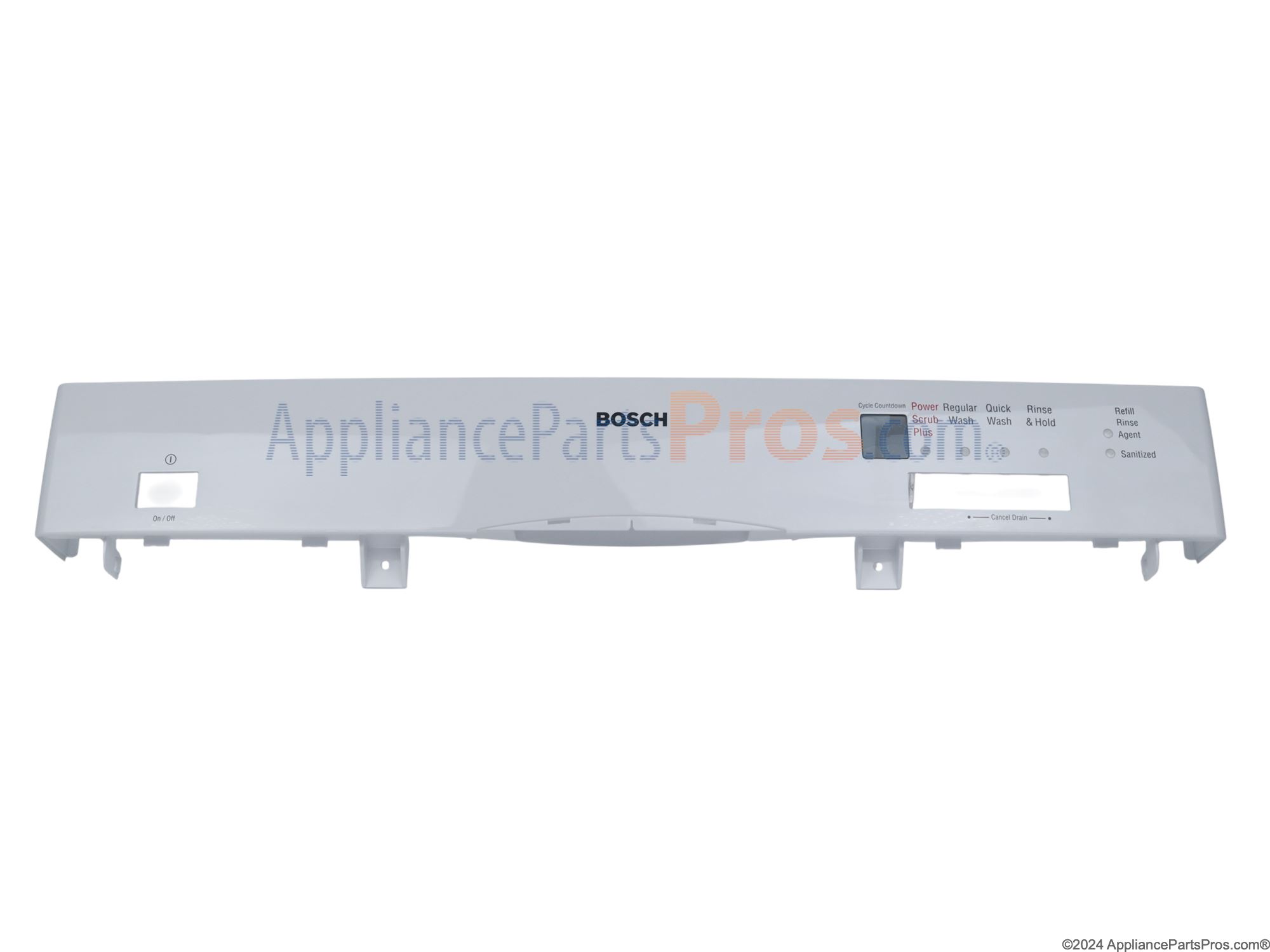

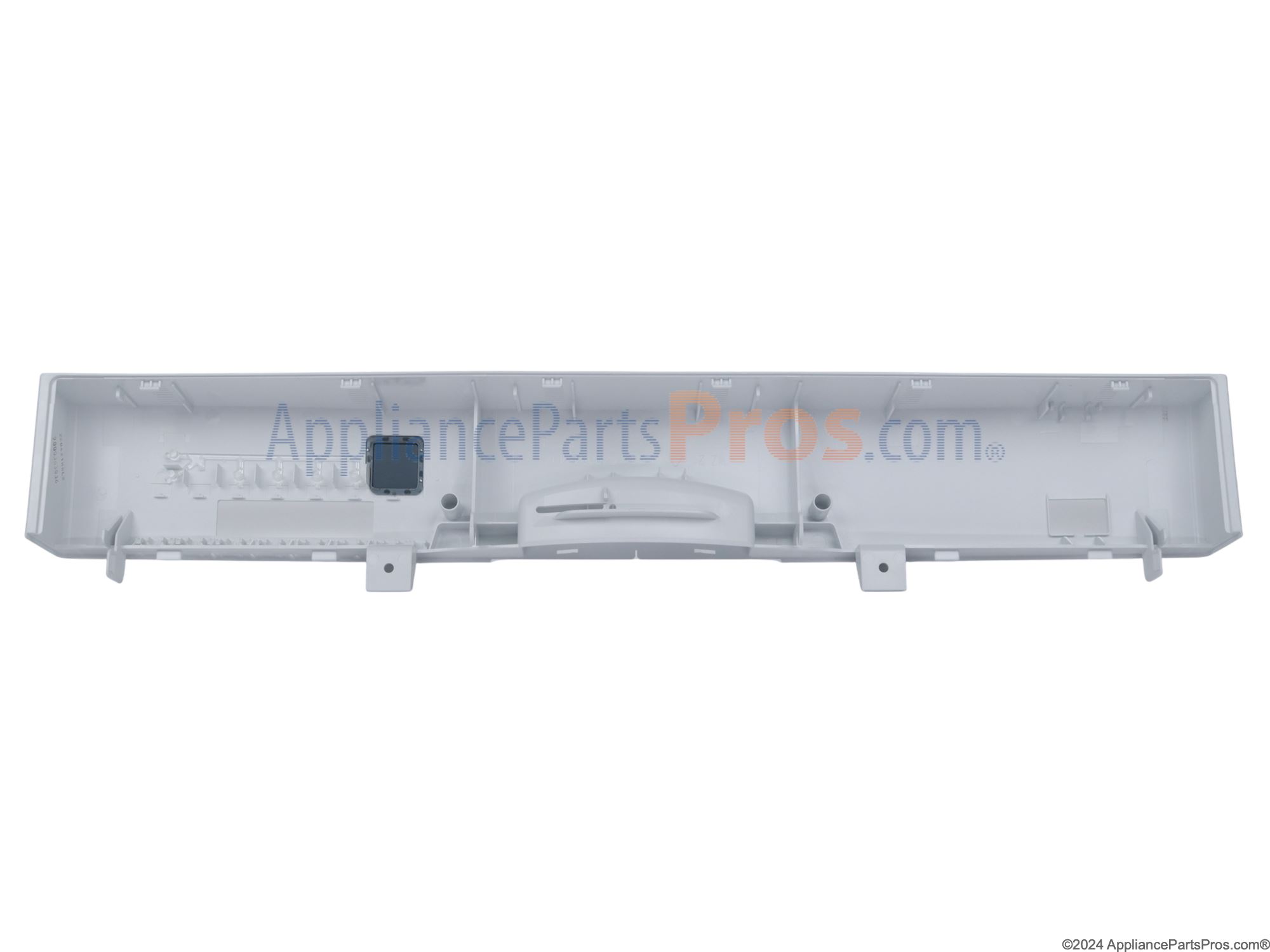

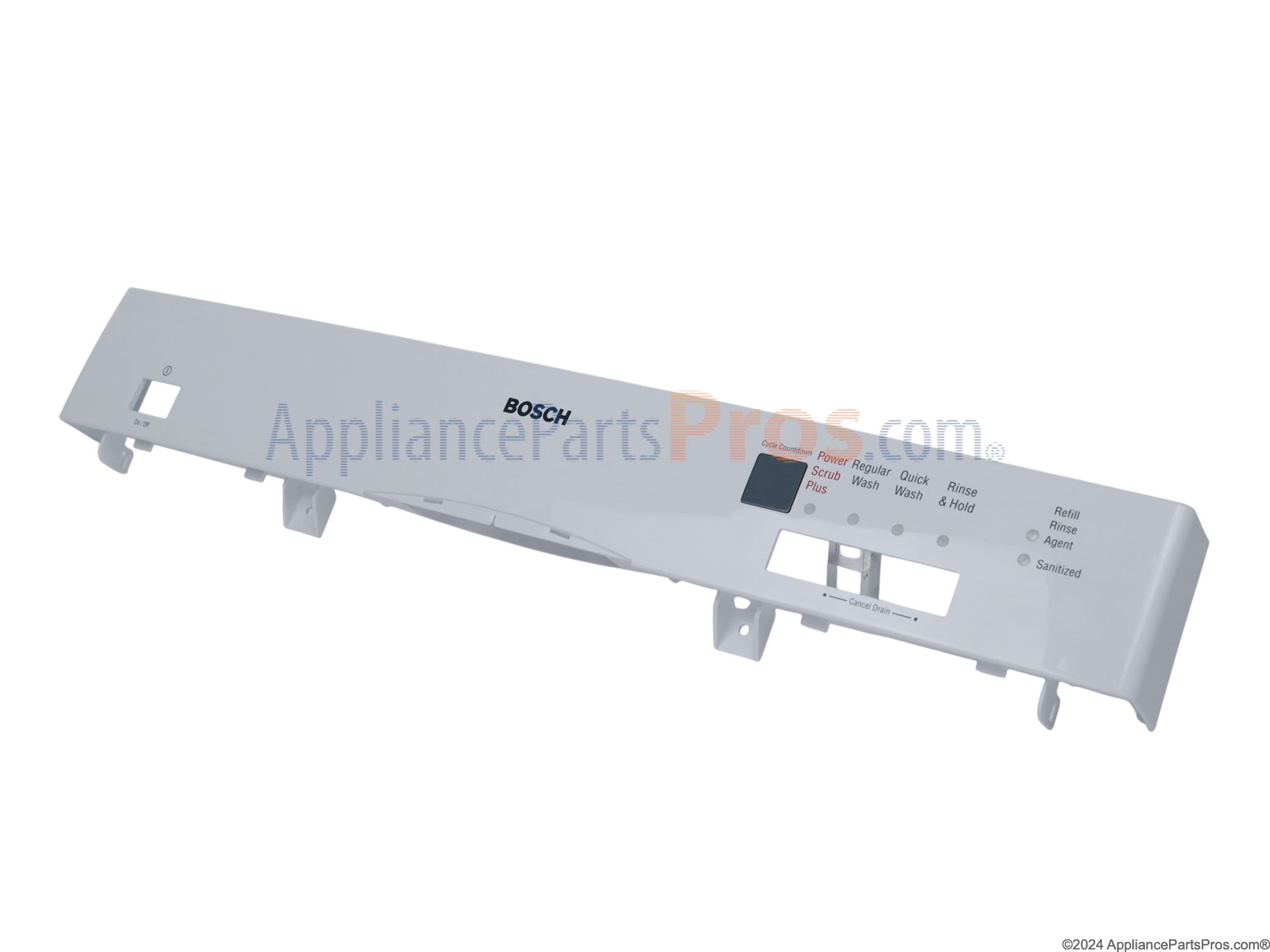

Bosch 00475224 Dishwasher Control Panel Fascia OEM Part

Ordered the part (surprised it was even available after such a long time). It took my wife and myself to figure out the how to do the replacement..since there were no specific instructions. We discoved it along the way and did not break anything else. Took about 15 to 20 minutes to get it done. We would have been spending $700 to replace the dishwasher had the part not been available. Our cost was $70.

Ordered another facia panel and followed the GREAT instruction video, that showed what screws to remove and how the panels are removed and replaced.

Ordered a replacement panel-facia and replaced the broken one.

Removed old control panel remnants and whole front cover with a Torx wrench. Pulled the buttons from the old panel and moved them to the new panel. This was the trickiest part. The four buttons on the right should be installed in the same right to left order. If you don’t get the order correct, then the buttons don’t work right. The leftmost button has the most depth because the panel front is curved. Once that was figured out, the installation was a breeze.

With new part ordered from Appliancepros
