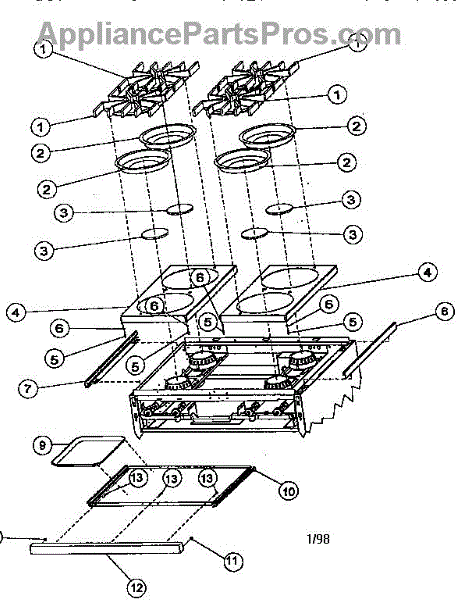

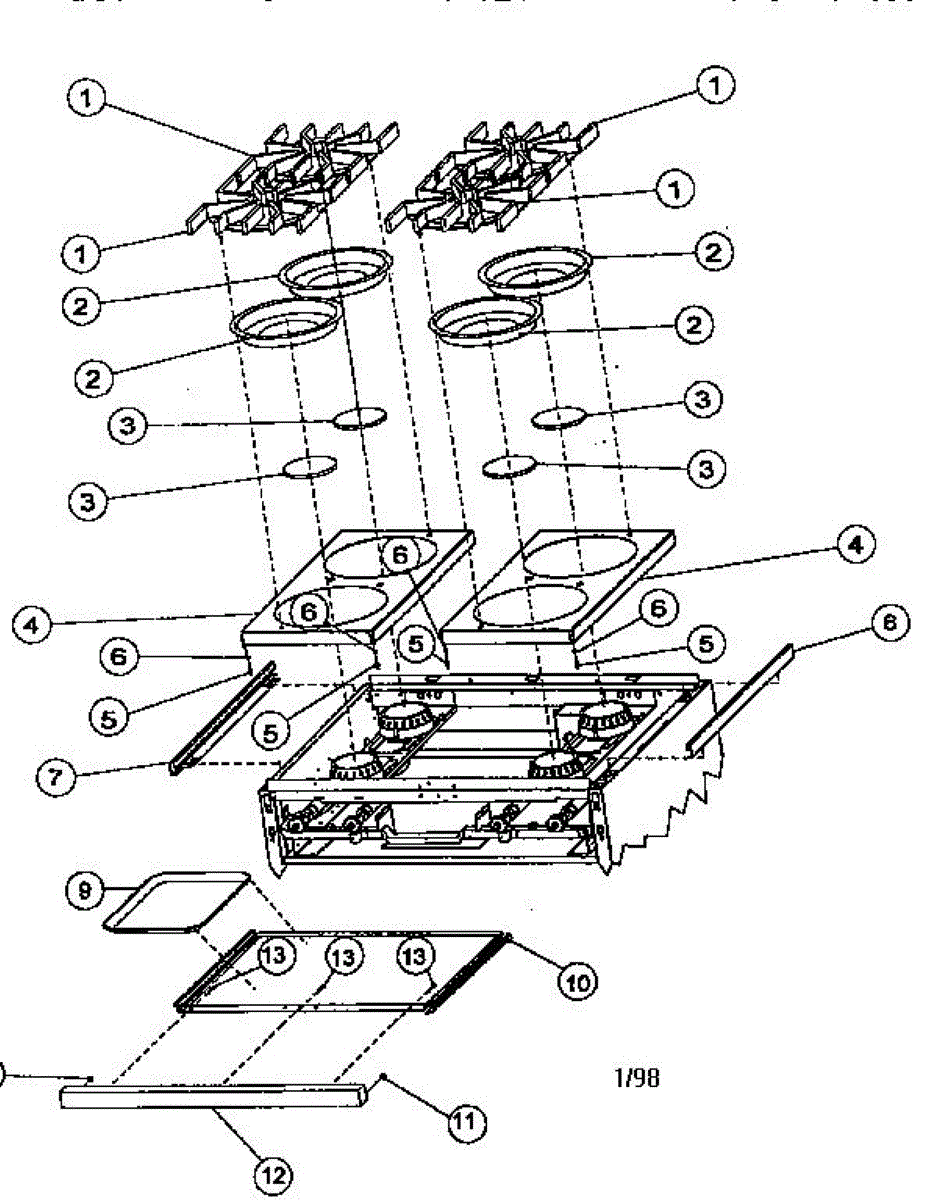

Parts for Viking Range VGRC36: Burner Box Exterior Assembly Parts

This surface burner grate supports cookware above the flame on a gas range or cooktop. Replacing a cracked or warped grate restores a stable, level cooking surface and proper pan-to-burner clearance for safer, consistent heating.

• Supports pots and pans over the burner at the correct cooking height
• Helps keep cookware level and stable during use
• Allows proper heat/flame circulation around the pan
• Common fix for: broken, cracked, chipped, or warped grates; rocking pans or unstable cookware

• Turn all burners off and allow the surface to cool completely before handling
• Lift off the old grate; clean the burner area of debris and residue
• Place the new grate so it seats flush and level; verify it does not rock
• Avoid dropping or sliding the grate to prevent damage to the grate or cooktop

This stainless-steel burner bowl collects and channels heat and drippings under the burner to protect the cookbox and support proper burner operation. Durable replacement for corroded or damaged bowls to restore safe, even grilling. What it does:

• Holds and routes grease/drippings away from the burner to help prevent flare-ups.
• Supports the burner assembly and positions it for correct flame pattern.
• Replace if bowl is dented, rusted, cracked, or causing uneven heating.
• Can help stop burner instability or ignition problems when the original bowl is damaged.

• One stainless-steel burner bowl.

• Turn off and disconnect propane or natural gas supply before starting any repair.
• Remove grates and control components as needed; keep hardware for reuse unless corroded.
• Inspect surrounding components (burner, valves, igniter) and clean surfaces before installing.

The Burner Cap is an OEM part for Viking ranges. It sits atop the burner head, distributing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Causes of a bad burner cap can include prolonged exposure to high heat, accidental impact from cookware, or buildup of food residues and grease.

Symptoms of a bad Burner Cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Persistent odors or smoke from burnt residues

This OEM Viking part ensures your range maintains its high cooking efficiency and safety.

The Burner Cap is an OEM part for Viking ranges. It sits atop the burner head, distributing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Causes of a bad burner cap can include prolonged exposure to high heat, accidental impact from cookware, or buildup of food residues and grease.

Symptoms of a bad Burner Cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Persistent odors or smoke from burnt residues

This OEM Viking part ensures your range maintains its high cooking efficiency and safety.

This grease pan captures and channels cooking drips and lubrication away from the range cavity to help keep the oven and cooktop area cleaner and protect internal components from buildup. Designed as the later production replacement for earlier pans. What it does:

• Collects grease, drips and food particles under the cooktop to prevent buildup in the range cavity
• Directs liquid to a safe collection area for easier cleanup and reduced fire risk from pooling grease
• Restores a proper drain/collection path when a damaged or missing pan causes leaks or odors
• Fits later-production Viking ranges using the "after 12/6/9" pan configuration

• One grease pan

• Install by removing the cooktop or access panel per your model's service instructions; verify orientation before tightening
• Use basic hand tools; ensure the range is powered off and cool before starting work
• Inspect surrounding seals and fasteners and replace any that are damaged to prevent leaks

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance

The Spark Module Wire is an OEM part for Viking ranges and cooktops. It is responsible for transmitting the electrical signal from the spark module to the burner igniters, enabling the burners to ignite when the control knob is turned on. This wire is crucial for the proper functioning of the ignition system, ensuring that the gas ignites quickly and efficiently.

Over time, the spark module wire can become worn or damaged due to heat exposure, accidental pinching during maintenance, or normal wear and tear. When the wire is compromised, it can lead to issues with the burner ignition process, affecting the overall performance of the appliance.

Symptoms of a bad spark module wire include:

• Burners not igniting or taking longer to ignite
• Intermittent sparking or no sparking at all
• Clicking sound without ignition

This OEM part is specifically designed for Viking appliances, ensuring compatibility and reliable performance.
