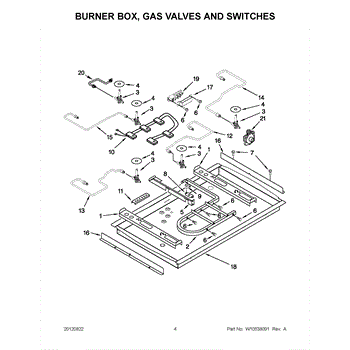

Parts for Kitchenaid KGCK366VSS02: 02 - Burner Box, Gas Valves And Switches Parts

This gas burner valve controls fuel flow to a single burner, restoring proper ignition and flame control for gas ranges and cooktops. Designed as a direct-replacement service part to replace a worn or leaking valve. What it does:

• Regulates gas supply to the burner so the burner lights and maintains a steady flame
• Helps stop leaks or unintended gas flow when the valve fails
• Addresses symptoms like burner not lighting, weak or uneven flame, or gas odor near the burner area
• Works as the control point between the supply line and the burner manifold

• Turn off the appliance and shut off the gas supply before any service; ventilate the area if you smell gas
• Use proper tools and a gas-rated connection; check all fittings for leaks after installation

This burner valve controls gas flow to a cooktop or range burner so the burner lights and adjusts correctly. Replacing a faulty valve restores reliable ignition and steady flame control for safe cooking. What it does:

• Regulates gas flow to a single surface or oven burner for low-to-high flame control
• Helps maintain a steady flame; a worn valve can cause weak, uneven, or no flame
• Can prevent burners from staying lit or from igniting at all when failing
• Works with the range's control knob and gas manifold to deliver the correct fuel flow

• One burner valve

• Turn off the gas supply and unplug the appliance before starting any repair
• Only connect and test gas fittings with a certified gas-safe method; check for leaks after installation
• Tighten connections to OEM torque specs and replace any damaged seals or gaskets

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

Gas valve shaft seal.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This switch wire harness connects the appliance's switch assembly to the rest of the wiring, carrying power and control signals. Replacing a heat-damaged or brittle harness restores safe, reliable operation of the affected controls.

• Routes electrical power and control signals between the switch bank and other circuits
• Faults can cause controls to be unresponsive, work intermittently, or stop functioning
• Heat damage, discoloration, or melted connector housings indicate the harness should be replaced
• Ensures secure, properly keyed connections to prevent arcing and unreliable performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph existing routing and connector positions to aid reassembly
• Move one connector at a time and ensure each is fully seated and latched
• Inspect mating switches/terminals for heat damage and address any issues before reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This spark module supplies the high-voltage pulses that ignite the surface burners on compatible gas cooktops/ranges. Replacing a failing module restores consistent burner spark and reliable lighting when you turn the knobs.

• Distributes ignition voltage to multiple burners; coordinates spark when a burner is turned on
• Common failure symptoms: no spark on any or multiple burners, intermittent clicking, or burners that won't ignite despite gas flow
• Click continuously if internal circuitry fails or senses a short in the ignition system

• Disconnect power and shut off gas before servicing; verify no residual voltage
• Label and transfer each spark wire and connector one at a time to maintain correct routing
• Mount securely and avoid pinching or stretching ignition leads
• If burners still won't spark after replacement, inspect electrode wires, switches, and grounds

This gas tubing is the OEM replacement tube that routes fuel between valves and burners for safe, reliable operation. It restores proper gas flow and helps prevent leaks when the original tube is damaged or corroded. What it does:

• Reconnects gas supply between the range/oven valve and burner manifold or orifice—maintains designed fuel path
• Enables steady gas flow for consistent burner ignition and heat
• Replaces cracked, pinched, bent, or corroded tubing that can cause weak flames or intermittent burner operation
• Helps reduce risk of gas leaks when installed and sealed correctly

• One gas tubing connector as shown

• Only install with the appliance disconnected from gas and power; confirm gas is shut off before starting
• Use proper fittings and thread sealant rated for gas connections; tighten to OEM torque to avoid leaks
• After installation, test all joints with a gas leak detector or soapy water and verify correct burner operation
