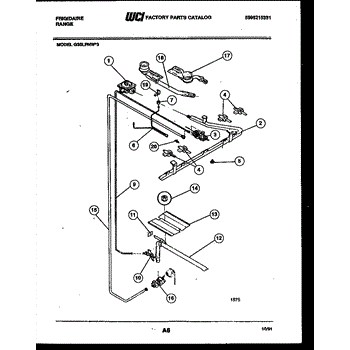

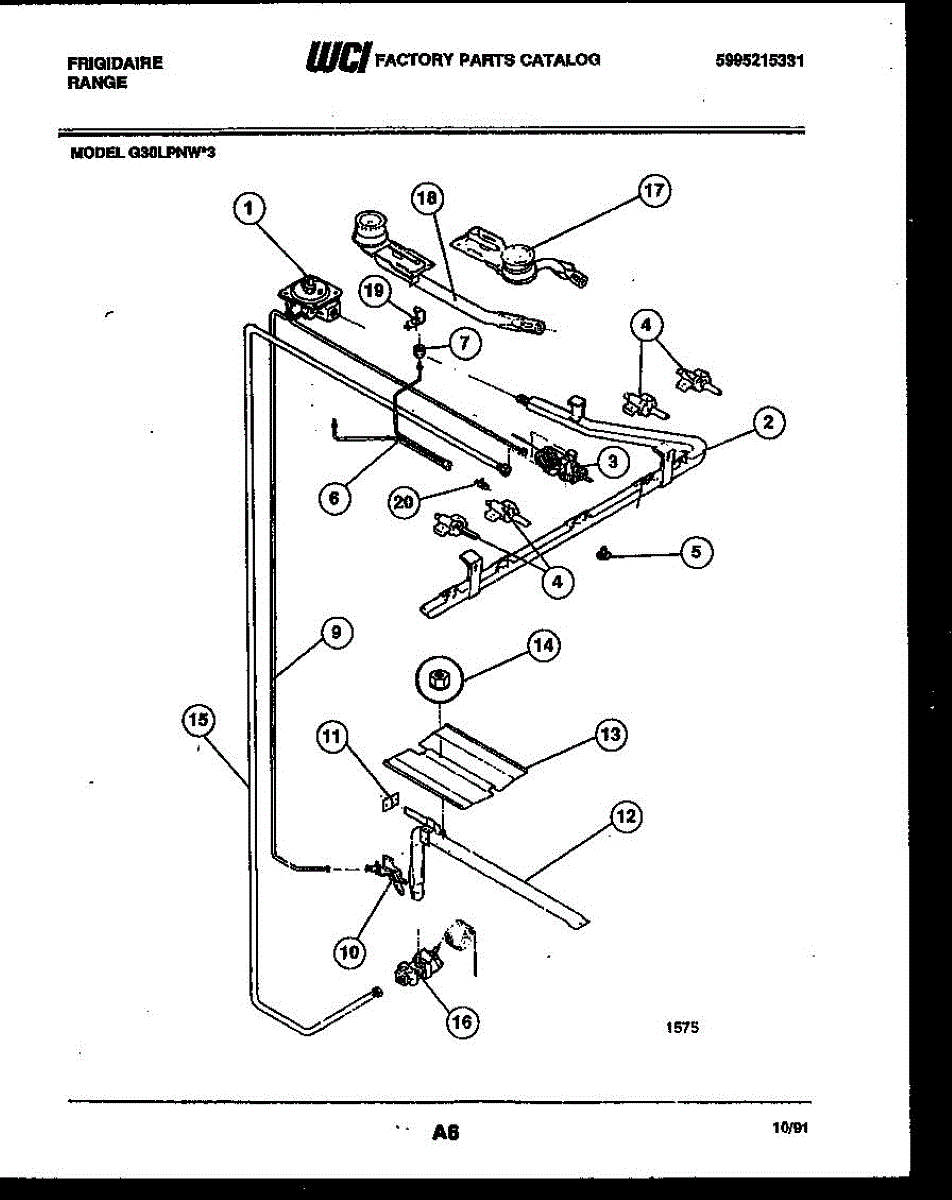

Parts for Frigidaire G30LPNL3: 06 - Burner, Manifold And Gas Control Parts

This tubing is the OEM thermo/safet capillary line used with the temperature sensing/thermal safety assembly. It transfers temperature information to the control so the appliance can maintain proper temperature and protect components. What it does

• Carries temperature feedback from the sensing bulb to the thermostat/thermal safety device
• Allows the control to react to temperature changes and open/close circuits as designed
• A damaged or kinked tube can cause inaccurate temperature sensing or control faults
• Common symptom: temperature not regulated or unit cycling irregularly when sensing line is compromised

• One thermo/safet tubing

• Install only if tubing and fittings match the original; avoid sharp bends or kinks in the line
• Handle the sensing bulb and capillary gently to prevent damage
• Disconnect power before attempting service; follow all safety and grounding procedures

This tubing is the OEM thermo/safet capillary line used with the temperature sensing/thermal safety assembly. It transfers temperature information to the control so the appliance can maintain proper temperature and protect components. What it does

• Carries temperature feedback from the sensing bulb to the thermostat/thermal safety device
• Allows the control to react to temperature changes and open/close circuits as designed
• A damaged or kinked tube can cause inaccurate temperature sensing or control faults
• Common symptom: temperature not regulated or unit cycling irregularly when sensing line is compromised

• One thermo/safet tubing

• Install only if tubing and fittings match the original; avoid sharp bends or kinks in the line
• Handle the sensing bulb and capillary gently to prevent damage
• Disconnect power before attempting service; follow all safety and grounding procedures

The Top Burner is an OEM part for Frigidaire ranges. This burner is designed to provide a reliable flame for cooking on the stovetop. It ensures consistent heating and efficient cooking performance, fitting seamlessly into the design of your range.

Common causes of a bad burner include clogging from food spills, corrosion due to exposure to moisture, or physical damage from heavy cookware.

Symptoms of a bad top burner include:

• Uneven heating or inconsistent flame
• The burner not igniting properly
• Visible damage or corrosion on the burner
• A weak or flickering flame

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This surface burner mounts on the cooktop and directs gas to produce a steady, controllable flame. Replace a worn or clogged burner to restore fast ignition and consistent heat from your range's top burner positions.

• Mixes and distributes gas to create the surface cooking flame
• Works with the spark igniter/electrode for reliable lighting
• Helps maintain an even flame pattern and stable heat
• Symptoms can include weak or uneven flames, yellow tips, delayed ignition/repeated clicking, or a burner that won't light

• Disconnect power and shut off the gas supply before servicing
• Remove the grate and burner cap, then lift off the old burner; clean the mounting surface
• Align the new burner with the igniter/electrode and locator features; ensure it sits flat and centered
• Reassemble, restore gas/power, and test for proper ignition and a clean, stable flame
