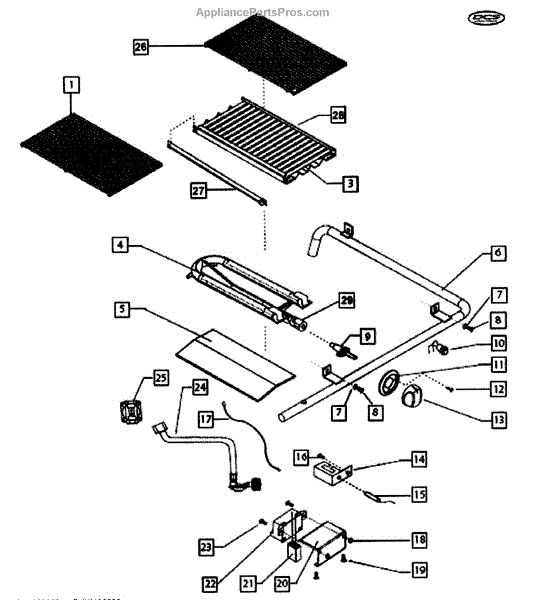

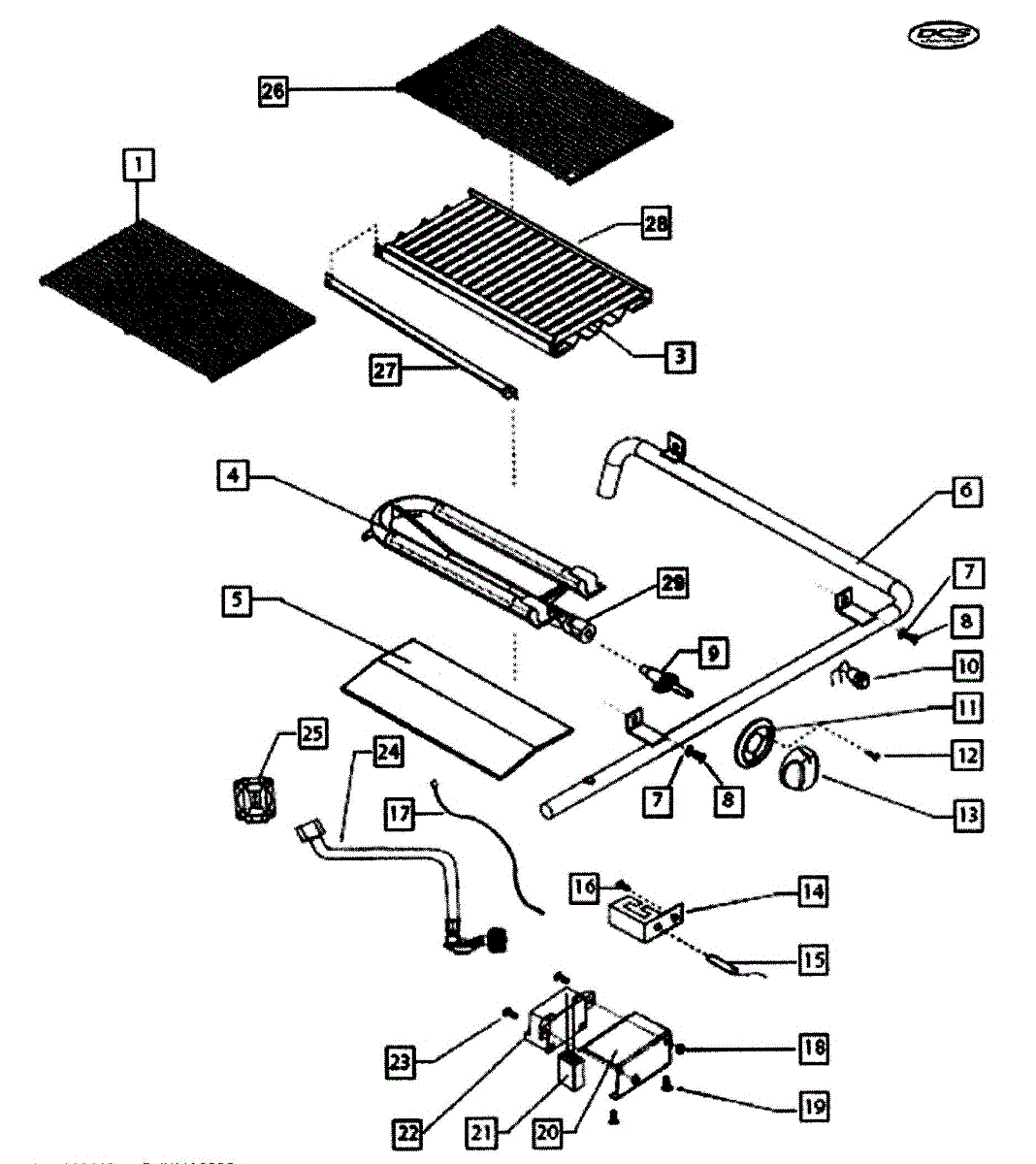

Parts for Dcs BGB30-BQRN-70004A: Burner Parts

This mounting bracket holds and positions the ignition electrode so the burner lights reliably. It provides a secure, heat-resistant support for the electrode to maintain consistent spark alignment and stable ignition. What it does:

• Secures the electrode in the correct position near the burner for reliable sparking
• Keeps the electrode stable during use to prevent misfires or intermittent ignition
• Helps maintain correct spark-to-flame distance, which supports proper ignition
• A damaged or loose bracket can cause ignition failure, clicking without lighting, or weak/uneven flames

• Disconnect power and shut off gas supply before inspecting or replacing the bracket
• Handle the electrode carefully to avoid bending or cracking; damage may affect ignition
• Verify correct bracket orientation and secure mounting hardware; do not overtighten

This is a pack of #10 x 3/8 inch Phillips truss-head screws with nickel plating for appliance fastenings. Use them to replace missing or corroded trim and panel screws and restore secure mounting and fit. What it does:

• Fastens trim, panels, brackets and light-duty components where #10 x 3/8 in screws are specified
• Truss head provides a larger bearing surface to reduce pull-through on thin materials
• Phillips drive offers easy, common-driver installation
• Nickel plating resists corrosion for longer-lasting fit in humid areas
• Replacing worn or missing screws can stop rattling, loose panels, and misaligned parts

• Ten #10 x 3/8 in Phillips truss-head nickel-plated screws

• Use the correct-sized Phillips driver to avoid cam-out and damaged heads
• Tighten until snug—do not overtighten to prevent stripping or distorting thin panels
• Disconnect power and remove any panels per appliance instructions before servicing
• Wear safety glasses and keep small parts away from children and pets

Grill won't light or igniter clicking but no spark? This battery ignition module controls the spark generation system. Direct replacement part.

This radiant assembly is the replacement heat shield/radiant used under the broil/burner area to help direct heat for even cooking and protect the burner from drips. It restores proper heat distribution and helps prevent burner clogging from falling debris. What it does

• Directs and reflects heat from the broiler/burner for more even browning and cooking
• Protects the burner/burner orifice from grease, drips and food debris
• Helps restore normal flame pattern when a damaged or warped radiant is present
• Fits into the assembly area beneath the broil/burner where the original radiant sits

• One radiant assembly

• Disconnect power and gas before starting any service
• Allow appliance to cool completely; radiant surfaces can be sharp—wear work gloves
• Remove oven racks and follow OEM disassembly steps to access the broil/burner area
