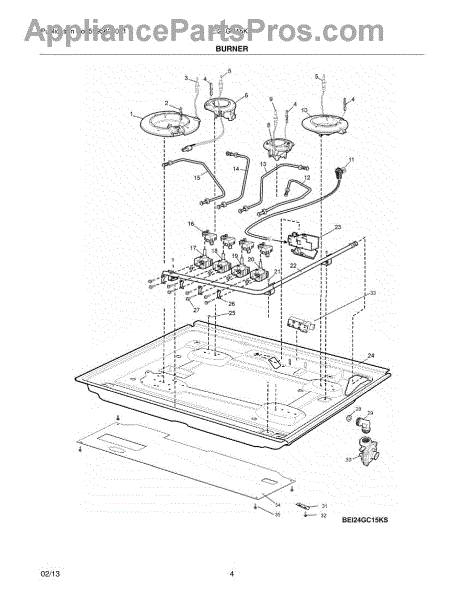

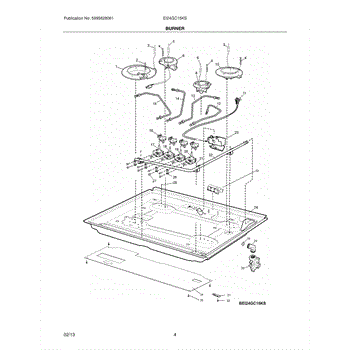

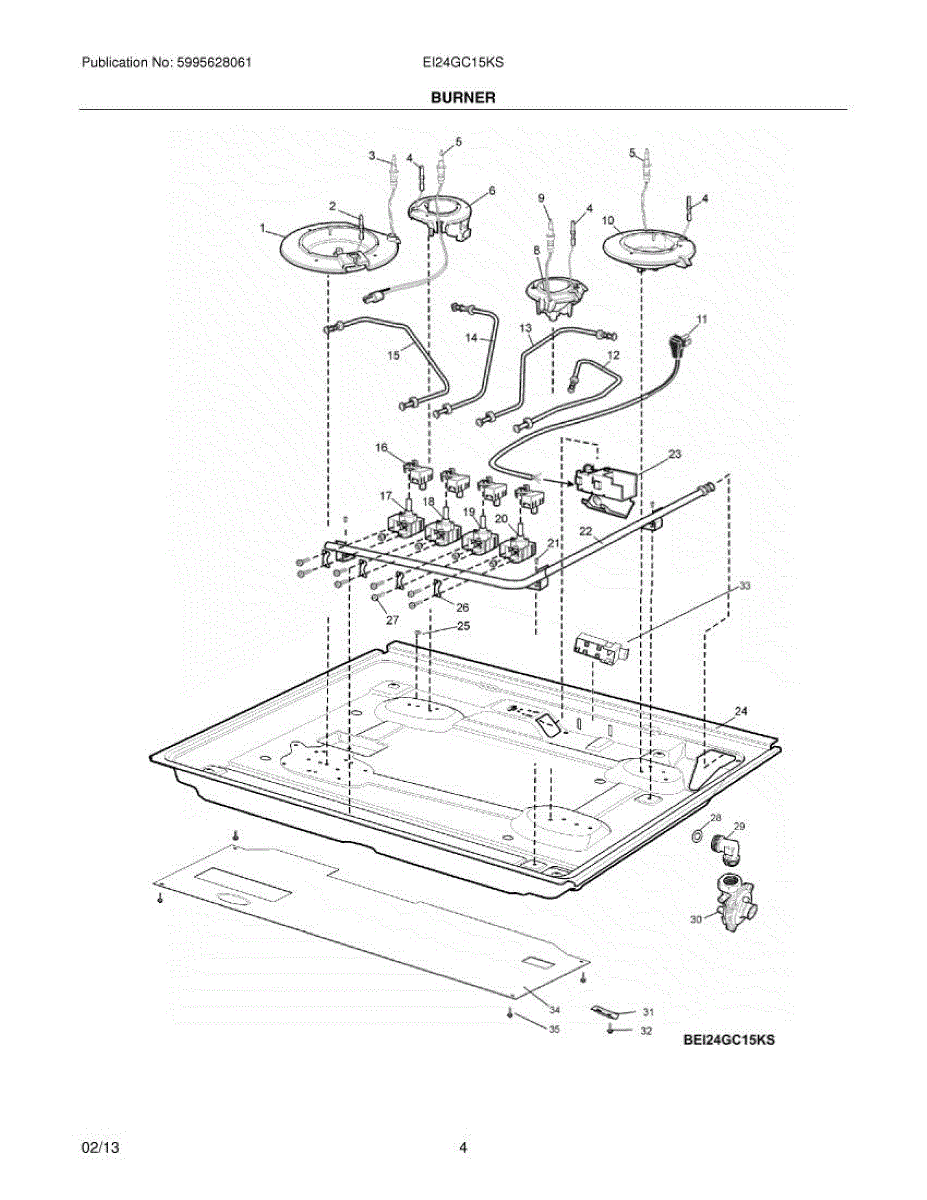

Parts for Electrolux EI24GC15KS: 05 - Burner Parts

This spark ignitor is the electrode that produces the high-voltage spark to ignite gas burners on ranges and ovens. Replacing a faulty ignitor restores reliable ignition and stops burners from failing to light. What it does:

• Generates the spark at each burner to ignite gas for cooktop or oven operation
• Commonly used when a burner clicks but will not light or when ignition is intermittent
• Helps eliminate continuous sparking caused by cracked, worn, or misaligned electrodes
• Works with the range's spark module and valve system to initiate burner ignition

• Before you start, unplug the appliance and shut off the gas supply
• Handle the ceramic insulator and electrode tip gently to avoid damage
• Ensure proper alignment and secure electrical connector; do not overtighten mounting hardware
• After installation, restore power and gas and test each burner for correct spark and ignition

This replacement tube routes water inside the refrigerator to the dispenser or ice maker so your appliance can fill and make ice properly. It restores proper water flow and prevents leaks from a damaged or cracked line. What it does:

• Directs water from the inlet to the ice maker or dispenser assembly
• Replaces cracked, split, or collapsed tubing that can cause leaks
• Helps restore normal water fill to the ice maker or dispenser when flow is restricted
• Prevents water pooling or dripping inside the cabinet when the original tube fails

• One replacement tube

• Turn off power and shut off the water supply before replacing the tube
• Inspect fittings and connectors for damage; replace seals if leaking
• Route the tube along the original path and secure any clamps or clips

This genuine replacement screw secures appliance panels, brackets, or trim. Use it to replace a missing, stripped, or rusted fastener and restore a tight, rattle-free fit so components stay properly aligned during operation.

• Holds panels, brackets, or trim securely in place
• Replaces damaged, rusted, or missing hardware
• Helps resolve loose or rattling panels and misalignment
• Maintains proper assembly and stability during use

• Disconnect power; for gas appliances, also shut off the gas supply
• Start threads by hand to avoid cross-threading; use the correct driver
• Do not overtighten to prevent stripping threads or damaging panels
• Repair or replace the mating clip/insert before installation

This flat washer secures fasteners and helps distribute load to prevent damage to appliance components. A small but important hardware piece that keeps assemblies aligned and tight for reliable operation. What it does:

• Provides a stable bearing surface for bolts and screws to reduce wear
• Helps prevent fasteners from loosening under vibration
• Protects mating surfaces from marring or deformation
• Used wherever a thin spacer or load-distribution plate is needed

• Turn off and unplug the appliance before accessing internal components
• Use appropriate-size fastener and torque to manufacturer specifications
• Inspect surrounding hardware and replace if worn or corroded

This gas regulator controls and maintains proper gas pressure to the oven or range burner for consistent ignition and steady flame performance. It helps the appliance run safely and reliably by regulating incoming fuel flow. What it does:

• Regulates gas pressure to the cooktop or oven burner for stable flame and even heating
• Helps prevent flame sputtering, weak burners, or inconsistent oven temperature that can result from improper pressure
• Works with the appliance's safety valves and burners to support reliable ignition
• Designed for direct replacement of the factory regulator to restore correct fuel flow

• One gas regulator

• Turn off the gas supply and unplug the appliance before starting any work; follow local codes for gas work
• Install only if the regulator is confirmed faulty; check gas connections and supply line for leaks after installation
• Use proper fittings and thread sealant rated for gas; tightness should be to manufacturer torque—do not overtighten

The Spark Module is an OEM part for Frigidaire ranges and cooktops, designed to generate and control the ignition spark for the burners. This component ensures that each burner lights reliably and safely when the control knob is turned to the ignite position. By producing a high-voltage electrical spark, the spark module ignites the gas released by the burner, allowing for the cooking process to begin. It's a key part of the appliance's operation, ensuring both performance and safety.

The causes behind these issues can often be traced back to a malfunction within the spark module itself, which may result from normal wear and tear, moisture exposure, or electrical surges. A faulty spark module can lead to inefficient burner operation, potentially causing gas leaks or preventing the appliance from being used for cooking.

Symptoms of a failing Spark Module include:

• Burners not igniting when the control knob is turned
• Intermittent ignition or failure to maintain a flame
• Continuous sparking when the burner is on or off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
