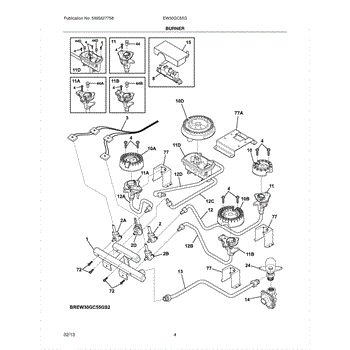

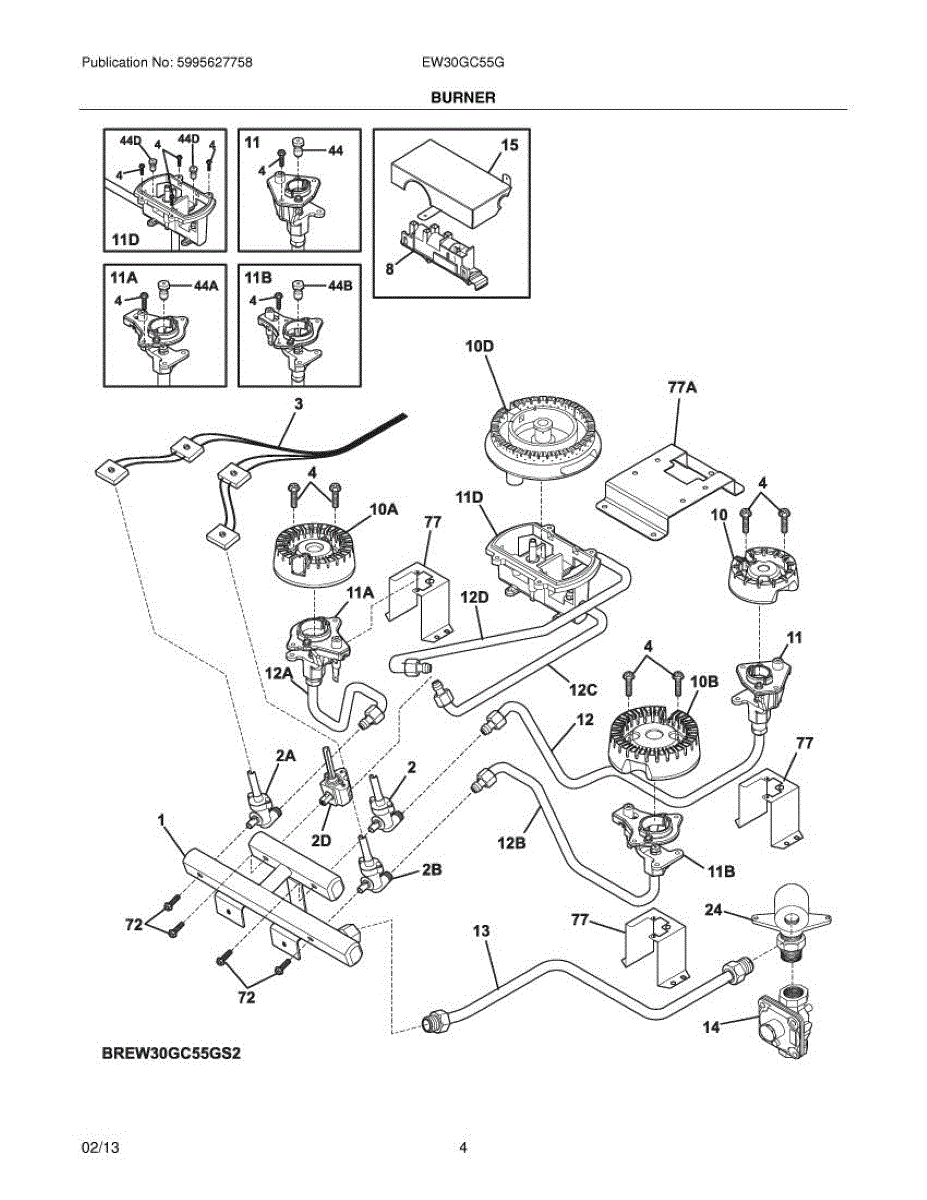

Parts for Electrolux EW30GC55GS3: 05 - Burner Parts

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

This assembly combines the spark igniter electrode with the orifice holder for a gas surface burner. It restores dependable ignition and proper gas delivery so the burner lights quickly and consistently.

• Provides the spark to ignite the surface burner
• Routes gas from the valve through the orifice holder to the burner head
• Typical symptoms: burner won't light, clicks but no flame, intermittent ignition, or cracked/chipped igniter insulator
• Replacing a damaged assembly restores reliable ignition at that burner

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner head; lift the top or access panel as your model requires
• Disconnect the spark wire, unfasten the old assembly, mount the new one, and reconnect the wire
• Restore gas and power, then check connections for leaks with an approved solution and test ignition

This ignitor and orifice assembly provides the ignition source and gas orifice for a gas oven or range burner, restoring reliable ignition for cooking. Replaces a worn or damaged ignitor/orifice to help the burner light correctly. What it does:

• Supplies the ignition element and properly sized orifice so the burner can light and maintain a stable flame.
• Replaces burned-out or cracked ignitors that cause slow or no ignition.
• Replaces clogged or damaged orifices that can cause weak or uneven flames.
• Common symptoms it can address: burner won't light, repeated clicking with no ignition, or a weak/uneven flame.

• Turn off the appliance power and shut off the gas supply before servicing.
• Handle the ignitor carefully—the ceramic/sensing tip is brittle and can break if dropped or bumped.
• Disconnect electrical connectors and note wire positions before removal; reconnect exactly as found.

This gas regulator controls and maintains proper gas pressure to the oven or range burner for consistent ignition and steady flame performance. It helps the appliance run safely and reliably by regulating incoming fuel flow. What it does:

• Regulates gas pressure to the cooktop or oven burner for stable flame and even heating
• Helps prevent flame sputtering, weak burners, or inconsistent oven temperature that can result from improper pressure
• Works with the appliance's safety valves and burners to support reliable ignition
• Designed for direct replacement of the factory regulator to restore correct fuel flow

• One gas regulator

• Turn off the gas supply and unplug the appliance before starting any work; follow local codes for gas work
• Install only if the regulator is confirmed faulty; check gas connections and supply line for leaks after installation
• Use proper fittings and thread sealant rated for gas; tightness should be to manufacturer torque—do not overtighten

The Burner Orifice is an OEM part for Frigidaire ranges. This part regulates the flow of gas to the burners, ensuring proper combustion and heat output.

Causes of a bad burner orifice can include clogging from debris or food particles, corrosion or damage to the orifice opening, or improper installation or misalignment.

Symptoms of a bad burner orifice include:

• Uneven or flickering flames on the burners
• Yellow or orange-colored flames instead of a steady blue flame
• Burners producing excessive noise or popping sounds
• Difficulty in igniting the burners or keeping them lit
• Inconsistent heat output or hot and cold spots on the cooking surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This mounting bracket provides a secure attachment point for internal panels and components, restoring proper alignment and stability for your appliance. It helps keep parts firmly in place so doors and panels operate quietly and smoothly. What it does:

• Secures internal panels, trim, or assemblies to the appliance chassis
• Prevents movement that can cause rubbing, rattling, or misalignment
• Restores proper fit where a bent, broken, or missing bracket allowed gaps
• Supports fasteners and helps maintain correct spacing between parts

• Disconnect power before any repair to avoid electrical shock
• Remove any necessary panels or trim to access the mounting location
• Use basic hand tools; retain original fasteners unless replacement fasteners are specified
• Inspect surrounding parts for damage and bracket orientation before tightening

Specs: 10-32 X 0.375

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
