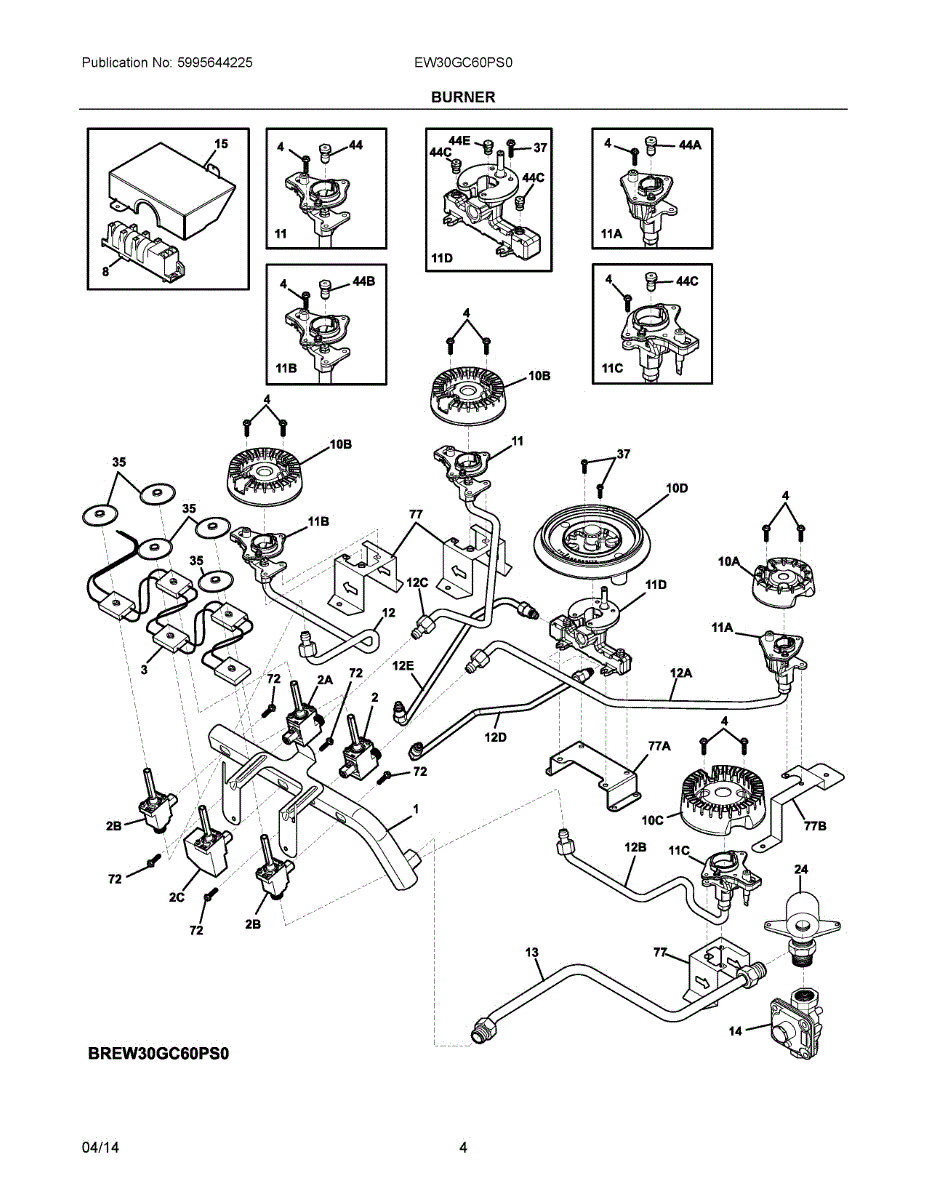

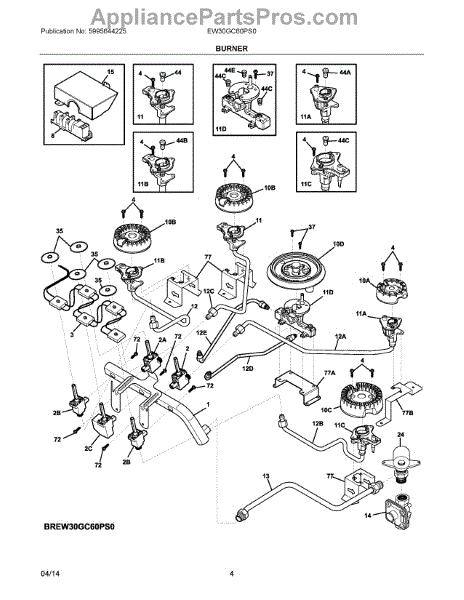

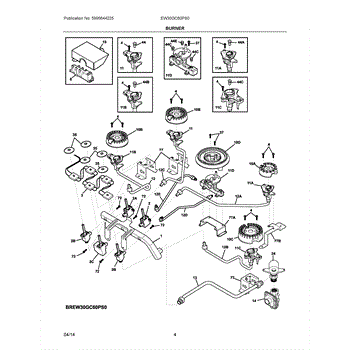

Parts for Electrolux EW30GC60PS0: 03 - Burner Parts

This manifold assembly routes and distributes supply to key appliance components, restoring the original flow paths and mounting points for a proper fit. It's a direct-replacement service part used during repairs. What it does

• Directs supply from the main inlet to multiple internal ports so components receive the correct feed
• Maintains proper alignment and sealing at connection points to prevent leaks
• Restores factory mounting and hose/tube routing for secure fitment
• Replaces cracked, corroded, or damaged manifolds that can cause leaks or loss of function

• One manifold assembly as shown

• Recommended for experienced DIYers familiar with your appliance
• Shut off power and supply (water/gas) before beginning work and relieve any pressure in lines
• Inspect seals, gaskets, and fittings and replace as needed to ensure a leak-free installation
• Tighten fittings to manufacturer torque specs and test for leaks before returning the appliance to service

This is a gas burner valve that controls the flow of gas to an individual cooktop burner rated at 17,000 BTU. It connects to the gas supply line and is operated by the corresponding surface control knob. Replace this valve if the burner won't ignite, the flame is uneven or won't adjust properly, or you detect a gas smell near the cooktop when the knob is in the off position.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Fixes weak ignition, uneven flames, or burners that won't light properly. This surface burner kit restores consistent heat and cooking performance.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Oven burner won't light or ignites slowly? This ignitor orifice assembly restores proper gas flow and spark alignment for consistent ignition.

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

This replacement water inlet tube routes water from the supply to the refrigerator's dispenser and ice-making components, restoring proper water flow and helping stop leaks or reduced water delivery. What it does:

• Directs incoming water from the household supply line to internal water system components.
• Replaces cracked, split, or clogged tubing that can cause leaks or pooling under/behind the refrigerator.
• Restores normal water flow to the dispenser and ice maker when flow is reduced or intermittent.
• Helps prevent contamination and water damage by providing an intact, leak-free path.

• Turn off water supply and disconnect power before beginning work.
• Use basic hand tools; avoid kinking the tube during installation.
• Inspect O-rings or clamps; replace worn seals if present.
• After installation, restore water and power, then check thoroughly for leaks.

Gas supply tube for cooktop burner assembly. Replaces damaged, cracked, or corroded tubing in gas cooktops. Essential structural component for safe operation.

This gas regulator controls fuel pressure to the oven/range burner for steady ignition and consistent heat. Replaces a worn or faulty regulator to help restore proper gas flow and reliable burner operation. What it does:

• Regulates incoming gas pressure to the range/oven burner system
• Helps maintain consistent flame for even cooking and steady ignition
• Can resolve symptoms like weak or uneven flames, burner ignition problems, or loss of heat
• Works as the pressure-control component in the appliance's gas supply path

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate fittings and gas-rated sealant; check all connections for leaks after installation
• Do not operate the appliance if you detect the smell of gas; ventilate.

Elbow fitting for cooktop gas supply lines. Replaces cracked, damaged, or missing elbow connectors that attach gas tubing at angled joints.

Replace worn cooktop shaft bushings to reduce friction and restore smooth operation. This sleeve supports rotating components for quiet performance. Confirm fit with your model number.

Gas burner orifice for cooktop and range burner assemblies. Replaces worn, damaged, or incorrectly sized orifices to ensure proper gas flow.

Natural gas burner orifice meters gas flow to range burners. Replace worn or clogged orifices for stable flame. Used for LP to natural gas conversions.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.
