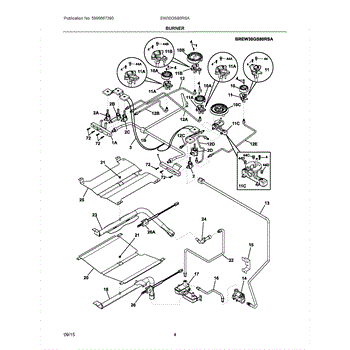

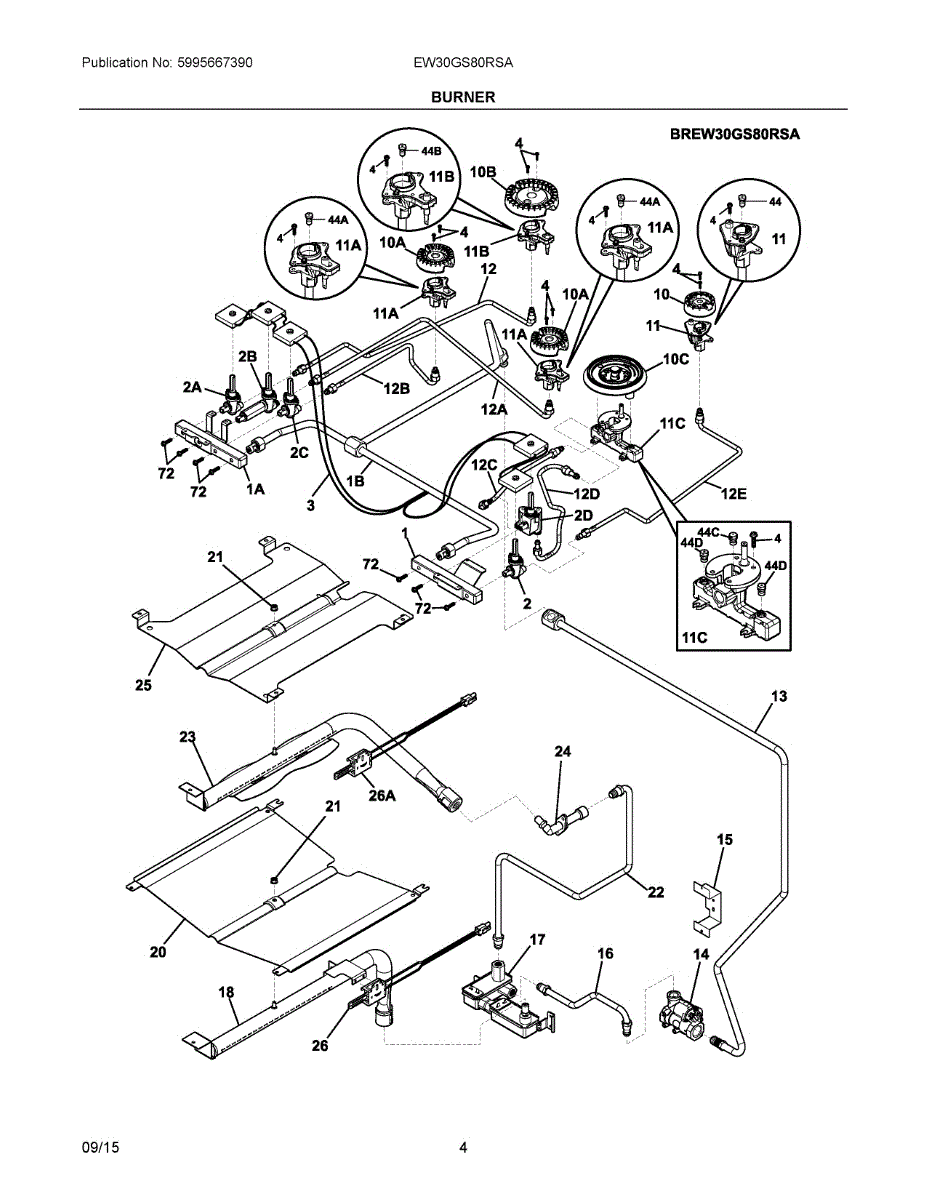

Parts for Electrolux EW30GS80RSA: 03 - Burner Parts

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner assembly replaces a single surface burner on compatible gas ranges, restoring reliable heat for cooking. It provides the burner base, orifice support and connections needed to produce a steady flame when operating correctly. What it does:

• Holds and directs gas to the cooktop burner for ignition and steady flame
• Replaces worn or damaged burner hardware that can cause weak, uneven, or no flame
• Restores proper spacing and support for burner caps and grates
• Helps resolve ignition and heating issues when the burner component is the cause

• Disconnect the appliance from power and shut off gas supply before beginning work
• Basic hand tools typically required; some installations may require removing cooktop components
• Inspect seals and fittings for damage and replace if necessary to prevent leaks

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner replaces a worn or damaged unit on your range to restore reliable, even heat. Swap it in to correct poor performance caused by cracks, corrosion, or blockages so cooking results return to normal.

• Provides the heat source for a cooking zone on the range
• Common fix for damage, warping, or clogged ports/passages
• Symptoms include won't light/heat, weak or uneven heating, or irregular/yellow flame on gas models
• Visible rust, cracks, or deformation indicate replacement is needed

• Disconnect power; for gas models, also shut off the gas supply. Allow the appliance to cool completely
• Remove grate/cap or unplug element as applicable; take out screws/retainers to lift off the old burner
• Transfer reusable items from the original part (such as cap, electrode/igniter, and screws) if required by your model
• Align correctly and tighten fasteners evenly; restore utilities and test for proper operation

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

A replacement ignitor orifice assembly that delivers the correct gas flow and reliable spark alignment so your oven burner lights consistently. Restores normal ignition and helps maintain stable burner performance. What it does:

• Directs gas to the oven burner while positioning the ignitor for proper ignition
• Helps restore consistent lighting when burners fail to ignite or ignite intermittently
• Can correct weak or uneven oven burner flames related to orifice/ignitor alignment
• Works as the original-style assembly designed to fit the factory mounting and connections

• Shut off power and gas supply before starting work; follow all safety procedures
• Use proper tools and avoid forcing fittings;
• After installation, check for gas leaks and proper ignition in a well-ventilated area

This assembly combines the spark igniter electrode with the orifice holder for a gas surface burner. It restores dependable ignition and proper gas delivery so the burner lights quickly and consistently.

• Provides the spark to ignite the surface burner
• Routes gas from the valve through the orifice holder to the burner head
• Typical symptoms: burner won't light, clicks but no flame, intermittent ignition, or cracked/chipped igniter insulator
• Replacing a damaged assembly restores reliable ignition at that burner

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner head; lift the top or access panel as your model requires
• Disconnect the spark wire, unfasten the old assembly, mount the new one, and reconnect the wire
• Restore gas and power, then check connections for leaks with an approved solution and test ignition

This ignitor and orifice assembly provides the ignition source and gas orifice for a gas oven or range burner, restoring reliable ignition for cooking. Replaces a worn or damaged ignitor/orifice to help the burner light correctly. What it does:

• Supplies the ignition element and properly sized orifice so the burner can light and maintain a stable flame.
• Replaces burned-out or cracked ignitors that cause slow or no ignition.
• Replaces clogged or damaged orifices that can cause weak or uneven flames.
• Common symptoms it can address: burner won't light, repeated clicking with no ignition, or a weak/uneven flame.

• Turn off the appliance power and shut off the gas supply before servicing.
• Handle the ignitor carefully—the ceramic/sensing tip is brittle and can break if dropped or bumped.
• Disconnect electrical connectors and note wire positions before removal; reconnect exactly as found.

The Regulator is an OEM replacement part for Frigidaire gas ranges and cooktops. It is a valve component that regulates gas flow from the supply line into the appliance burners. Carefully controlling fuel input maintains proper and safe burner flame sizes.

Symptoms of a bad regulator include:

• Burners producing uneven or excessively high flames
• Inability to reduce burner flames properly
• Gas leaks at the regulator connections

Causes of failure involve wear of internal sealing parts over extended use. Corrosion or debris clogging gas passages can also disrupt flow regulation.

This OEM Frigidaire replacement regulator ensures optimal and reliable burner performance. Compatible with some Amana, Electrolux, and KitchenAid models as well, regular replacements prevent dangerous gas line issues from developing.

The Valve is an OEM replacement part for Frigidaire ranges. Located along the gas line leading to the oven burners, it regulates gas flow and controls burner ignitions. Proper valve function is critical for safe and efficient cooking performance.

Causes of a bad valve can include wear from prolonged use, corrosion or clogging of small internal passages over many years. Damage may also occur if exposed to extreme heat or sudden temperature changes.

Symptoms include:

• Inconsistent or intermittent burner ignition
• Flames that fluctuate in size or temperature
• Gas leaks around connections that develop
• Failure of the oven or burners to ignite properly

Compatible models include Electrolux, Gibson, and select Kenmore ranges.

This replacement surface burner restores stovetop heating for electric ranges, providing a direct, reliable heat source for pots and pans. Designed to match the original element shape and fit for a straightforward swap. What it does:

• Heats cookware on the cooktop so you can boil, simmer, and sauté
• Replaces a cracked, warped, or non-heating burner element
• Addresses symptoms such as little or no heat, intermittent heating, or uneven hot spots
• Works with the existing burner receptacle and cooktop cutout when the correct element is used

• One round surface burner element

• Disconnect power to the range before servicing to avoid electrical shock
• Remove the cooktop or lift the burner assembly per your model's service instructions
• Align and seat the element into the socket, then secure any mounting clips or screws as originally installed

The Broil Igniter is an OEM part for Frigidaire gas ranges. It is the component responsible for igniting the broil burner located at the top of the oven cavity.

Without a functioning igniter, the broiler cannot be used to cook or brown food directly under the heating element. Over extended use at high broiler temperatures, igniters can degrade and crack rendering them unable to create the required electric spark.

Causes for replacement include standard wear over time or impact damage occurring during cleaning that compromises the integrity of the igniter.

Symptoms of a bad broil igniter are:

• Inability to light or reignite the broiler burners
• Error codes or messages related to ignition issues
• Broiler component that looks dark, worn, or broken

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Ignitor is an OEM replacement part for Frigidaire gas ranges. Located near the burner heads, this component is responsible for generating the electric spark required to light stove top burners.

Symptoms of a faulty ignitor include:

• Burners that will not light or only light intermittently
• Clicking noises but no flame ignition
• Diminished or no spark from the ignitor itself

Causes of ignitor failure can be an accumulation of deposits over many heating cycles. Physical damage from pots/pans is also possible. As electrical parts, ignitors have a limited lifespan depending on range usage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A fixed natural gas orifice that meters fuel to a cooktop or oven burner to help maintain the correct flame size for reliable ignition and consistent heating. Replaces a worn or damaged natural-gas orifice to restore normal burner performance. What it does:

• Regulates the flow of natural gas to a burner for proper flame shape and heat output.
• Helps address weak, uneven, or low flames and burners that take longer to reach set temperature.
• Works at the burner valve/orifice holder to maintain steady ignition and cooking performance.
• Intended for natural gas systems only—use LP/propane orifices only when a verified conversion has been performed.

• Before servicing, shut off the gas supply and electrical power to the appliance.
• Replace only with the correct OEM or equivalent orifice size; do not force or overtighten.
• After installation, check all connections for leaks.

This natural gas burner orifice meters gas flow to a specific burner on your range, delivering the correct flame size and heat output. Replace a worn or clogged orifice to restore stable, efficient burner performance. What it does:

• Meters natural gas to match the assigned burner's BTU rating and flame height
• Helps produce a steady blue flame and even heating when the correct orifice is installed
• Helps with weak/uneven flame, yellow tipping/soot, or delayed ignition if the orifice is blocked or damaged
• Fuel-specific component designed for natural gas systems

• One natural gas orifice

• Shut off gas supply and disconnect power before servicing
• Replace like-for-like; the stamped size/marking matches the burner position and fuel type—do not drill or modify
• Use an appropriate wrench and tighten snugly without overtightening
• Restore gas and leak-test with a soap solution; proper flame.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This wiring harness routes power and control signals between appliance components to restore electrical connectivity and reliable operation. It replaces a damaged or faulty connector assembly to help address intermittent power or control issues. What it does:

• Connects control board, switches, and motors with factory-style terminals for secure signal and power transfer
• Restores lost or intermittent electrical connections that can cause controls, displays, or motors to fail
• Prevents arcing and shorts by replacing frayed, burned, or corroded wiring and connectors
• Maintains correct wire routing and connector fit to preserve original appliance operation

• Always disconnect power at the breaker or unplug the appliance before starting work
• Compare the new harness to the old one to ensure connector types and lengths match before installing
• Route and secure wiring as originally installed; avoid pinching or contact with hot surfaces

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for safe, reliable operation. What it does:

• Secures panels, brackets, and trim to prevent rattling or loosening
• Restores proper fit where a damaged or missing screw caused gaps or movement
• Helps maintain component alignment for smooth operation
• Simple hardware replacement that supports overall appliance stability

• Disconnect power and gas before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Keep small parts away from children and dispose of old fasteners responsibly

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
