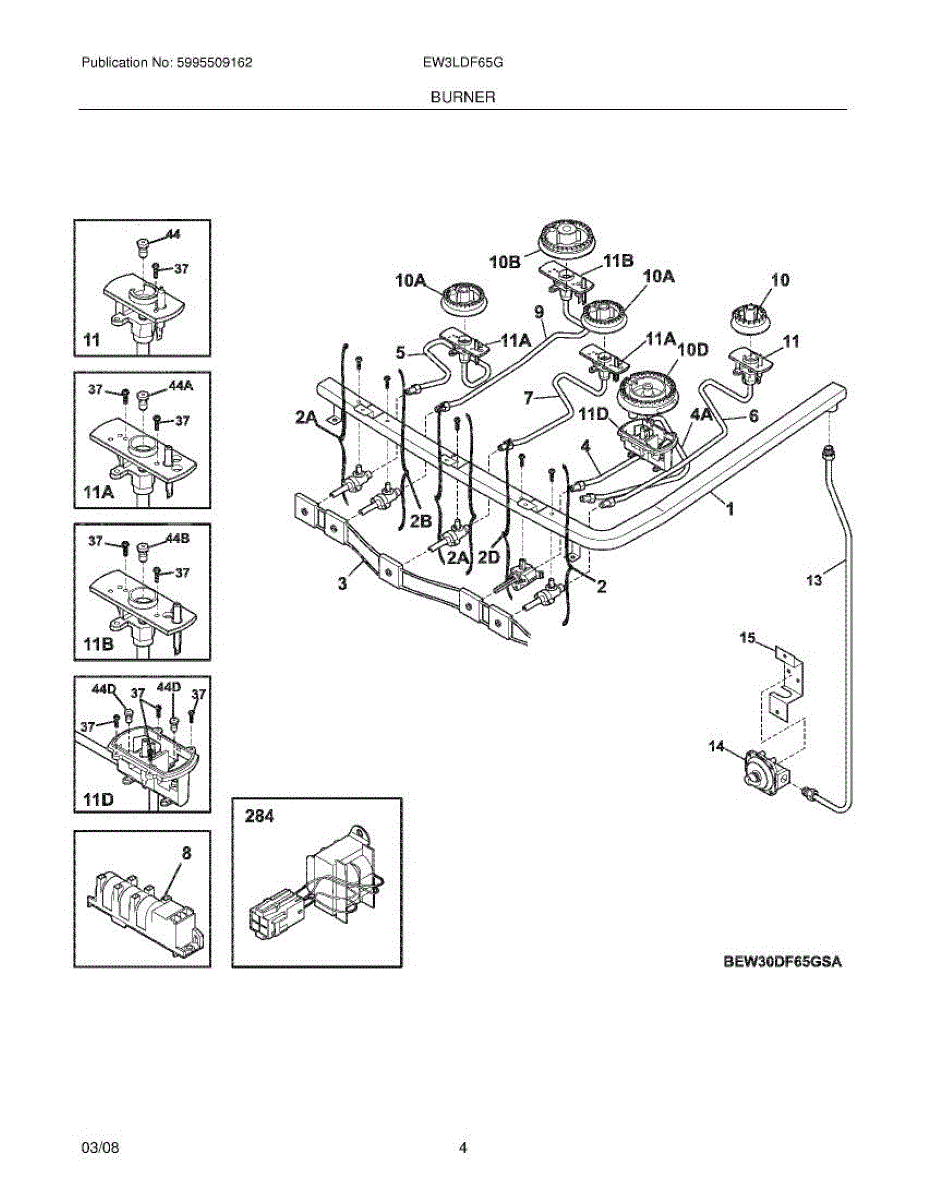

Parts for Electrolux EW3LDF65GBA: 05 - Burner Parts

Gas manifold assembly for ranges. Distributes gas to burners. Replace if cracked, leaking, or damaged. Includes connection points for burner valves.

Replace a damaged or worn wire harness assembly in your range. This internal wiring component connects electrical systems. Needed when wires are frayed or broken.

Gas supply tube for range burners. Installs between the manifold and burner valve. Replace if cracked, corroded, or leaking to restore safe gas flow.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Directs and meters gas to the oven burner while providing the ignition pathway. Replace this assembly if worn, damaged, or cracked to restore burner function.

Replaces the ignitor orifice assembly for your range oven burner. Order a new assembly when the original is cracked, corroded, or damaged.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating an

Replace a worn, clogged, or missing gas burner orifice on your range. This part regulates gas flow to the burner and installs in the burner assembly.

Replace a worn, cracked, or missing range burner orifice. This small brass fitting controls gas flow to the burner and installs in the manifold assembly.

Replacement gas burner orifice for ranges and cooktops. Meters fuel flow to the burner. Replace if worn, clogged, or damaged to restore proper fit.

Gas burner orifice for ranges. Regulates gas flow to the burner. Replace if damaged, clogged, or incorrectly sized for your fuel type conversion.

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

This replacement shield is a molded protective cover that helps keep appliance wiring and internal components safe from heat, moisture and accidental contact. It restores the appliance's original protection and helps maintain reliable operation. What it does:

• Covers and protects wiring, terminals or control components from debris and direct heat
• Prevents accidental contact with live parts during normal use
• Helps reduce the risk of shorting or damage from loose debris
• Restores the appliance's factory shielding to reduce noise from vibrating parts

• One replacement shield

• Disconnect power before servicing to avoid shock risk
• Handle carefully; edges may be sharp and clips or tabs can be brittle on older units
• Retain and reuse factory fasteners when possible; replace broken clips with OEM parts
• Verify proper alignment and secure fit so the shield does not contact moving parts

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas val

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
