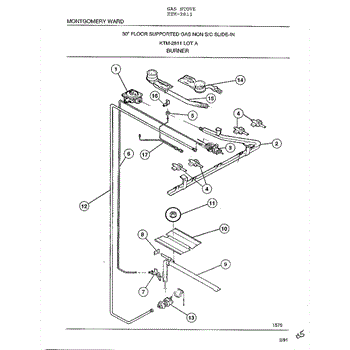

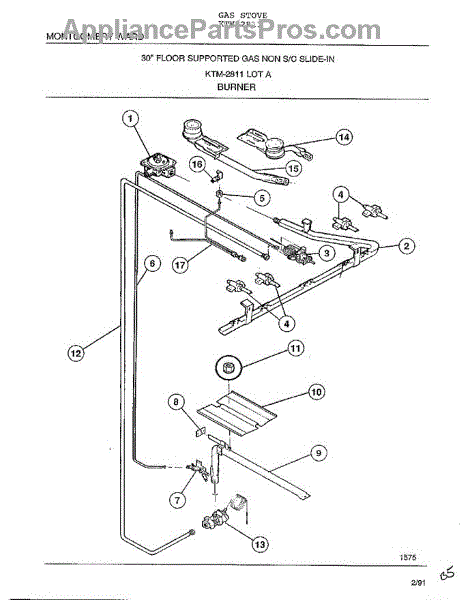

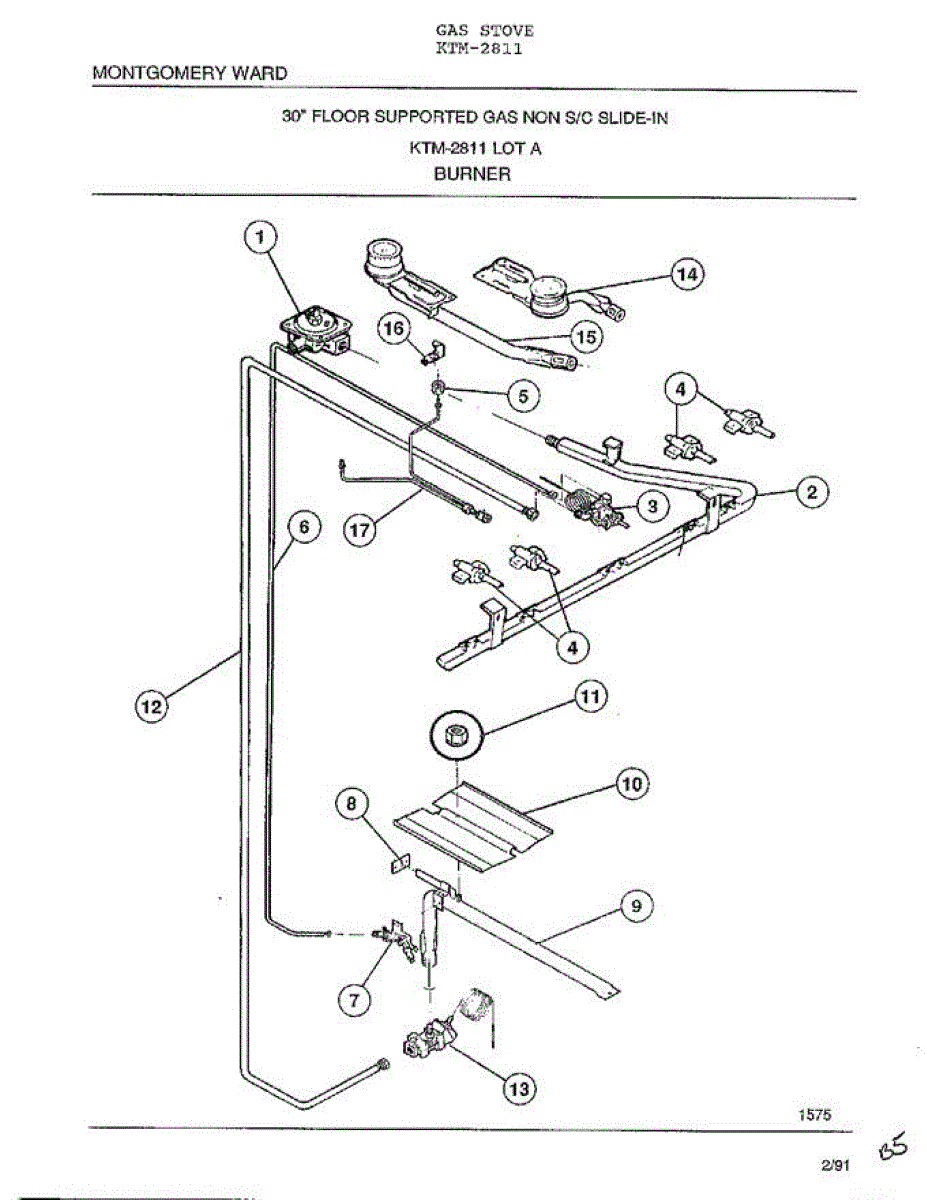

Parts for Frigidaire 2811: Burner Parts

This tubing is the OEM thermo/safet capillary line used with the temperature sensing/thermal safety assembly. It transfers temperature information to the control so the appliance can maintain proper temperature and protect components. What it does

• Carries temperature feedback from the sensing bulb to the thermostat/thermal safety device
• Allows the control to react to temperature changes and open/close circuits as designed
• A damaged or kinked tube can cause inaccurate temperature sensing or control faults
• Common symptom: temperature not regulated or unit cycling irregularly when sensing line is compromised

• One thermo/safet tubing

• Install only if tubing and fittings match the original; avoid sharp bends or kinks in the line
• Handle the sensing bulb and capillary gently to prevent damage
• Disconnect power before attempting service; follow all safety and grounding procedures

This part has been discontinued and is no longer available.

The Top Burner is an OEM part for Frigidaire ranges. This burner is designed to provide a reliable flame for cooking on the stovetop. It ensures consistent heating and efficient cooking performance, fitting seamlessly into the design of your range.

Common causes of a bad burner include clogging from food spills, corrosion due to exposure to moisture, or physical damage from heavy cookware.

Symptoms of a bad top burner include:

• Uneven heating or inconsistent flame
• The burner not igniting properly
• Visible damage or corrosion on the burner
• A weak or flickering flame

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This surface burner mounts on the cooktop and directs gas to produce a steady, controllable flame. Replace a worn or clogged burner to restore fast ignition and consistent heat from your range's top burner positions.

• Mixes and distributes gas to create the surface cooking flame
• Works with the spark igniter/electrode for reliable lighting
• Helps maintain an even flame pattern and stable heat
• Symptoms can include weak or uneven flames, yellow tips, delayed ignition/repeated clicking, or a burner that won't light

• Disconnect power and shut off the gas supply before servicing
• Remove the grate and burner cap, then lift off the old burner; clean the mounting surface
• Align the new burner with the igniter/electrode and locator features; ensure it sits flat and centered
• Reassemble, restore gas/power, and test for proper ignition and a clean, stable flame
