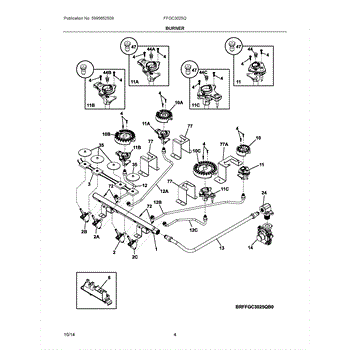

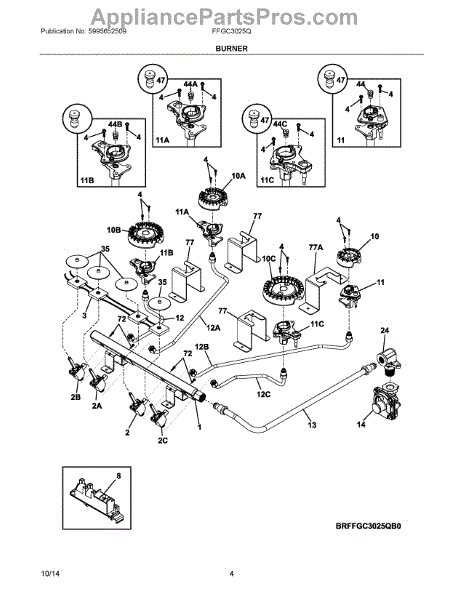

Parts for Frigidaire FFGC3025QBA: 03 - Burner Parts

This manifold assembly routes gas from the supply to the oven/range burner valves so burners light reliably. It replaces a damaged or leaking manifold to restore proper fuel distribution and safe operation. What it does

• Channels incoming gas to each burner valve so burners can ignite.
• Prevents gas leaks at the distribution point when seals and fittings are intact.
• Commonly used when one or more burners fail to light or exhibit low flame.
• Works with the cooktop's valve/burner system; does not include valves unless listed.

• Turn off the gas supply and electrical power before servicing.
• Inspect and replace any damaged gaskets, fittings, or mounting hardware during installation.
• Install only with correct fittings and follow local codes; use a gas-rated thread sealant where required.

This water inlet valve controls water flow to the refrigerator dispenser and ice maker, restoring proper dispensing and ice production. It replaces a failed or leaking valve to stop drips and ensure steady water fill. What it does:

• Opens and closes water supply to the dispenser and ice maker when activated
• Stops water flow to prevent leaks when the valve is closed
• Helps restore normal dispenser flow and consistent ice maker fills
• Commonly replaced for leaking, no water dispensed, or weak dispenser flow

• Disconnect power and shut off the water supply before starting any work
• Drain lines and have towels ready; valve replacements can release trapped water
• Basic hand tools required; avoid overtightening fittings to prevent damage

This top burner valve controls the gas flow to a single surface burner so your cooktop delivers adjustable flame and reliable heat. It replaces a failed valve to restore normal burner operation and safe ignition. What it does:

• Regulates gas flow to one surface/top burner for flame adjustment
• Helps fix symptoms like weak or no flame, inability to light, or inconsistent heat
• Works with the cooktop's ignition system to enable proper spark lighting
• Restores control when a worn or leaking valve prevents normal operation

• Shut off the gas supply and power to the appliance before starting any work
• Only replace with the exact part number; check fit with your model's parts diagram
• Check all connections and test for leaks after installation using a non-flammable leak detector solution

This water inlet valve controls water flow to the appliance, restoring normal filling for the dispenser and ice maker. It replaces a failed valve to stop leaks and resume steady water delivery. What it does

• Opens and closes to allow water into the ice maker or dispenser when signaled
• Commonly used when the ice maker won't fill or the dispenser has weak/no water flow
• Can prevent continuous running or leaking if the valve sticks closed or open
• Works as a direct replacement for the appliance's original inlet valve assembly

• Disconnect power and shut off the water supply before starting work
• Verify the inlet and outlet hose connections and seals are tight after installation
• Handle with care to avoid damaging mounting tabs or solenoid wiring

This top burner gas valve controls and shuts off gas to a single surface burner so you can ignite and adjust flame height safely. Replace a worn valve to restore precise burner control and dependable lighting.

• Regulates gas flow to one surface burner for reliable ignition and flame adjustment
• Acts as the on/off shutoff for that burner via the control knob
• Helps when a burner won't light even though the igniter clicks
• Helps when flame won't adjust smoothly or the knob binds/feels stripped

• Disconnect power and shut off gas supply before servicing
• Remove knob and access the control/manifold area to reach the valve; note tubing and mounting orientation
• Transfer any model-specific brackets or fittings from the old valve if required
• After reassembly, check all connections with an approved gas leak-detection solution before restoring service and testing burner operation

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner replaces a worn or damaged unit on your range to restore reliable, even heat. Swap it in to correct poor performance caused by cracks, corrosion, or blockages so cooking results return to normal.

• Provides the heat source for a cooking zone on the range
• Common fix for damage, warping, or clogged ports/passages
• Symptoms include won't light/heat, weak or uneven heating, or irregular/yellow flame on gas models
• Visible rust, cracks, or deformation indicate replacement is needed

• Disconnect power; for gas models, also shut off the gas supply. Allow the appliance to cool completely
• Remove grate/cap or unplug element as applicable; take out screws/retainers to lift off the old burner
• Transfer reusable items from the original part (such as cap, electrode/igniter, and screws) if required by your model
• Align correctly and tighten fasteners evenly; restore utilities and test for proper operation

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly routes and meters gas to the oven burner so the ignitor can light the appliance reliably. Replaces a worn or damaged orifice assembly to help restore consistent ignition and safe burner operation. What it does:

• Controls gas flow to the oven burner so the ignitor can light the flame
• Helps ensure a steady, consistent ignition and proper burner operation
• Commonly replaced when ignition is slow, inconsistent, or the burner won't stay lit
• Matches OEM design for fit and function in compatible gas ranges

• One ignitor orifice assembly

• Turn off gas supply and unplug the appliance before starting work
• Follow the appliance manufacturer's service manual for proper removal and installation
• Use appropriate tools and avoid overtightening fittings to prevent leaks

This ignitor orifice assembly directs gas flow to the oven/burner igniter for reliable ignition and consistent flames. It replaces worn or clogged orifice parts to restore normal ignition performance. What it does:

• Regulates and channels gas to the igniter so the burner/oven will light
• Helps produce a steady, consistent flame for proper cooking temperatures
• Common repair when a burner or oven fails to ignite or has weak flame
• Prevents irregular ignition caused by damaged or blocked orifice passages

• One ignitor orifice assembly

• Turn off the appliance power and shut off the gas supply before starting
• Inspect fittings and seals for damage and test for leaks after installation (use approved leak-detection methods)
• Use appropriate tools and follow the appliance service manual for removal and reassembly

This ignitor orifice assembly replaces the oven's burner ignition component to help light the gas burner reliably and restore normal oven ignition. Designed to match OEM fit and function on compatible Frigidaire gas ovens. What it does:

• Provides the ignition pathway so the burner lights when the oven calls for heat
• Directs and meters gas at the burner ignition point for consistent ignition
• Addresses symptoms like the oven failing to light, delayed ignition, or intermittent ignition
• Works with the oven's safety and control systems to enable normal burner operation

• Shut off gas supply and electrical power before servicing; verify both are off
• Only install in gas ovens that use this specific assembly;

This ignitor orifice assembly replaces the spark electrode and matched gas orifice that lights the burner, restoring reliable ignition for gas ranges and ovens. Designed to align the spark with the burner for consistent lighting. What it does:

• Provides the spark electrode and precisely sized orifice that allow gas to ignite at the burner
• Re-establishes consistent ignition when a burner or oven fails to light
• Helps stop intermittent clicking or delayed ignition caused by a worn or misaligned ignitor
• Works with the burner to produce a steady, even flame when functioning properly

• Turn off the appliance power and shut off the gas supply before starting work
• Basic hand tools are typically required; handle the electrode carefully to avoid damage
• Ensure the assembly is seated and aligned exactly as the original to maintain correct spark gap

The Regulator is an OEM part for Frigidaire cooktops. It is responsible for regulating the flow and pressure of gas entering the appliance, ensuring safe and efficient operation.

A bad regulator can be caused by faulty internal components, wear and tear over time, or damage due to improper handling. Signs of a faulty regulator include uneven heating, weak flame, or gas leaks.

Symptoms of a bad regulator can include:

• Uneven heating of burners or oven
• Weak or inconsistent flame
• Gas leaks around the regulator

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This bushing is a small replacement sleeve that supports a rotating or sliding shaft, reducing friction and wear so moving refrigerator components operate smoothly and quietly. It restores proper alignment where the original bushing is worn or damaged. What it does:

• Acts as a low-friction bearing for a shaft or pin to reduce wear on metal parts
• Helps stop wobble, binding, or noise from worn pivot or slide points
• Maintains alignment for doors, drawers, or dispenser linkages that rely on a shaft
• Prevents metal-to-metal contact that can accelerate part failure

• One bushing

• Disconnect power to the appliance before starting work
• Remove panels or trim as needed to access the worn bushing and shaft
• Press or slide the new bushing into position; avoid forcing or deforming the part
• Reassemble panels and test the component for smooth operation before regular use

The LP Conversion Kit is an OEM part for Frigidaire gas ranges. This kit allows for the conversion of the range's fuel type from natural gas to LP (liquefied petroleum) gas. It ensures the safe and efficient operation of the gas range when using LP gas as the fuel source.

Causes of a bad LP conversion kit can include incorrect installation, missing components, or damaged parts.

Symptoms of an improper fuel conversion or a bad LP conversion kit may include:

• Uneven flame
• Improper heating
• Unusual gas smells

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp
