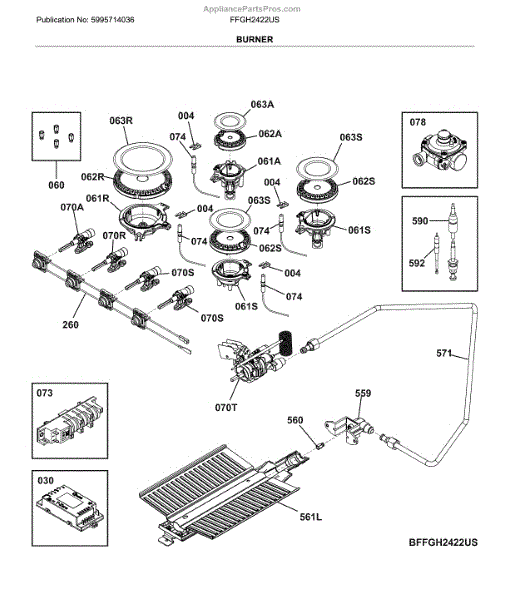

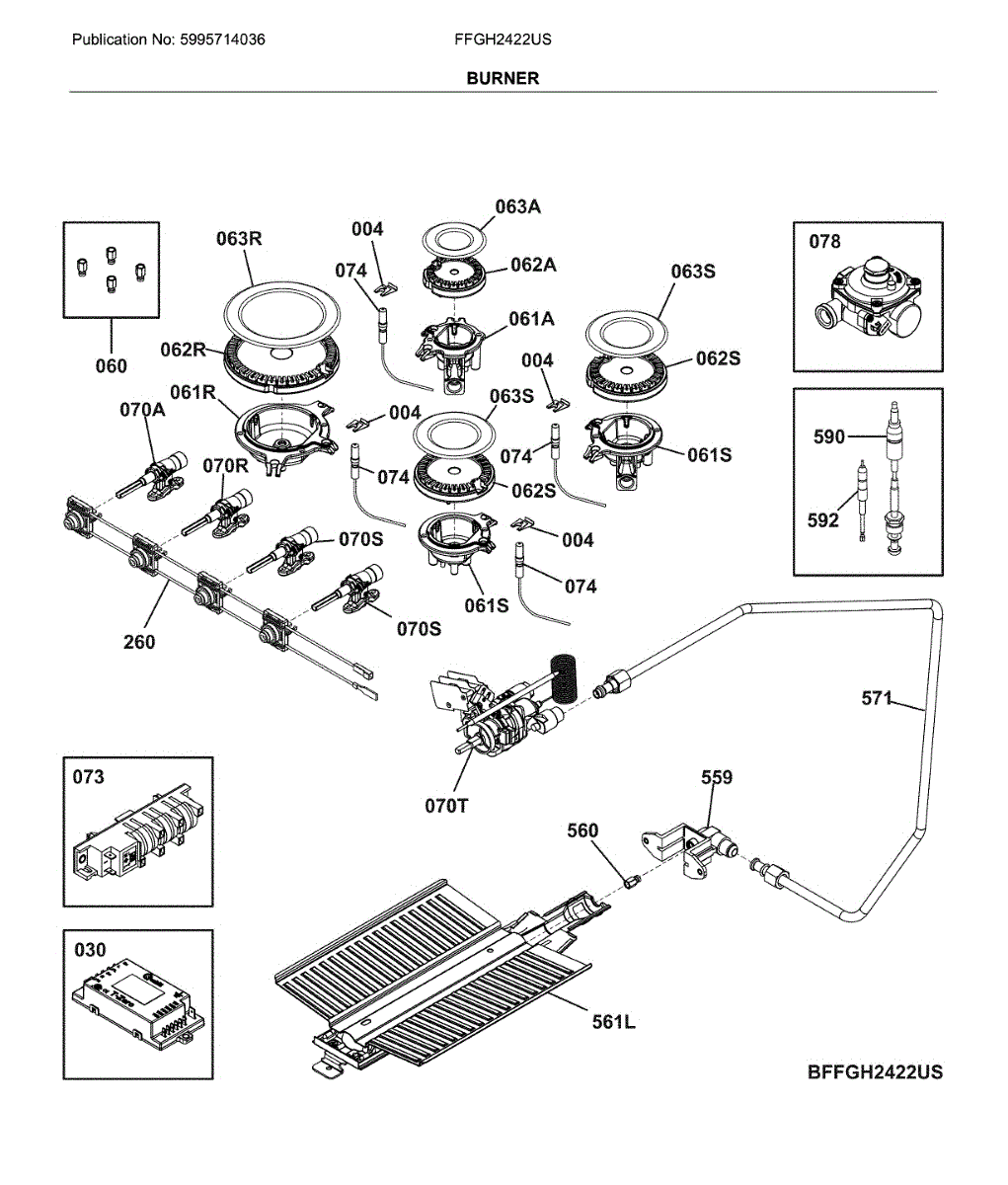

Parts for Frigidaire FFGH2422US: Burner Parts

This orifice set contains the gas burner orifices that meter fuel to a range/oven's burners, restoring proper flame size and heat output when orifices are worn, clogged, or need replacement. It's a direct-fit repair part for affected gas cooking appliances. What it does:

• Regulates gas flow to one or more burners to help maintain correct flame height and even cooking
• Replaces clogged, corroded or damaged orifices that can cause weak or uneven flames
• Helps resolve ignition problems tied to poor gas flow or burner performance
• Used when servicing burner assemblies or converting damaged components

• One orifice set

• Turn off gas supply and electrical power before starting any repair
• Replacement may require disassembly of burner components—keep parts organized
• Tighten fittings to manufacturer torque; check all connections for leaks with a soapy-water solution or approved leak detector

This top burner replacement restores a single cooking burner on compatible gas cooktops and ranges, providing even flame delivery for reliable stovetop heating. Use it to replace a worn, clogged, or damaged burner head. What it does

• Replaces the stove's upper burner head to restore proper flame pattern and heat distribution.
• Helps resolve issues like uneven heating, weak or yellow flames, and food-burning hotspots.
• Fits the burner location shown in the appliance diagram and works with existing caps and igniters when undamaged.
• Made for direct replacement; matches OEM form and function for safe operation.

• One top burner (single burner head)

• Turn off the gas supply and power to the appliance before beginning work; follow all safety precautions.
• Remove burner caps and grates first; handle porcelain/enamel parts carefully to avoid chipping.
• Clean ports and verify the orifice/igniter alignment before reassembly; do not force parts.
• If you smell gas after installation or see irregular flame behavior, shut off the appliance.

The Top Burner is an OEM part for Frigidaire gas ranges. It distributes heat from gas flames efficiently.

Repeated thermal cycling causes burner components to expand and contract over time. Fatigue weakens fine flame control and stability.

Causes relate to typical thermal stressing expected with daily cooking use. Impacts risk part fractures from unintentional damage as well.

Symptoms of a bad top burner involve:

• Unstable or irregular flames while gas is flowing
• Difficulty achieving a precise simmer setting
• Warped or misshapen burner head surfaces

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This top burner is the replaceable cooking element that provides heat for pots and pans on the cooktop. Replacing a worn or damaged burner restores even heating and reliable cooking performance. What it does:

• Conducts heat across the cooktop so cookware can be heated for cooking
• Replaces a cracked, warped, or cosmetically damaged burner
• Can fix uneven or weak heating from the affected burner
• Helps stop arcing or poor contact when the original burner is faulty

• Turn off power/gas to the appliance and allow it to cool before starting work
• Remove cookware and any detachable grates or drip pans to access the burner
• Handle the burner carefully to avoid bending terminals or damaging the surface

This protective terminal cover shields a refrigerator component's electrical connections to help prevent accidental contact and shorting during operation. It's a simple replacement that restores basic insulation and safety. What it does:

• Covers and insulates exposed electrical terminals to reduce risk of short circuits and accidental contact
• Helps keep dust and debris off connection points for more reliable electrical contact
• Can prevent arcing or visible burning when a damaged cover is replaced
• Commonly replaced when the original cap is cracked, brittle, melted, or missing

• One replacement protective terminal cap

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing electrical parts
• Remove only the damaged cap and slip the replacement over the terminal until fully seated
• Inspect terminals and wiring for any heat damage or corrosion; repair damaged wiring before reapplying a cover

The Burner Cap is an OEM part for Frigidaire gas ranges. As a protective cover, the burner cap sits securely over each gas range burner to deflect heat upwards towards pots and pans.

Causes of a bad burner cap can include cracked or warped surfaces from high heat exposure over time. Surface imperfections compromise the cap’s protective function.

Symptoms of damaged burner caps include:

• Warped or misshapen surfaces that no longer lay flat
• Cracks or breaks that expose the burner flame
• Gaps that allow spatters or boilovers to seep below

This replacement is compatible with select models by Alliance Laundry Systems, Crosley and Kelvinator brand ranges as well. Protect your cooktop and upgrade today.

This thermostat is the temperature control used in many refrigerators to switch the compressor on and off and help maintain set temperatures. It replaces a failed or unreliable control to restore consistent cooling. What it does:

• Senses interior temperature and signals the compressor or evaporator fan to cycle on and off
• Stops continuous running when the refrigerator reaches the selected temperature
• Helps prevent food spoilage caused by overcooling or warming when the control fails
• Common symptom: fridge runs constantly or does not reach/hold the set temperature

• One thermostat control

• Disconnect power before starting; verify power is off to avoid shock
• Accessible from the control housing or behind the temperature control knob—follow OEM service instructions for your model
• Handle the capillary tube and sensor carefully; do not kink or crush

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This glow-bar ignitor lights the gas burner in compatible ovens and ranges, restoring reliable ignition and consistent baking or broiling performance when the oven fails to heat. Designed to match OEM fit and function. What it does:

• Heats to a high temperature so the gas valve opens and the burner lights
• Commonly replaces a failed or weak ignitor when the oven won't reach temperature or won't light
• Helps stop repeated clicking or gas smell issues related to ignition failure
• Works with the oven's safety and gas control systems to enable normal operation

• One ignitor (glow bar)

• Disconnect electrical power and shut off gas supply before starting work
• Handle the ceramic/glass element carefully—it's fragile and can be damaged by fingerprints or impact
• Use manufacturer-recommended screws and connectors; confirm wiring orientation before removal
• After installation, restore power/gas and test unit for proper ignition and safe operation

This orifice controls the gas flow to a single oven burner, helping the burner produce the correct flame for consistent cooking. Replace a clogged or damaged orifice to restore proper burner performance and heating. What it does:

• Regulates gas flow to a specific oven/broiler burner for correct flame size and heat output
• Helps maintain even oven temperature and consistent cooking results
• Common symptom: weak or uneven flame, poor heating, or burner that won't light reliably
• Can become clogged by debris or fail from corrosion over time

• Turn off gas supply and electrical power before starting work; follow local codes
• Only install on the matching burner and ensure correct seating and alignment
• Use proper tools and check all connections for gas leaks after installation

This replacement surface burner is an electric coil designed to restore even cooking heat to an electric range or cooktop. It installs in the cooktop receptacle to heat pots and pans for everyday cooking. What it does:

• Heats cookware via an exposed electric coil for stovetop cooking
• Replaces a cracked, burned-out, or intermittently heating surface burner
• Helps eliminate uneven heating, slow heat-up, or a burner that won't glow hot
• Works with compatible cooktop receptacles for straightforward replacement

• Disconnect power at the breaker and allow the range to cool completely before servicing
• Lift out or remove the old burner from the receptacle per your model's instructions
• Align the burner terminals with the receptacle and press in until fully seated
• Restore power and test the burner on low then high heat to operation

The Thermocouple is an OEM component specifically designed for Frigidaire gas ranges. Located near the burners, this temperature-sensitive device controls gas valve operation.

Over extended use, high temperatures can cause internal wire elements to oxidize or break apart limiting functionality. Inaccurate readings impact safety.

Signs of a failing thermocouple involve:

• Unsteady or abnormal burner flame patterns
• Inconsistent cooking temperatures between uses
• Pilot flames are unable to maintain ignition reliably

Replacing with this OEM Frigidaire part restores reliable temperature regulation for gas combustion. Compatibility extends to Kenmore, Gibson, and Electrolux ranges ensuring optimized safety and performance. Peace of mind comes with an authorized replacement!

This hot-surface oven igniter lights the burner in gas ovens and ranges so the oven can reach and hold cooking temperatures. It replaces a weak or failed igniter to restore reliable oven heat. What it does:

• Heats to a high temperature to ignite the oven burner safely and reliably
• Commonly used when the oven won't heat or takes a long time to reach temperature
• Works as a direct replacement for the oven's original hot-surface ignition element

• One oven igniter

• Disconnect power and shut off the gas supply before beginning any work
• Handle the fragile ceramic/glass element carefully to avoid cracking or damage
• Inspect wiring and connectors for heat damage; replace if corroded or brittle
