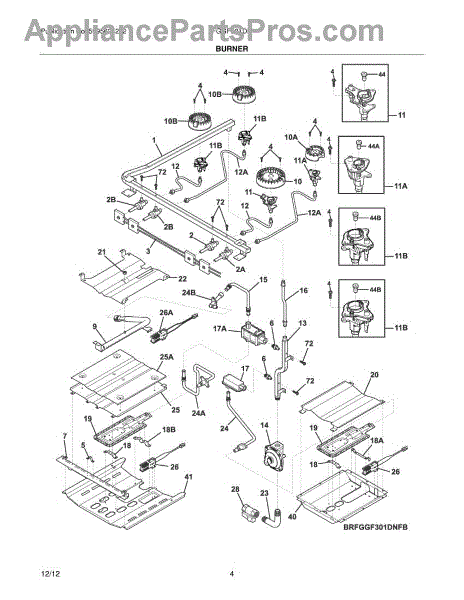

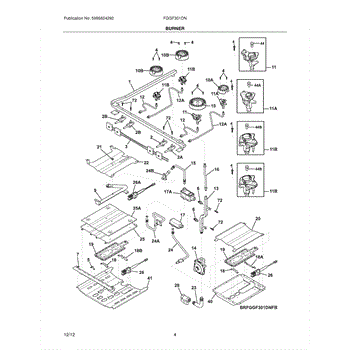

Parts for Frigidaire FGGF301DNBB: 05 - Burner Parts

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This cooktop burner replaces a damaged or worn surface burner to restore even heating for stovetop cookware. It fits into the cooktop and provides a stable heat source for everyday cooking use. What it does:

• Supplies a stable, consistent heat source for pots and pans on the cooktop
• Replaces cracked, warped, or non-working burners that fail to heat
• Helps eliminate hot spots or intermittent heating caused by a damaged element
• Works with the existing burner receptacle and hardware when installed correctly

• Disconnect power to the range at the breaker before attempting any service
• Allow the cooktop and parts to cool completely before touching or removing the old burner
• Handle porcelain or glass cooktop surfaces carefully to avoid chipping; use manufacturer-recommended replacement steps

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner replaces a worn or damaged unit on your range to restore reliable, even heat. Swap it in to correct poor performance caused by cracks, corrosion, or blockages so cooking results return to normal.

• Provides the heat source for a cooking zone on the range
• Common fix for damage, warping, or clogged ports/passages
• Symptoms include won't light/heat, weak or uneven heating, or irregular/yellow flame on gas models
• Visible rust, cracks, or deformation indicate replacement is needed

• Disconnect power; for gas models, also shut off the gas supply. Allow the appliance to cool completely
• Remove grate/cap or unplug element as applicable; take out screws/retainers to lift off the old burner
• Transfer reusable items from the original part (such as cap, electrode/igniter, and screws) if required by your model
• Align correctly and tighten fasteners evenly; restore utilities and test for proper operation

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly replaces the burner gas orifice and ignitor used to light a gas cooktop or range. It restores reliable spark ignition and corrects flame delivery for safer, more consistent burner operation. What it does:

• Provides the ignitor electrode and matched gas orifice to initiate and shape the burner flame
• Helps stop intermittent or no-light conditions caused by a faulty ignitor or clogged orifice
• Can improve weak or uneven flames when the orifice is damaged or misaligned
• Works as a direct replacement assembly for the specified burner configuration

• One ignitor orifice assembly (electrode and orifice preassembled)

• Turn off gas supply and disconnect power before starting any repair
• Use proper tools to remove the burner cap and access the assembly; handle the ignitor electrode carefully to avoid damage
• Verify correct alignment and secure the assembly per manufacturer torque recommendations; test for proper ignition and gas leaks after installation

This assembly combines the spark igniter electrode with the orifice holder for a gas surface burner. It restores dependable ignition and proper gas delivery so the burner lights quickly and consistently.

• Provides the spark to ignite the surface burner
• Routes gas from the valve through the orifice holder to the burner head
• Typical symptoms: burner won't light, clicks but no flame, intermittent ignition, or cracked/chipped igniter insulator
• Replacing a damaged assembly restores reliable ignition at that burner

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner head; lift the top or access panel as your model requires
• Disconnect the spark wire, unfasten the old assembly, mount the new one, and reconnect the wire
• Restore gas and power, then check connections for leaks with an approved solution and test ignition

This ignitor and orifice assembly provides the ignition source and gas orifice for a gas oven or range burner, restoring reliable ignition for cooking. Replaces a worn or damaged ignitor/orifice to help the burner light correctly. What it does:

• Supplies the ignition element and properly sized orifice so the burner can light and maintain a stable flame.
• Replaces burned-out or cracked ignitors that cause slow or no ignition.
• Replaces clogged or damaged orifices that can cause weak or uneven flames.
• Common symptoms it can address: burner won't light, repeated clicking with no ignition, or a weak/uneven flame.

• Turn off the appliance power and shut off the gas supply before servicing.
• Handle the ignitor carefully—the ceramic/sensing tip is brittle and can break if dropped or bumped.
• Disconnect electrical connectors and note wire positions before removal; reconnect exactly as found.

This replacement water tube delivers water from the household supply to the ice maker, restoring reliable filling and ice production. It replaces worn or cracked tubing that can cause leaks or prevent the ice maker from filling. What it does:

• Carries water to the ice maker fill valve so the ice maker can fill and form ice
• Stops and helps prevent leaks caused by cracked or brittle tubing
• Restores normal ice production when a damaged tube is keeping the ice maker from filling
• Helps ensure consistent dispenser or fill-line water flow when properly connected

• Turn off the refrigerator power and shut off the water supply before starting.
• Disconnect the ice maker and remove access panels as needed to reach the tube.
• Inspect fittings and replace any damaged clamps or seals; tighten connections to manufacturer torque where specified.
• After installation, restore water and power, then check carefully for leaks and confirm the ice maker fills normally.

This gas pressure regulator controls fuel flow to the appliance's burner system, keeping flame size and heat steady for reliable cooking. Replaces a worn or failed regulator to restore proper gas delivery and consistent burner operation. What it does:

• Regulates incoming gas pressure to the appliance's burners and oven for consistent flame and heat.
• Helps correct symptoms such as weak or uneven flames, burners that won't light properly, or poor oven heating.
• Prevents over-pressurization that can cause unstable combustion when functioning correctly.
• Works as the inline control between the gas supply and the appliance's valve system.

• Turn off the gas supply and electricity to the appliance before attempting service.
• Use proper gas fittings and thread sealant rated for gas; follow local codes.
• After installation, perform a leak test on all gas connections and verify burner flames are steady.

This water inlet valve controls water flow to the refrigerator's dispenser and ice-making system, restoring proper water delivery when the factory valve fails. Designed as a direct-replacement valve assembly for compatible Frigidaire units. What it does

• Opens and closes to allow water into the ice maker and door dispenser when signaled
• Prevents water flow when the dispenser or ice maker is inactive
• Common symptom: dispenser or ice maker does not dispense water or fills slowly
• Common symptom: water intermittently flows or the ice maker fails to fill

• Disconnect power and shut off the water supply before beginning work
• Drain remaining water from lines to limit spills during removal
• Replace mounting hardware and tubing fittings exactly as removed; use plumber's tape where appropriate on threaded connections
• Inspect connections and test for leaks after restoring power and water

This water inlet valve controls the flow of water to the refrigerator's dispenser and icemaker, ensuring reliable water delivery for drinking and ice production. Replace a failing valve to restore normal water flow and prevent leaks. What it does:

• Opens and closes to supply water to the dispenser and icemaker when needed
• Stops water flow to help prevent continuous filling or flooding
• Commonly used when dispenser water is weak, icemaker won't fill, or there is leaking near the valve
• Matches OEM function and fit for compatible Frigidaire refrigerators

• One water inlet valve

• Shut off water and power to the appliance before starting any repair
• Handle water lines and electrical connectors carefully; replace worn gaskets or seals as needed

This replacement surface burner provides the heating element for electric cooktops so you can restore cooking performance. It fits the cooktop's receptacle and delivers stovetop heat for everyday cooking tasks. What it does

• Heats cookware on the cooktop for boiling, frying, simmering and other cooking.
• Replaces a worn or non-working surface element to restore even heating.
• Common symptoms: burner won't heat, takes too long to heat, or heats unevenly.
• Works with the cooktop receptacle and control switch to regulate temperature.

• One surface burner element.

• Disconnect power at the breaker before installing to avoid electrical shock.
• Handle the element carefully; glass-ceramic cooktops and terminals can be fragile.
• After installation, restore power and test the element on low and high settings.

This baffle is the airflow deflector that helps direct cold air inside the freezer or refrigerator compartment for more even cooling and reduced frost buildup. It replaces a damaged or missing baffle to restore proper airflow control. What it does

• Directs and distributes cold air within the compartment to help maintain consistent temperatures
• Helps prevent localized frost buildup by channeling airflow away from sensitive areas
• Restores proper circulation when the original baffle is cracked, warped, or missing
• Works with existing ducts, fans, and seals to support normal cooling performance

• One replacement baffle

• Disconnect power to the appliance before starting any repair
• Remove shelves or drawers as needed to access mounting tabs or screws
• Align tabs or mounting points and secure the baffle without forcing it to avoid breaking clips
• If clips or fasteners are damaged, replace them before completing reassembly

This ignitor is the surface-burner spark electrode that lights the flame on a gas range or cooktop. Replacing a weak or cracked electrode restores fast, reliable ignition so burners light consistently when you turn the knob.

• Produces the spark needed to ignite gas at the burner
• Helps ensure quick, consistent flame startup
• Common symptoms: burner won't light, delayed or intermittent ignition, or lighting only with a match
• Visible damage to the ceramic insulator or no spark at the electrode tip indicates replacement is needed

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Note wire routing and mounting before removal; transfer any bracket from the old part if required
• Handle the ceramic insulator and electrode tip carefully; do not overtighten mounting screw(s)
• Restore gas and power, then test burner ignition and proper flame

This ignitor lights the gas at the burner. Replacing a worn ignitor restores quick, reliable ignition so your range or wall oven starts consistently without repeated attempts.

• Provides ignition at the burner when the control calls for flame
• Common signs of failure: burner won't light, delayed or intermittent ignition, weak/no ignition, or visible cracks/damage to the insulator
• Restores consistent lighting and dependable performance

• Disconnect power and shut off gas supply before servicing
• Access the burner area; note original ignitor position, wiring, and mounting
• Handle the ceramic body/tip carefully; avoid impact or contamination
• Restore gas and power; test ignition and proper flame operation

This water inlet valve controls water flow to the refrigerator's ice maker and water dispenser, restoring normal dispensing and ice production when the valve is faulty or leaking. What it does

• Opens and closes to allow water into the ice maker and dispenser as commanded by the refrigerator.
• Stops water flow to prevent overfilling; a failed valve can cause no water, slow flow, or continuous filling.
• Commonly linked to symptoms such as no ice production, weak or no water from the dispenser, or visible leaks at the valve.

• One water inlet valve assembly.

• Disconnect power and shut off the water supply before starting work.
• Relieve line pressure and have towels ready for residual water when disconnecting fittings.
• Inspect and replace any worn water line fittings or gaskets; tighten connections to manufacturer torque—do not overtighten plastic fittings.

This gas burner orifice meters fuel to the flame so your range or cooktop heats with the correct flame size and stable output. Replacing a worn or clogged orifice can help restore even flames and consistent cooking performance.

• Regulates gas flow through the burner jet for proper flame height
• Supports reliable ignition and stable, even flame characteristics
• Common signs of trouble: weak or uneven flames, yellow tipping, or delayed ignition
• Orifices are position- and fuel-specific; always match to your model and gas type

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Remove grates, burner caps, and burner head as needed to access the orifice
• Use the correct wrench/nut driver; do not overtighten or alter the jet opening
• After reassembly, turn gas on and leak-check with a soap-and-water solution; verify flame per the manual

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
