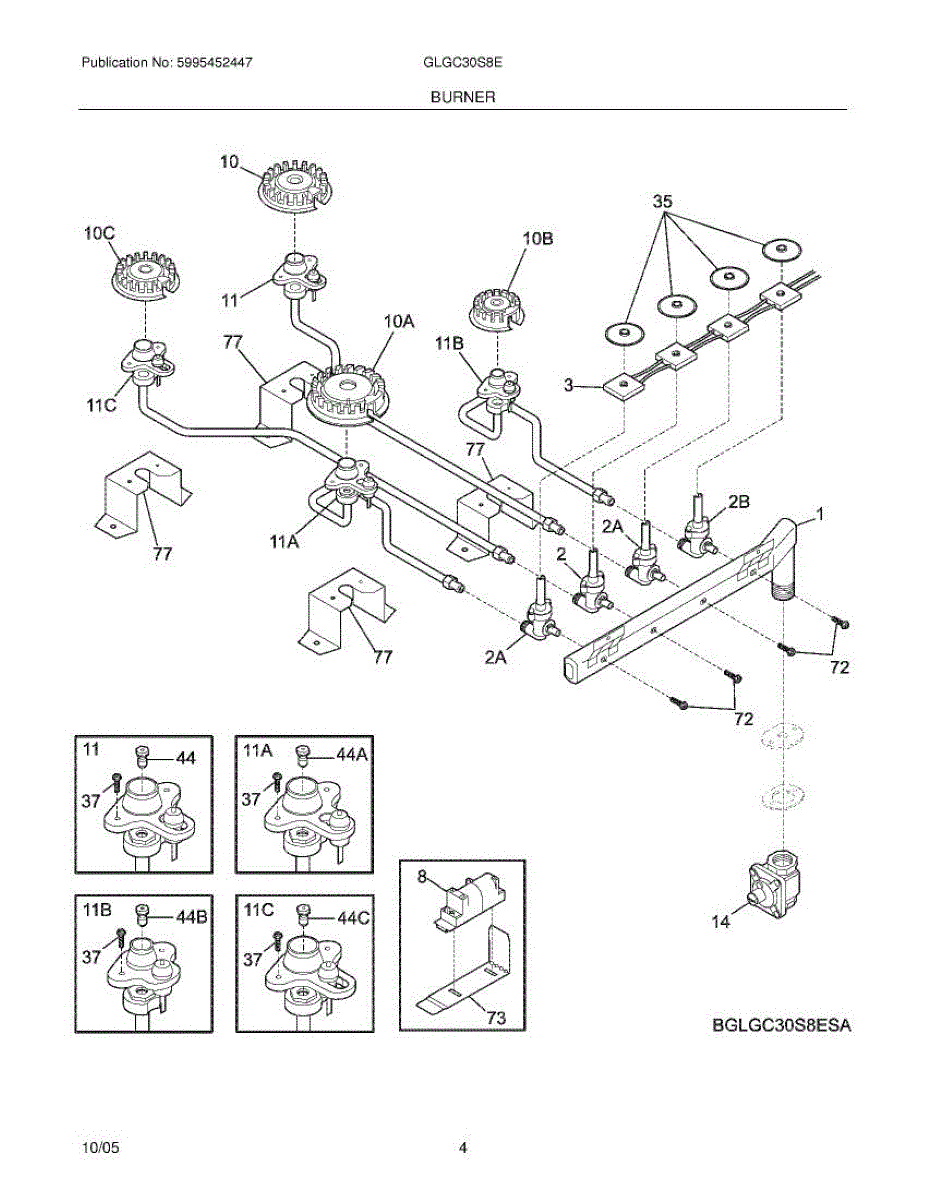

Parts for Frigidaire GLGC30S8EQA: 05 - Burner Parts

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner head is used on gas ranges to provide the cooking heat. The burner head is attached to the burner tube assembly that supplies the gas. When the burner is ignited, the holes in the burner head produce the flame that is used for cooking. Over time, food spills and normal corrosion may cause the holes in the burner head to become clogged or damaged. If this occurs, food will not cook evenly, or the burner may not ignite. The burner head should be removed and replaced. Turn the gas and power off to the stove. Remove the burner grate and burner cap and set them aside. Lift the burner head off the stove and dispose of it. Place the new burner head over the burner base and make sure the pin goes inside it. Seat the burner head level over the hole and make sure it is level. Place the burner cap and grate back on the stove. Reconnect the gas and power.This burner head is an authentic OEM replacement part sourced directly from the manufacturer for use on gas ranges by Kenmore, Frigidaire, Crosley, and Electrolux. It is a silver metal part that is sold individually.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This pressure regulator controls gas flow to the range valve, helping maintain steady burner operation for safe, consistent flames. It replaces a worn or failed regulator to restore proper gas delivery and reliable ignition performance. What it does:

• Regulates incoming gas pressure to the range's control valve for steady burner flames
• Helps correct issues like weak or uneven flames and burners that struggle to light
• Reduces risk of high-pressure surges that can affect burner performance
• Works as a direct replacement when the existing regulator is faulty or leaking

• Turn off the gas supply and power before starting any work; always follow appliance shutoff procedures
• Inspect fittings and seals; use proper thread sealant for gas-rated connections if required by the manufacturer
• After installation, perform a gas leak check and verify correct burner operation and flame appearance

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

For 5k burner.

This top burner orifice meters gas to a 14,000-BTU surface burner on your range, maintaining the correct flame size and heat output. Replace a worn or incorrect orifice to restore consistent burner performance and control. What it does

• Regulates gas flow to the 14,000-BTU top burner for proper flame height and shape
• Helps resolve weak or oversized flames and uneven heating
• Can reduce yellow/orange flame tipping and improve simmer control
• Supports reliable ignition by ensuring correct fuel metering

• One 14,000-BTU top burner orifice

• Shut off gas supply and power; allow the cooktop/range to cool before service
• Remove burner cap and head to access the orifice; use the correct socket/wrench
• Install and snug—do not overtighten; verify it's the correct orifice for the burner position and gas type specified for your model
• Reassemble, check for leaks with a soapy-water solution, and verify a stable, blue flame (adjust air shutter if applicable)

For 9.5k burner.

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
