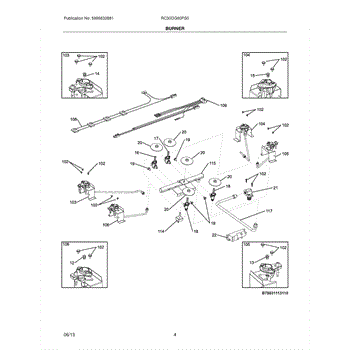

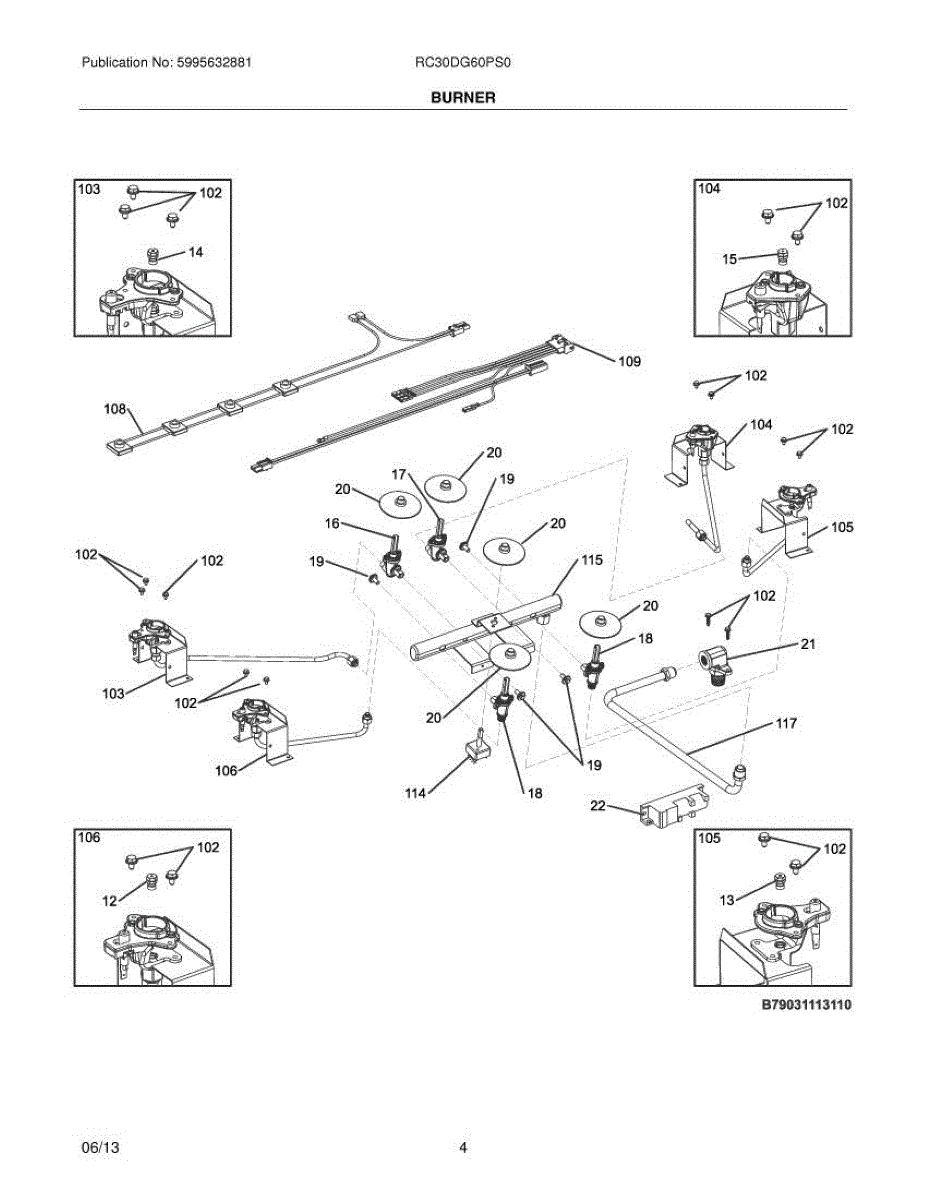

Parts for Frigidaire RC30DG60PS0: 05 - Burner Parts

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This natural gas burner orifice meters gas flow to a specific burner on your range, delivering the correct flame size and heat output. Replace a worn or clogged orifice to restore stable, efficient burner performance. What it does:

• Meters natural gas to match the assigned burner's BTU rating and flame height
• Helps produce a steady blue flame and even heating when the correct orifice is installed
• Helps with weak/uneven flame, yellow tipping/soot, or delayed ignition if the orifice is blocked or damaged
• Fuel-specific component designed for natural gas systems

• One natural gas orifice

• Shut off gas supply and disconnect power before servicing
• Replace like-for-like; the stamped size/marking matches the burner position and fuel type—do not drill or modify
• Use an appropriate wrench and tighten snugly without overtightening
• Restore gas and leak-test with a soap solution; proper flame.

This gas burner orifice meters fuel to the flame so your range or cooktop heats with the correct flame size and stable output. Replacing a worn or clogged orifice can help restore even flames and consistent cooking performance.

• Regulates gas flow through the burner jet for proper flame height
• Supports reliable ignition and stable, even flame characteristics
• Common signs of trouble: weak or uneven flames, yellow tipping, or delayed ignition
• Orifices are position- and fuel-specific; always match to your model and gas type

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Remove grates, burner caps, and burner head as needed to access the orifice
• Use the correct wrench/nut driver; do not overtighten or alter the jet opening
• After reassembly, turn gas on and leak-check with a soap-and-water solution; verify flame per the manual

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This manifold is the oven/range gas distribution assembly that delivers gas to the burner ports for consistent ignition and flame control. It replaces a worn or damaged manifold to restore reliable burner operation. What it does

• Routes gas from the incoming supply to individual burner valves and ports for even flame delivery
• Helps maintain proper ignition and steady burner flames when functioning correctly
• Commonly replaced if burners fail to light, flame is uneven, or gas delivery is interrupted
• Works as the central mounting/connection point for related burner valves and tubing

• Turn off the gas supply and disconnect power before attempting any service
• Inspect associated valves, tubing, gaskets, and fittings; replace any damaged components
• Use approved fittings and test all connections for leaks with a gas leak detector or soapy water
