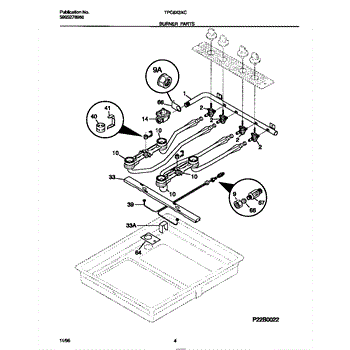

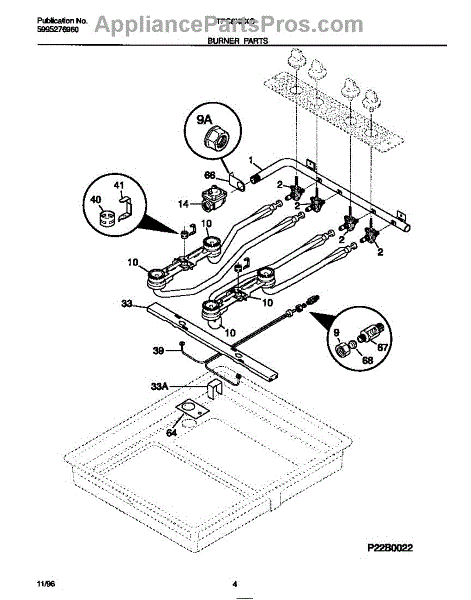

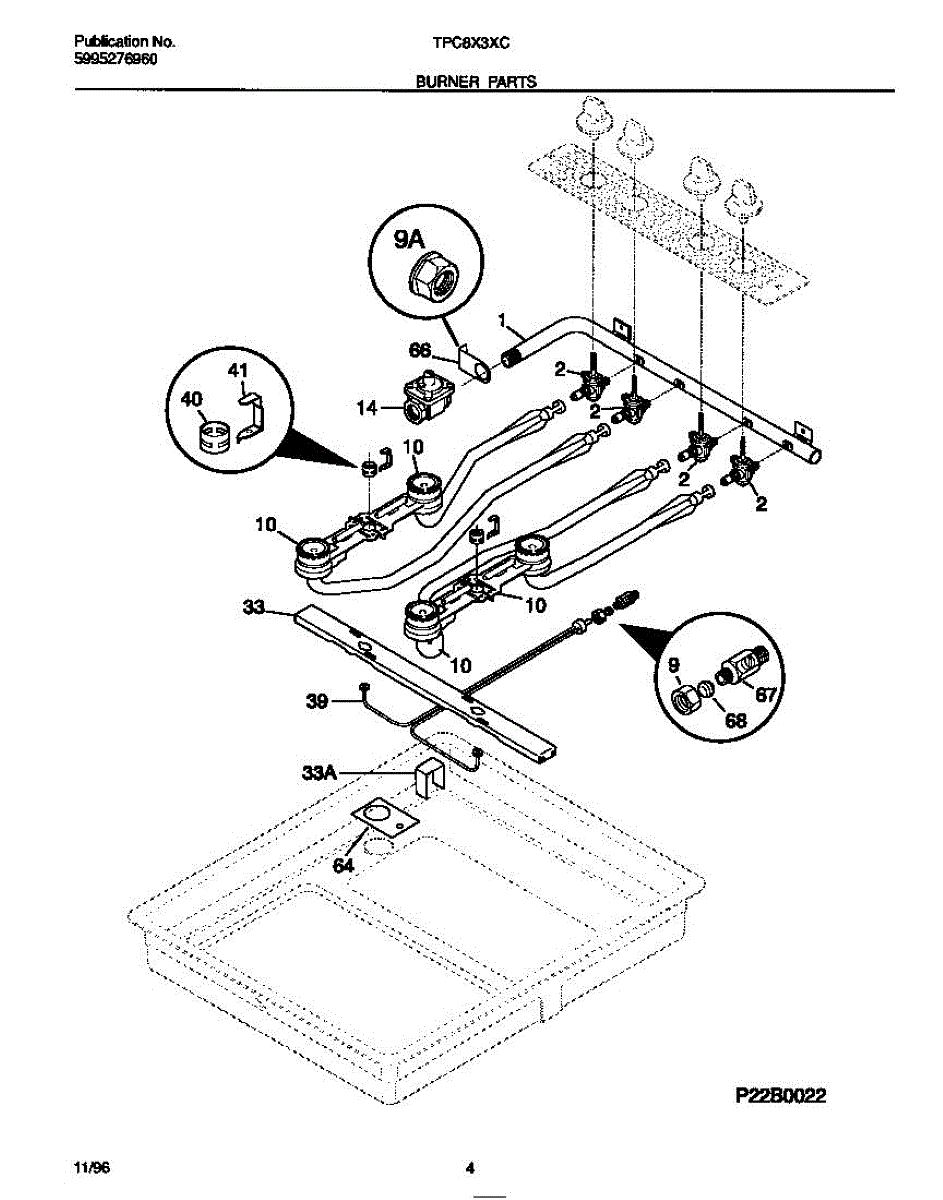

Parts for Frigidaire TPC8X3XCD2: 03 - Burner Parts

Compression nut secures the pilot assembly on gas range burners. Replace if stripped, corroded, or missing to properly fasten pilot tube connections.

Controls gas flow to range burners. Replace if regulator is worn, leaking, or damaged to restore proper gas delivery and maintain safe operation.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a cap that sits on top of the pilot assembly on a gas range. It covers and protects the pilot flame area, helping to direct the flame properly for reliable ignition of the surface burners. Replace this cap if it is cracked, corroded, or missing, which can cause inconsistent pilot flame or difficulty lighting the burners.

This retainer bracket secures a small appliance component or assembly in place to keep parts aligned and reduce movement. It helps restore proper fit and stops noise or shifting caused by a loose or damaged bracket. What it does:

• Holds and positions a component or panel to maintain alignment and function
• Prevents rubbing, rattling, and vibration from loose assemblies
• Restores proper clearance where a failed bracket caused gaps or misalignment
• Used when a corroded, bent, or broken bracket no longer secures parts safely

• Disconnect power and, for refrigerators/freezers, turn off the water supply before servicing.
• Remove necessary panels or shelves to access the bracket; keep fasteners organized.
• Replace the bracket using the same mounting holes and hardware; do not force fit.
• If sharp edges are present, wear gloves and test the appliance operation after reassembly.

Pilot ferrule for gas ranges and cooktops. Connects pilot assembly components. Replace if cracked, corroded, or missing to restore proper fit.
