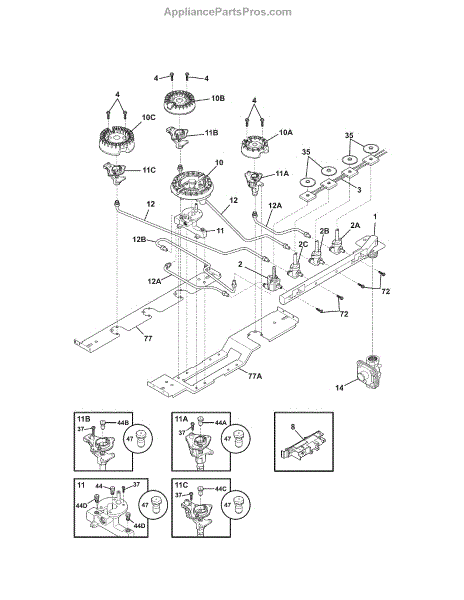

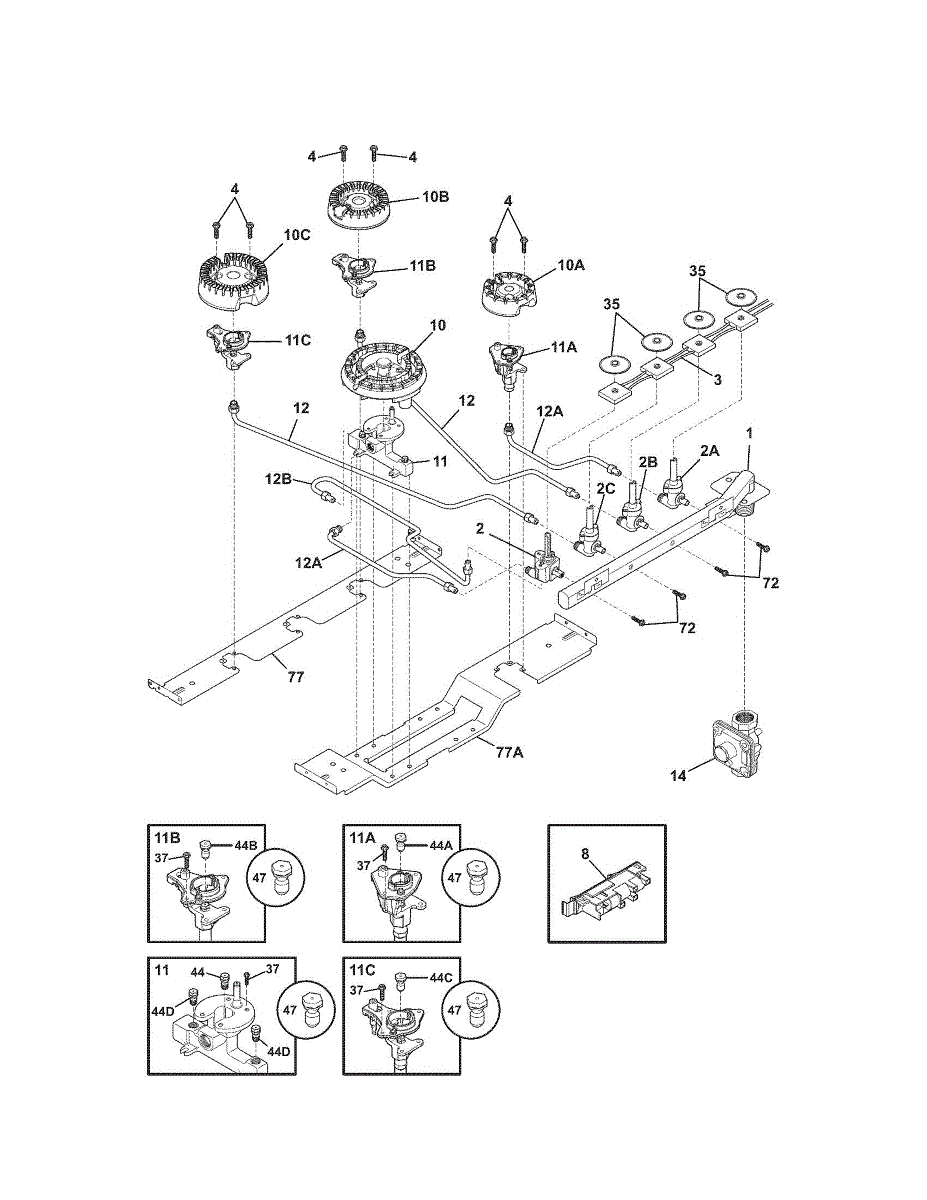

Parts for Kenmore 790.32302000 (79032302000, 790 32302000): Burner Parts

If your burner won't light or the flame is too high or too low, this gas valve controls flow to restore proper ignition and flame adjustment on your cooktop.

This wiring harness routes power and signals between the appliance's control and various electrical components, restoring reliable electrical connections and helping the appliance operate as designed. Use it when wiring is damaged, corroded, or intermittent. What it does:

• Delivers power and signal paths between control boards, switches, and motors
• Restores lost or intermittent electrical connections that can cause failure to start or run
• Replaces burned, frayed, or broken wires and damaged connector terminals
• Helps eliminate arcing, shorts, and communication errors caused by faulty wiring

• Always disconnect all power (unplug or shut off breaker) before starting repairs
• Match connectors and wire routing to the original harness; avoid stretching or pinching wires
• Inspect mating connectors and terminals for damage before installation; replace any damaged parts
• If connectors are tight or corroded, clean or replace them rather than forcing connections

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly routes and meters gas to the oven burner ignitor so the oven lights reliably and reaches cooking temperature. It's a direct-replacement part used when ignition is inconsistent or the burner won't light. What it does:

• Controls gas flow from the manifold to the oven burner ignitor for proper ignition
• Helps ignition occur quickly and consistently so the oven can reach set temperatures
• Common symptoms: oven won't light, delayed or intermittent ignition, or weak/uneven heating
• Works with the oven's ignition system; replaces worn or damaged orifice assemblies

• Turn off electrical power and shut off the gas supply before starting work
• Use proper tools; do not force fittings or over-tighten connections
• After installation, restore power/gas and test the oven for proper ignition and operation

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This is a combined igniter and orifice holder assembly that mounts beneath a surface burner on a gas range. It positions the spark igniter and gas orifice correctly so the burner lights and produces a proper flame. Replace this assembly if a burner fails to ignite, clicks without lighting, or produces an uneven or weak flame.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

This gas regulator controls and maintains proper gas pressure to the oven or range burner for consistent ignition and steady flame performance. It helps the appliance run safely and reliably by regulating incoming fuel flow. What it does:

• Regulates gas pressure to the cooktop or oven burner for stable flame and even heating
• Helps prevent flame sputtering, weak burners, or inconsistent oven temperature that can result from improper pressure
• Works with the appliance's safety valves and burners to support reliable ignition
• Designed for direct replacement of the factory regulator to restore correct fuel flow

• One gas regulator

• Turn off the gas supply and unplug the appliance before starting any work; follow local codes for gas work
• Install only if the regulator is confirmed faulty; check gas connections and supply line for leaks after installation
• Use proper fittings and thread sealant rated for gas; tightness should be to manufacturer torque—do not overtighten

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burner orifice jets meter fuel flow to range and oven burners. Replace when damaged, worn, or missing to restore proper flame size and heat control.

This is a combined igniter and orifice holder assembly that mounts beneath a surface burner on a gas range. It positions the spark igniter and gas orifice correctly so the burner lights and produces a proper flame. Replace this assembly if a burner fails to ignite, clicks without lighting, or produces an uneven or weak flame.

Natural gas burner orifice meters gas flow to range burners. Replace worn or clogged orifices for stable flame. Used for LP to natural gas conversions.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
