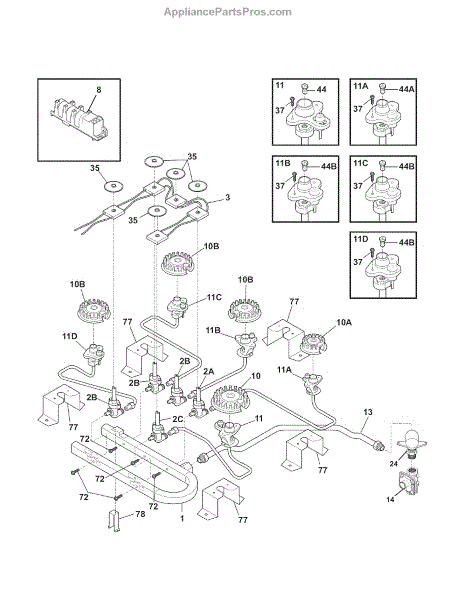

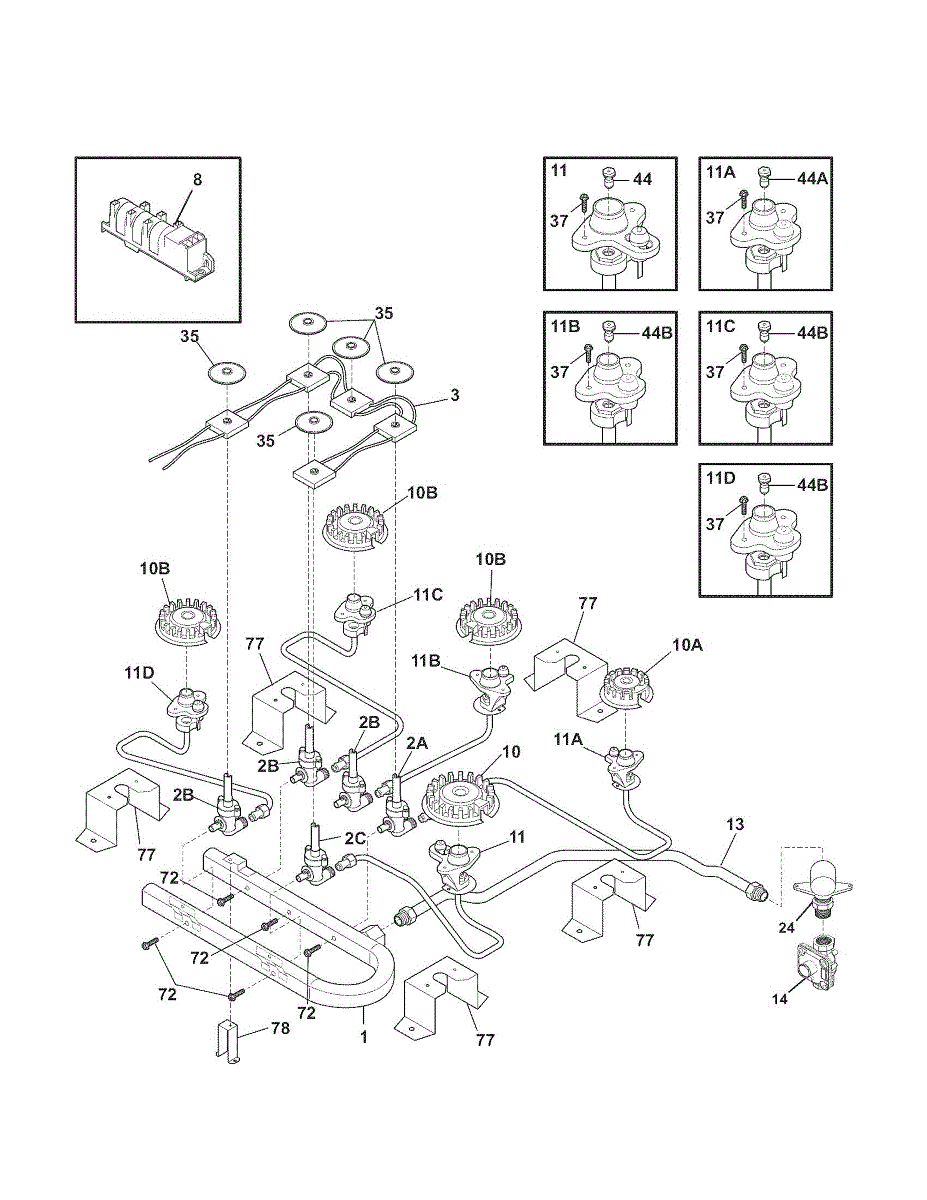

Parts for Kenmore 790.32432901 (79032432901, 790 32432901): Burner Parts

If your burner won't light or the flame is too high or too low, this gas valve controls flow to restore proper ignition and flame adjustment on your cooktop.

Replacement wiring harness for your cooktop. Connects electrical components to power supply. Needed when wires are frayed, damaged, or connections fail.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

This burner head is used on gas ranges to provide the cooking heat. The burner head is attached to the burner tube assembly that supplies the gas. When the burner is ignited, the holes in the burner head produce the flame that is used for cooking. Over time, food spills and normal corrosion may cause the holes in the burner head to become clogged or damaged. If this occurs, food will not cook evenly, or the burner may not ignite. The burner head should be removed and replaced. Turn the gas and power off to the stove. Remove the burner grate and burner cap and set them aside. Lift the burner head off the stove and dispose of it. Place the new burner head over the burner base and make sure the pin goes inside it. Seat the burner head level over the hole and make sure it is level. Place the burner cap and grate back on the stove. Reconnect the gas and power.This burner head is an authentic OEM replacement part sourced directly from the manufacturer for use on gas ranges by Kenmore, Frigidaire, Crosley, and Electrolux. It is a silver metal part that is sold individually.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Fix a cooktop burner that won't light with this igniter orifice assembly. Restores reliable spark ignition for gas burners. Moderate DIY repair.

This ignitor orifice assembly directs gas to the oven/range ignitor so burners light reliably. It replaces a worn or damaged orifice assembly to restore proper ignition and consistent flame start-up. What it does:

• Channels the correct gas flow to the oven/range ignitor for reliable ignition
• Helps stop delayed or failed ignition when the orifice is clogged or damaged
• Works as a direct replacement component for the ignitor gas path

• One ignitor orifice assembly

• Turn off electrical power and shut off the gas supply before servicing
• Replace with the exact part to maintain safe ignition performance
• Use basic hand tools; avoid forcing fittings or overtightening

Connector adaptor for cooktop burners. Installs between burner element and wiring harness. Replace if cracked, melted, corroded, or causing poor connection.

This gas regulator controls fuel pressure to the oven/range burner for steady ignition and consistent heat. Replaces a worn or faulty regulator to help restore proper gas flow and reliable burner operation. What it does:

• Regulates incoming gas pressure to the range/oven burner system
• Helps maintain consistent flame for even cooking and steady ignition
• Can resolve symptoms like weak or uneven flames, burner ignition problems, or loss of heat
• Works as the pressure-control component in the appliance's gas supply path

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate fittings and gas-rated sealant; check all connections for leaks after installation
• Do not operate the appliance if you detect the smell of gas; ventilate.

For 5k burner.

Meters gas flow to your range's top burner for proper flame size and heat output. Replace if worn, incorrect size, or during fuel type conversion.

Burner orifice installs in the gas valve to control fuel flow to the cooktop burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Specs: 10-32 X 0.375

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Wiring harness for cooktops. Connects electrical components within the cooktop assembly. Replace if wires are frayed, connectors are damaged, or broken.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
