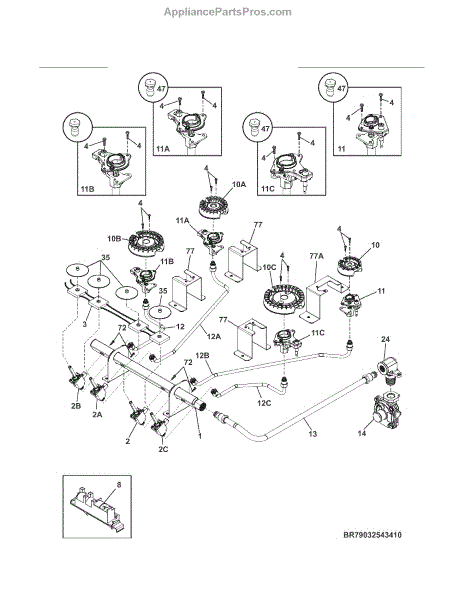

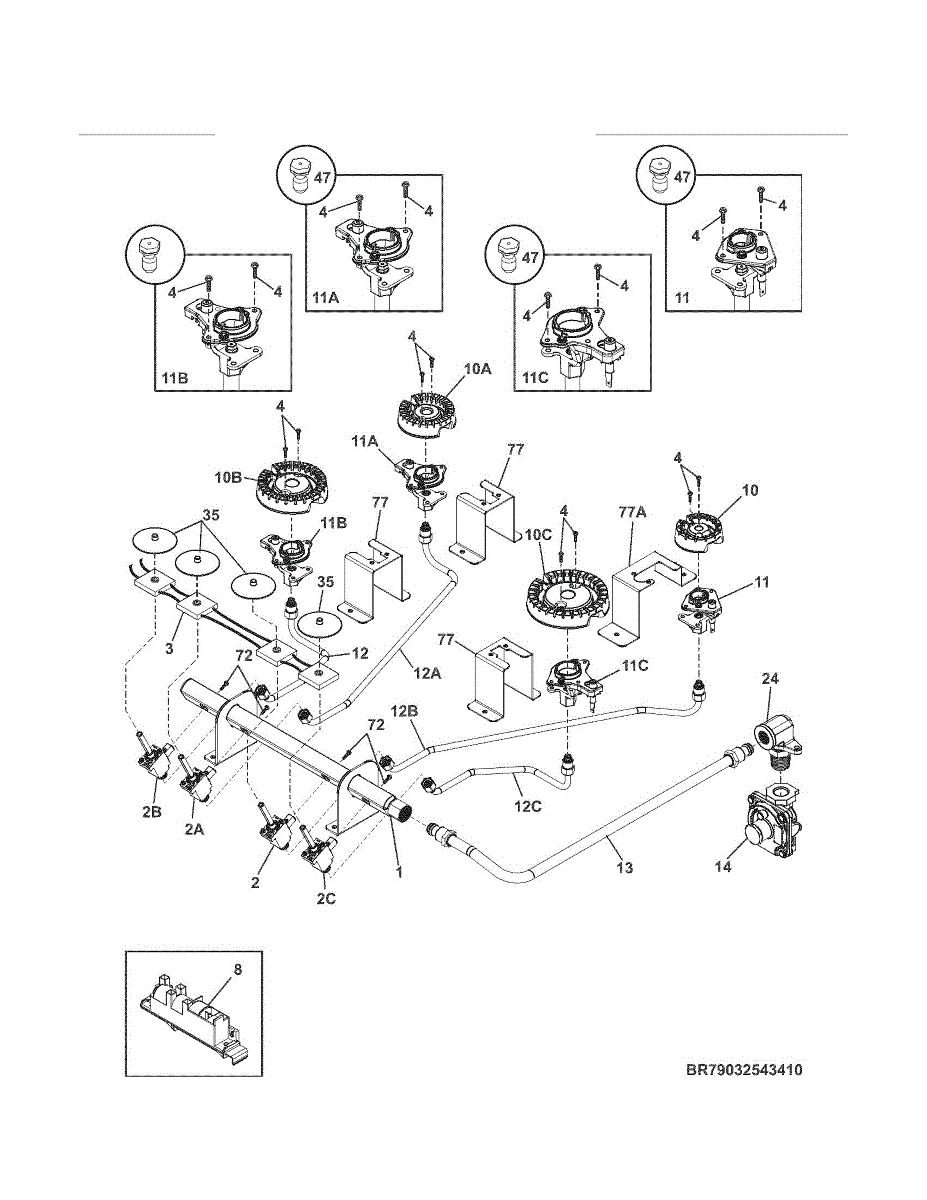

Parts for Kenmore 790.32543410 (79032543410, 790 32543410): Burner Parts

This manifold assembly routes gas from the supply to the oven/range burner valves so burners light reliably. It replaces a damaged or leaking manifold to restore proper fuel distribution and safe operation. What it does

• Channels incoming gas to each burner valve so burners can ignite.
• Prevents gas leaks at the distribution point when seals and fittings are intact.
• Commonly used when one or more burners fail to light or exhibit low flame.
• Works with the cooktop's valve/burner system; does not include valves unless listed.

• Turn off the gas supply and electrical power before servicing.
• Inspect and replace any damaged gaskets, fittings, or mounting hardware during installation.
• Install only with correct fittings and follow local codes; use a gas-rated thread sealant where required.

Fix burner not igniting or flame issues with this cooktop top valve. Controls gas flow to burners. Common repair for inconsistent heating problems.

If your cooktop burner won't light, stays on high, or has weak flame, the burner valve likely needs replacement. This part controls gas flow to restore safe, adjustable heat.

This gas valve controls the flow of gas to a surface burner on a gas range. It is connected to the burner control knob and regulates flame height from low to high settings. Replace this valve if the burner won't ignite, the flame cannot be adjusted properly, or you detect a gas smell when the knob is in the off position.

Burner won't light or flame height won't adjust? This top burner valve controls gas flow to restore reliable ignition and precise flame control.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly replaces the oven burner mounting that holds the igniter and gas orifice, restoring reliable ignition and helping the oven light consistently for proper baking and broiling. What it does

• Secures the igniter and gas orifice at the oven bake/broil burner for proper ignition.
• Directs gas flow to the igniter so the burner lights reliably.
• Can resolve symptoms such as the oven failing to light, delayed ignition, weak or uneven flame, or intermittent burner operation.
• Works with the oven's gas valve and igniter to support consistent heating cycles.

• Turn off electrical power and shut off the gas supply before starting work.
• Handle the igniter and ceramic components carefully—avoid dropping or touching fragile surfaces.
• After installation, check all connections and test for gas leaks (use a soap solution; do not use open flame).

This ignitor orifice assembly directs gas flow to the oven/burner igniter for reliable ignition and consistent flames. It replaces worn or clogged orifice parts to restore normal ignition performance. What it does:

• Regulates and channels gas to the igniter so the burner/oven will light
• Helps produce a steady, consistent flame for proper cooking temperatures
• Common repair when a burner or oven fails to ignite or has weak flame
• Prevents irregular ignition caused by damaged or blocked orifice passages

• One ignitor orifice assembly

• Turn off the appliance power and shut off the gas supply before starting
• Inspect fittings and seals for damage and test for leaks after installation (use approved leak-detection methods)
• Use appropriate tools and follow the appliance service manual for removal and reassembly

This assembly combines the spark igniter and orifice holder for a 9,500-BTU cooktop surface burner. The igniter creates the spark to light the gas, while the orifice holder meters the correct gas flow to the burner. Replace this assembly if the burner won't ignite, clicks without lighting, or produces an uneven or weak flame.

If your gas cooktop won't light or has delayed ignition, this ignitor orifice assembly restores the spark electrode and gas orifice for reliable starts.

Replacement tube for gas cooktops. This component connects gas line sections or attaches to valves. Replace if cracked, damaged, or leaking during use.

Replacement tube for gas cooktops. Installs in the burner assembly to direct gas flow. Order a new part if your current tube is cracked or damaged.

Gas supply tube for cooktops. Connects burner valves to gas manifold. Replace if cracked, corroded, or leaking to restore safe gas flow to burners.

Regulates gas flow and pressure to your cooktop burners. Replace if damaged, worn, or if gas won't flow properly through the regulator assembly.

Elbow fitting for cooktop gas supply lines. Replaces cracked, damaged, or missing elbow connectors that attach gas tubing at angled joints.

Replace worn cooktop shaft bushings to reduce friction and restore smooth operation. This sleeve supports rotating components for quiet performance. Confirm fit with your model number.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp
