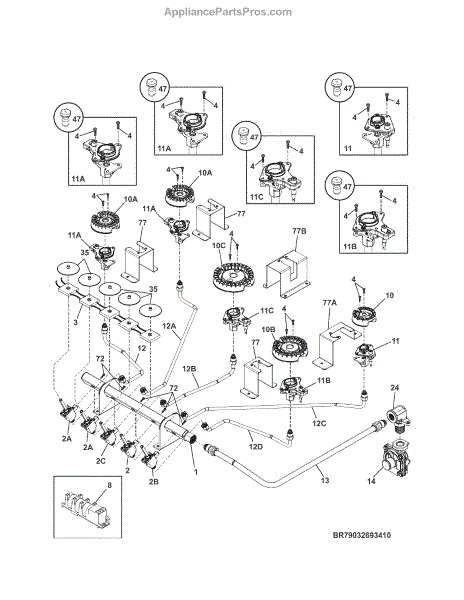

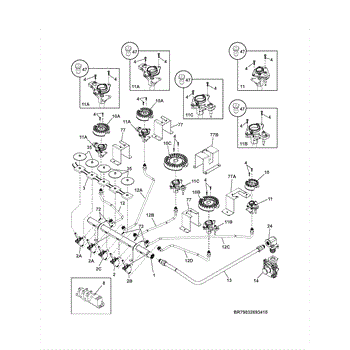

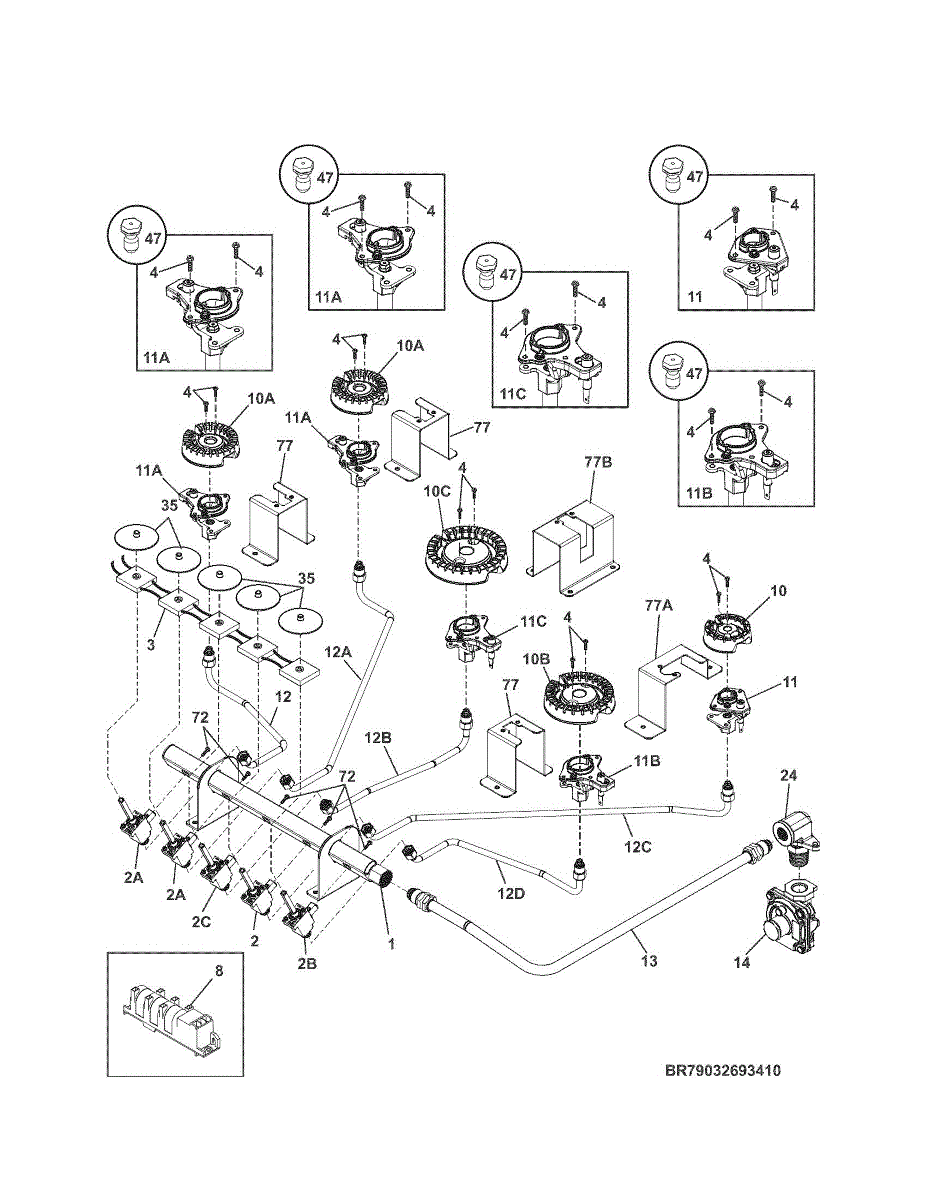

Parts for Kenmore 790.32553410 (79032553410, 790 32553410): Burner Parts

Gas not flowing to burners or uneven flames? This cooktop gas manifold distributes gas to all burners. Intermediate repair requiring basic hand tools.

Fix burner not igniting or flame issues with this cooktop top valve. Controls gas flow to burners. Common repair for inconsistent heating problems.

This water inlet valve controls water flow to the refrigerator dispenser and ice maker, restoring proper dispensing and ice production. It replaces a failed or leaking valve to stop drips and ensure steady water fill. What it does:

• Opens and closes water supply to the dispenser and ice maker when activated
• Stops water flow to prevent leaks when the valve is closed
• Helps restore normal dispenser flow and consistent ice maker fills
• Commonly replaced for leaking, no water dispensed, or weak dispenser flow

• Disconnect power and shut off the water supply before starting any work
• Drain lines and have towels ready; valve replacements can release trapped water
• Basic hand tools required; avoid overtightening fittings to prevent damage

If your cooktop burner won't light, stays on high, or has weak flame, the burner valve likely needs replacement. This part controls gas flow to restore safe, adjustable heat.

Burner won't light or flame height won't adjust? This top burner valve controls gas flow to restore reliable ignition and precise flame control.

This electromechanical switch assembly controls a specific user or internal function and restores reliable on/off or selection response. Replace a worn or damaged switch assembly to regain proper control and appliance usability. What it does:

• Acts as the electrical switching component for the appliance control circuit
• Enables user input to be registered (on/off or selection) and sent to the control system
• Common symptom: appliance won't respond when a control is pressed or switched
• Common symptom: intermittent or non-working control operation, no clicking or circuit continuity when activated

• Disconnect power before accessing or replacing the switch to avoid shock
• Access panel or control bezel removal may be required
• Handle wiring connections carefully; match terminals and secure connectors

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly replaces the oven's burner ignition component to help light the gas burner reliably and restore normal oven ignition. Designed to match OEM fit and function on compatible Frigidaire gas ovens. What it does:

• Provides the ignition pathway so the burner lights when the oven calls for heat
• Directs and meters gas at the burner ignition point for consistent ignition
• Addresses symptoms like the oven failing to light, delayed ignition, or intermittent ignition
• Works with the oven's safety and control systems to enable normal burner operation

• Shut off gas supply and electrical power before servicing; verify both are off
• Only install in gas ovens that use this specific assembly;

This ignitor orifice assembly replaces the oven burner mounting that holds the igniter and gas orifice, restoring reliable ignition and helping the oven light consistently for proper baking and broiling. What it does

• Secures the igniter and gas orifice at the oven bake/broil burner for proper ignition.
• Directs gas flow to the igniter so the burner lights reliably.
• Can resolve symptoms such as the oven failing to light, delayed ignition, weak or uneven flame, or intermittent burner operation.
• Works with the oven's gas valve and igniter to support consistent heating cycles.

• Turn off electrical power and shut off the gas supply before starting work.
• Handle the igniter and ceramic components carefully—avoid dropping or touching fragile surfaces.
• After installation, check all connections and test for gas leaks (use a soap solution; do not use open flame).

This ignitor orifice assembly directs gas flow to the oven/burner igniter for reliable ignition and consistent flames. It replaces worn or clogged orifice parts to restore normal ignition performance. What it does:

• Regulates and channels gas to the igniter so the burner/oven will light
• Helps produce a steady, consistent flame for proper cooking temperatures
• Common repair when a burner or oven fails to ignite or has weak flame
• Prevents irregular ignition caused by damaged or blocked orifice passages

• One ignitor orifice assembly

• Turn off the appliance power and shut off the gas supply before starting
• Inspect fittings and seals for damage and test for leaks after installation (use approved leak-detection methods)
• Use appropriate tools and follow the appliance service manual for removal and reassembly

If your gas cooktop won't light or has delayed ignition, this ignitor orifice assembly restores the spark electrode and gas orifice for reliable starts.

Tube component for gas cooktops. Installs internally to route gas or connect burner components. Replace if cracked, damaged, or missing to restore proper fit.

Fix burners that won't light or have weak flames with this gas cooktop burner tube. Delivers gas from valve to burner for proper heat distribution.

This replacement tube routes water from the refrigerator's supply to the ice maker and dispenser so the ice maker fills properly and the dispenser delivers water. It restores proper water delivery when the original tube is cracked, bent or clogged. What it does

• Carries water from the internal supply line to the ice maker and dispenser
• Replaces cracked, kinked or deteriorated tubing that can restrict flow or leak
• Helps stop intermittent filling or slow water flow to the ice maker
• Prevents leaks and water damage caused by split or brittle tubing

• Disconnect power and shut off the household water supply before starting.
• Remove interior panels as needed to access the tubing and note routing before removal.
• Use proper fittings and tighten to OEM torque; replace any worn O-rings or clamps.
• After installation, restore water and power, then check all connections for leaks and verify ice maker/dispenser operation.

Gas cooktop burner tube that connects the gas valve to the burner assembly. Replace if cracked, corroded, or showing signs of gas leakage or wear.

Replacement tube for gas cooktops. Installs in the burner assembly to direct gas flow. Order a new part if your current tube is cracked or damaged.

Regulates gas flow and pressure to your cooktop burners. Replace if damaged, worn, or if gas won't flow properly through the regulator assembly.

Elbow fitting for cooktop gas supply lines. Replaces cracked, damaged, or missing elbow connectors that attach gas tubing at angled joints.

Replace worn cooktop shaft bushings to reduce friction and restore smooth operation. This sleeve supports rotating components for quiet performance. Confirm fit with your model number.

Converting your gas cooktop from natural gas to liquid propane? This LP conversion kit includes all orifices and components needed for safe burner operation.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp

This bracket provides a secure mounting point for the appliance's internal or external component, restoring proper alignment and support. Replaces worn, bent, or broken brackets to reduce vibration and prevent loose panels. What it does:

• Secures panels or components to the appliance frame for stable operation
• Restores proper alignment to eliminate rattling or shifting parts
• Prevents stress on adjacent fasteners and components that can cause wear
• Serves as a direct replacement for the OEM bracket when damaged

• Bracket

• Disconnect power and water before beginning any repair
• Use the correct-size fasteners and mounting holes; do not force the part into place
• Wear gloves to protect hands from sharp edges and use caution when handling metal parts
• After installation, verify panels/components are aligned and the appliance operates normally

Wiring harness for cooktops. Connects electrical components within the cooktop assembly. Replace if wires are frayed, connectors are damaged, or broken.
