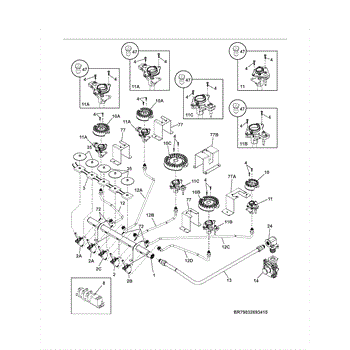

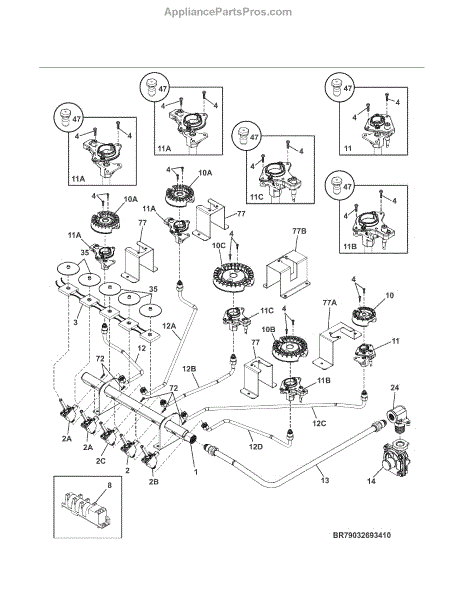

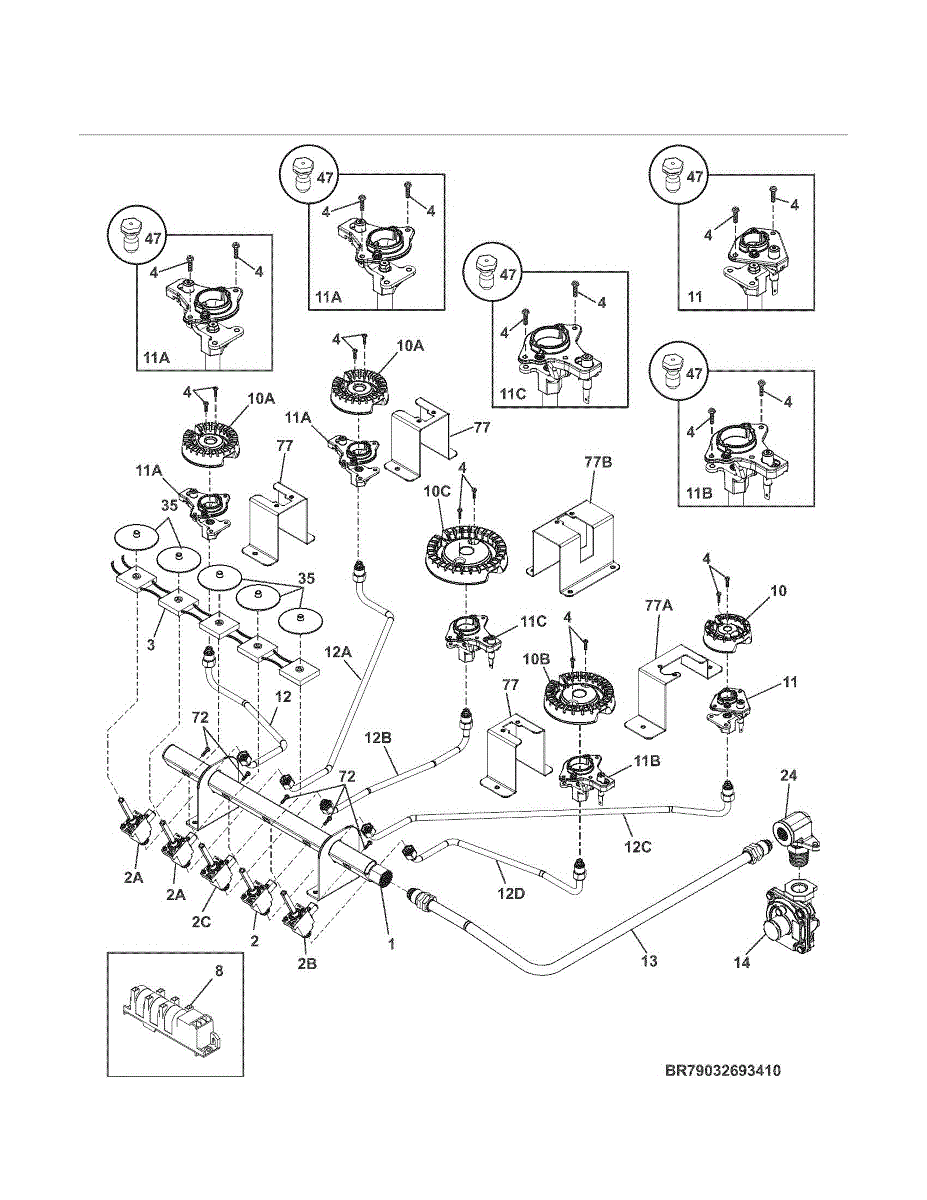

Parts for Kenmore 790.32693410 (79032693410, 790 32693410): Burner Parts

Gas not flowing to burners or uneven flames? This cooktop gas manifold distributes gas to all burners. Intermediate repair requiring basic hand tools.

Fix burner not igniting or flame issues with this cooktop top valve. Controls gas flow to burners. Common repair for inconsistent heating problems.

If your cooktop burner won't light, stays on high, or has weak flame, the burner valve likely needs replacement. This part controls gas flow to restore safe, adjustable heat.

Burner won't light or flame is weak? This top burner valve controls gas flow to restore proper ignition and flame adjustment on your gas range.

Burner won't light or flame height won't adjust? This top burner valve controls gas flow to restore reliable ignition and precise flame control.

This electromechanical switch assembly controls a specific user or internal function and restores reliable on/off or selection response. Replace a worn or damaged switch assembly to regain proper control and appliance usability. What it does:

• Acts as the electrical switching component for the appliance control circuit
• Enables user input to be registered (on/off or selection) and sent to the control system
• Common symptom: appliance won't respond when a control is pressed or switched
• Common symptom: intermittent or non-working control operation, no clicking or circuit continuity when activated

• Disconnect power before accessing or replacing the switch to avoid shock
• Access panel or control bezel removal may be required
• Handle wiring connections carefully; match terminals and secure connectors

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This assembly combines the spark igniter and orifice holder for a 9,500-BTU cooktop surface burner. The igniter creates the spark to light the gas, while the orifice holder meters the correct gas flow to the burner. Replace this assembly if the burner won't ignite, clicks without lighting, or produces an uneven or weak flame.

This ignitor orifice assembly positions the oven burner orifice and supports proper ignition for gas ovens. Replacing a worn assembly can restore reliable burner lighting and help the oven reach and hold temperature. What it does:

• Secures and aligns the burner orifice so gas flows correctly to the ignitor/pilot
• Enables consistent ignition of the oven burner
• Helps resolve symptoms like the oven failing to light, repeated clicking without ignition, or an unstable/weak flame
• Works as a direct replacement for the oven's original orifice/ignitor mounting component

• Turn off gas supply and disconnect power before beginning any work.
• Basic hand tools are typically required; follow OEM instructions for safe removal and reinstallation.
• If you smell gas, stop immediately.

This ignitor orifice assembly directs gas flow to the oven/burner igniter for reliable ignition and consistent flames. It replaces worn or clogged orifice parts to restore normal ignition performance. What it does:

• Regulates and channels gas to the igniter so the burner/oven will light
• Helps produce a steady, consistent flame for proper cooking temperatures
• Common repair when a burner or oven fails to ignite or has weak flame
• Prevents irregular ignition caused by damaged or blocked orifice passages

• One ignitor orifice assembly

• Turn off the appliance power and shut off the gas supply before starting
• Inspect fittings and seals for damage and test for leaks after installation (use approved leak-detection methods)
• Use appropriate tools and follow the appliance service manual for removal and reassembly

Gas cooktop burner tube that connects the gas valve to the burner assembly. Replace if cracked, corroded, or showing signs of gas leakage or wear.

Fix burners that won't light or have weak flames with this gas cooktop burner tube. Delivers gas from valve to burner for proper heat distribution.

Tube component for gas cooktops. Installs internally to route gas or connect burner components. Replace if cracked, damaged, or missing to restore proper fit.

This replacement tube routes water from the refrigerator's supply to the ice maker and dispenser so the ice maker fills properly and the dispenser delivers water. It restores proper water delivery when the original tube is cracked, bent or clogged. What it does

• Carries water from the internal supply line to the ice maker and dispenser
• Replaces cracked, kinked or deteriorated tubing that can restrict flow or leak
• Helps stop intermittent filling or slow water flow to the ice maker
• Prevents leaks and water damage caused by split or brittle tubing

• Disconnect power and shut off the household water supply before starting.
• Remove interior panels as needed to access the tubing and note routing before removal.
• Use proper fittings and tighten to OEM torque; replace any worn O-rings or clamps.
• After installation, restore water and power, then check all connections for leaks and verify ice maker/dispenser operation.

Replacement tube for gas cooktops. Installs in the burner assembly to direct gas flow. Order a new part if your current tube is cracked or damaged.

Regulates gas flow and pressure to your cooktop burners. Replace if damaged, worn, or if gas won't flow properly through the regulator assembly.

Elbow fitting for cooktop gas supply lines. Replaces cracked, damaged, or missing elbow connectors that attach gas tubing at angled joints.

Replace worn cooktop shaft bushings to reduce friction and restore smooth operation. This sleeve supports rotating components for quiet performance. Confirm fit with your model number.

Convert your natural gas cooktop to liquid propane with this LP conversion kit. Includes orifices and fittings needed for safe fuel type conversion.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

This bracket provides a secure mounting point for the appliance's internal or external component, restoring proper alignment and support. Replaces worn, bent, or broken brackets to reduce vibration and prevent loose panels. What it does:

• Secures panels or components to the appliance frame for stable operation
• Restores proper alignment to eliminate rattling or shifting parts
• Prevents stress on adjacent fasteners and components that can cause wear
• Serves as a direct replacement for the OEM bracket when damaged

• Bracket

• Disconnect power and water before beginning any repair
• Use the correct-size fasteners and mounting holes; do not force the part into place
• Wear gloves to protect hands from sharp edges and use caution when handling metal parts
• After installation, verify panels/components are aligned and the appliance operates normally

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp

Wiring harness for cooktops. Connects electrical components within the cooktop assembly. Replace if wires are frayed, connectors are damaged, or broken.
