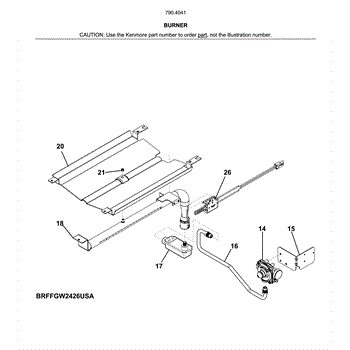

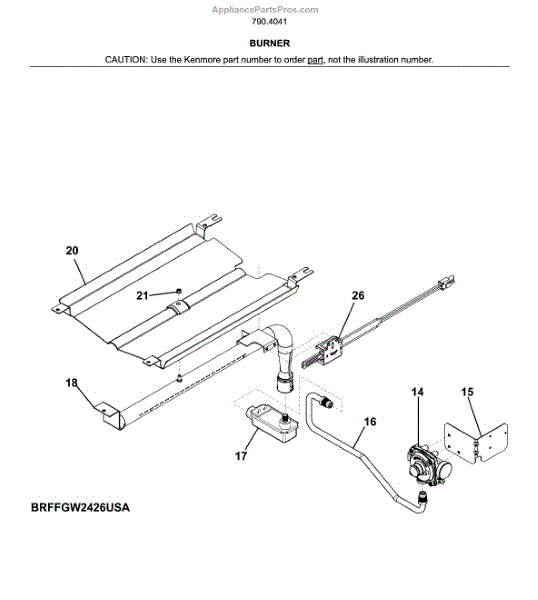

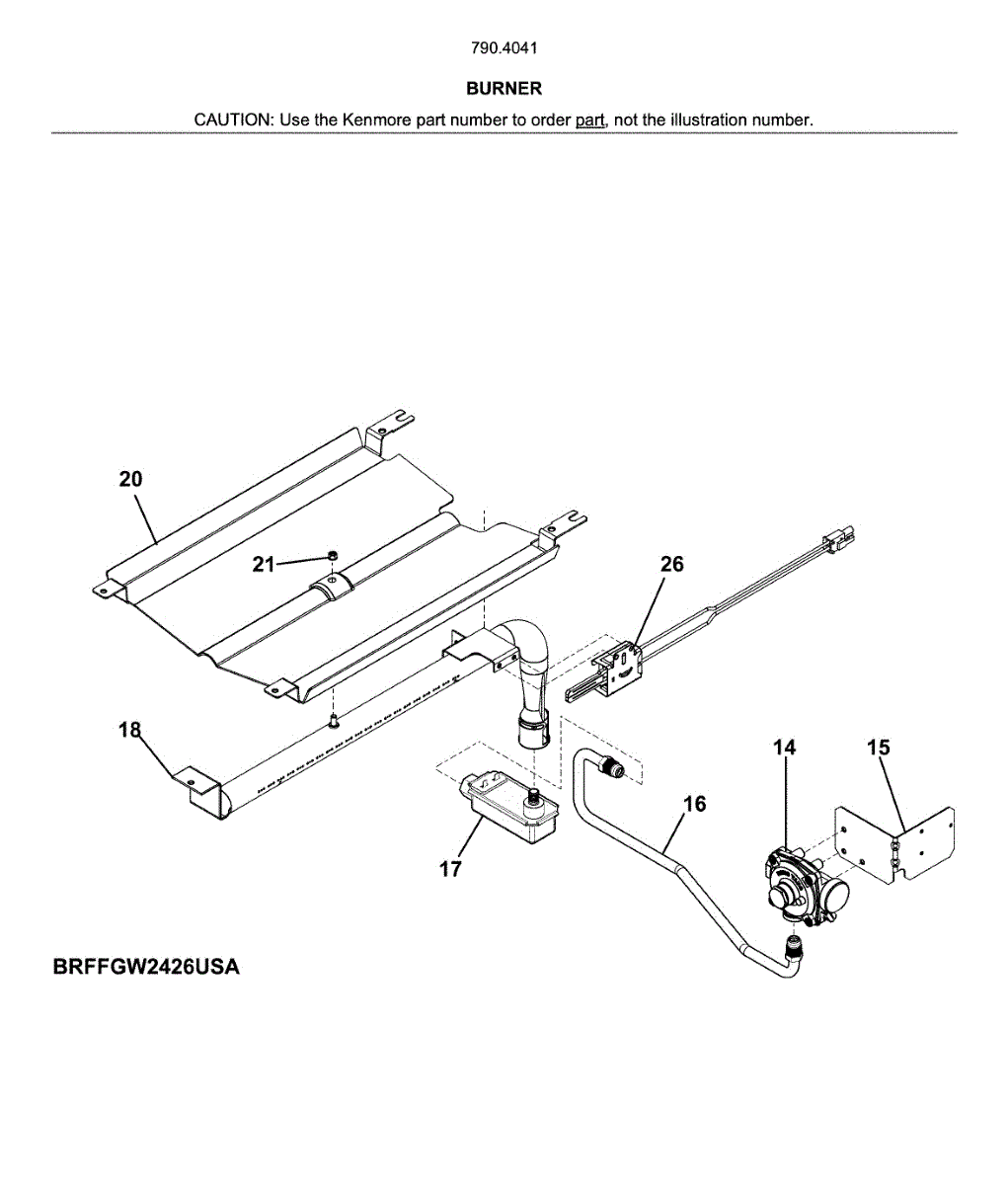

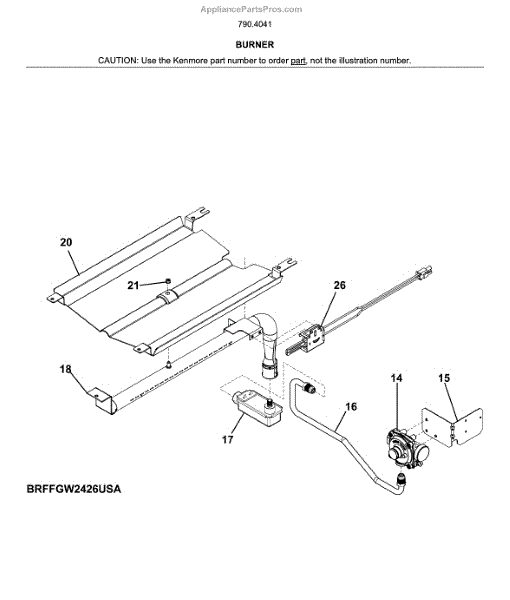

Parts for Kenmore 790.40419810 (79040419810, 790 40419810): Burner Parts

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bracket is bent, cracked, or missing to ensure proper installation.

The Wall Oven Safety Valve is an OEM part for Frigidaire wall ovens. It is a component designed to safely vent excess pressure caused by gas combustion within the oven cavity during cooking. The safety valve vents at a calibrated pressure threshold to avoid hazards from gas accumulation.

Symptoms of a bad safety valve include:

• Inability to reach or maintain proper oven temperatures
• Gas or pressure leaks from the oven or valve area
• Excessive flame or burners that will not extinguish properly

Causes can be wear from age and regular oven use, residue buildup inhibiting valve function, or physical damage impairing the valve's calibrated venting ability.

This OEM Frigidaire replacement valve is also compatible with some Electrolux, Dacor, and Kenmore wall oven models.

This replacement surface burner restores stovetop heating for electric ranges, providing a direct, reliable heat source for pots and pans. Designed to match the original element shape and fit for a straightforward swap. What it does:

• Heats cookware on the cooktop so you can boil, simmer, and sauté
• Replaces a cracked, warped, or non-heating burner element
• Addresses symptoms such as little or no heat, intermittent heating, or uneven hot spots
• Works with the existing burner receptacle and cooktop cutout when the correct element is used

• One round surface burner element

• Disconnect power to the range before servicing to avoid electrical shock
• Remove the cooktop or lift the burner assembly per your model's service instructions
• Align and seat the element into the socket, then secure any mounting clips or screws as originally installed

The Ignitor is an OEM replacement part for Frigidaire gas ranges. Located near the burner heads, this component is responsible for generating the electric spark required to light stove top burners.

Symptoms of a faulty ignitor include:

• Burners that will not light or only light intermittently
• Clicking noises but no flame ignition
• Diminished or no spark from the ignitor itself

Causes of ignitor failure can be an accumulation of deposits over many heating cycles. Physical damage from pots/pans is also possible. As electrical parts, ignitors have a limited lifespan depending on range usage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
