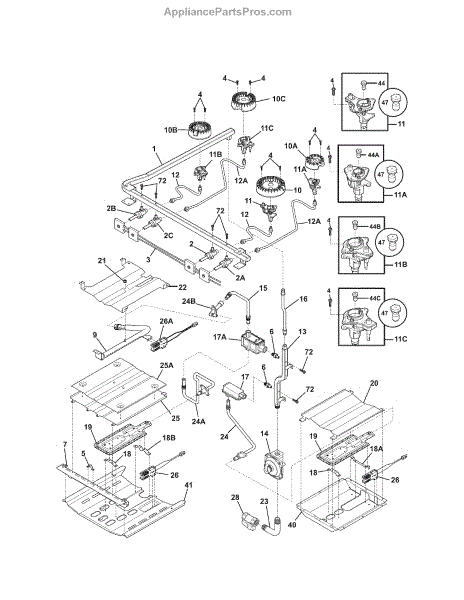

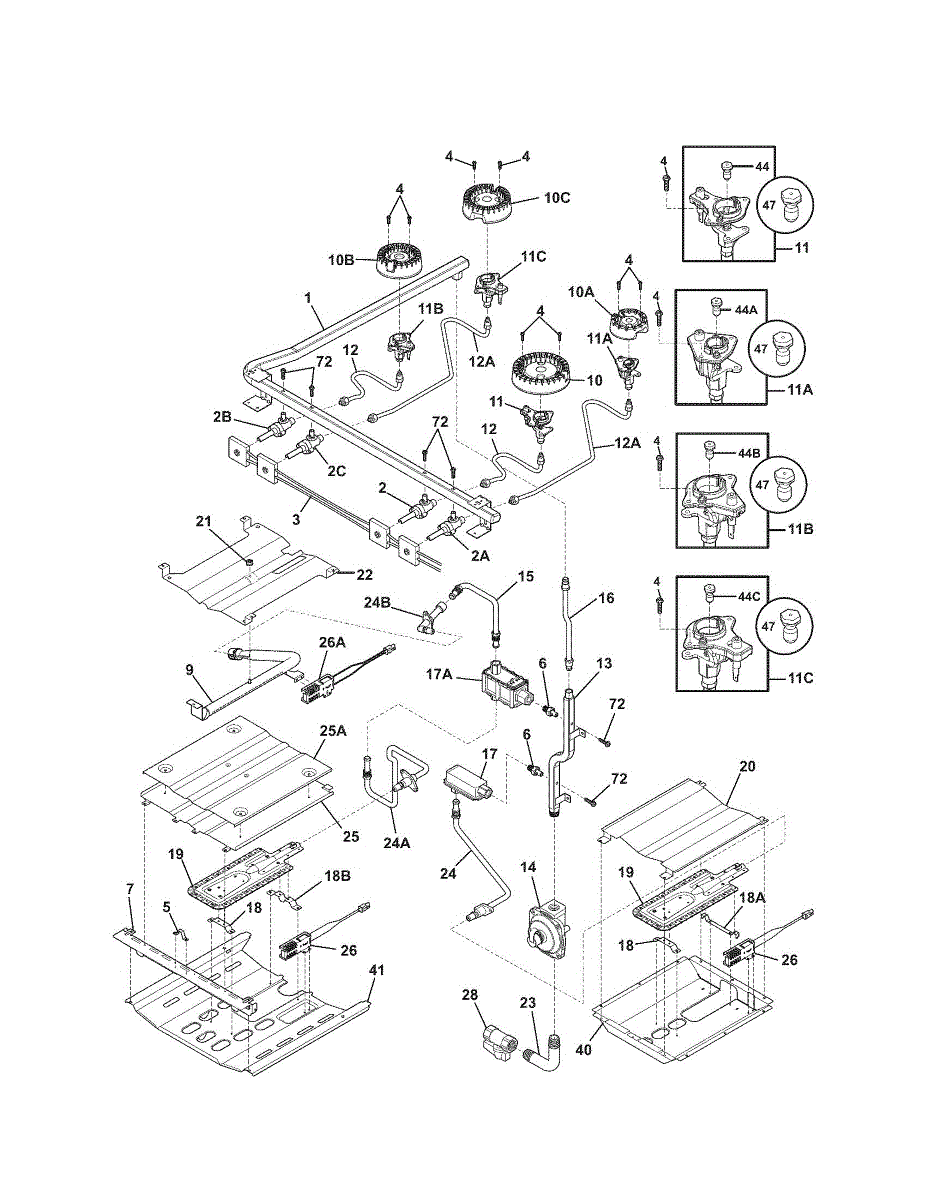

Parts for Kenmore 790.78012002 (79078012002, 790 78012002): Burner Parts

Burner won't ignite or adjust properly? This cooktop top burner valve controls gas flow to individual burners. Moderate DIY repair in 30-45 minutes.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Replace a cracked, damaged, or worn cooktop burner on your gas range. Installs on the stovetop surface to restore stable heating for everyday cooking.

Replaces cracked or corroded sealed burner head on gas ranges and cooktops. Restores proper flame distribution when original part is damaged or clogged.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly replaces the burner gas orifice and ignitor used to light a gas cooktop or range. It restores reliable spark ignition and corrects flame delivery for safer, more consistent burner operation. What it does:

• Provides the ignitor electrode and matched gas orifice to initiate and shape the burner flame
• Helps stop intermittent or no-light conditions caused by a faulty ignitor or clogged orifice
• Can improve weak or uneven flames when the orifice is damaged or misaligned
• Works as a direct replacement assembly for the specified burner configuration

• One ignitor orifice assembly (electrode and orifice preassembled)

• Turn off gas supply and disconnect power before starting any repair
• Use proper tools to remove the burner cap and access the assembly; handle the ignitor electrode carefully to avoid damage
• Verify correct alignment and secure the assembly per manufacturer torque recommendations; test for proper ignition and gas leaks after installation

This assembly combines the spark ignitor that lights the gas burner with the orifice that controls gas flow to create the flame pattern. Located beneath each surface burner on gas ranges, replacement is needed if the burner won't light, has weak ignition, or produces an irregular flame pattern.

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

This replacement water tube delivers water from the household supply to the ice maker, restoring reliable filling and ice production. It replaces worn or cracked tubing that can cause leaks or prevent the ice maker from filling. What it does:

• Carries water to the ice maker fill valve so the ice maker can fill and form ice
• Stops and helps prevent leaks caused by cracked or brittle tubing
• Restores normal ice production when a damaged tube is keeping the ice maker from filling
• Helps ensure consistent dispenser or fill-line water flow when properly connected

• Turn off the refrigerator power and shut off the water supply before starting.
• Disconnect the ice maker and remove access panels as needed to reach the tube.
• Inspect fittings and replace any damaged clamps or seals; tighten connections to manufacturer torque where specified.
• After installation, restore water and power, then check carefully for leaks and confirm the ice maker fills normally.

Controls gas flow to your range's burner system for steady flames and consistent heat. Replace if regulator is worn, damaged, or failed to restore proper fuel delivery.

This is a gas safety valve for the upper oven section of a gas range. It regulates the flow of gas to the oven burner and shuts off the gas supply if the igniter fails to reach proper temperature, preventing dangerous gas buildup. Replace this valve if the oven will not heat, takes too long to ignite, or if you smell gas when the oven is turned on.

This is a gas safety valve designed for the lower oven compartment of a gas range. It controls the flow of gas to the lower oven burner, opening only when the igniter reaches the proper temperature. Replace this valve if the lower oven fails to ignite, heats inconsistently, or if you smell gas when the oven is turned off.

This replacement surface burner provides the heating element for electric cooktops so you can restore cooking performance. It fits the cooktop's receptacle and delivers stovetop heat for everyday cooking tasks. What it does

• Heats cookware on the cooktop for boiling, frying, simmering and other cooking.
• Replaces a worn or non-working surface element to restore even heating.
• Common symptoms: burner won't heat, takes too long to heat, or heats unevenly.
• Works with the cooktop receptacle and control switch to regulate temperature.

• One surface burner element.

• Disconnect power at the breaker before installing to avoid electrical shock.
• Handle the element carefully; glass-ceramic cooktops and terminals can be fragile.
• After installation, restore power and test the element on low and high settings.

This baffle installs beneath the range burner to distribute heat evenly across the cooktop. Replace if cracked, warped, or corroded to restore proper flame spread.

This baffle is the airflow deflector that helps direct cold air inside the freezer or refrigerator compartment for more even cooling and reduced frost buildup. It replaces a damaged or missing baffle to restore proper airflow control. What it does

• Directs and distributes cold air within the compartment to help maintain consistent temperatures
• Helps prevent localized frost buildup by channeling airflow away from sensitive areas
• Restores proper circulation when the original baffle is cracked, warped, or missing
• Works with existing ducts, fans, and seals to support normal cooling performance

• One replacement baffle

• Disconnect power to the appliance before starting any repair
• Remove shelves or drawers as needed to access mounting tabs or screws
• Align tabs or mounting points and secure the baffle without forcing it to avoid breaking clips
• If clips or fasteners are damaged, replace them before completing reassembly

Replace a cracked, corroded, or damaged gas manifold pipe on your range. This tube connects gas supply components and ensures proper gas flow distribution.

Burner flame spreader baffle for gas ranges. Distributes flame evenly across the burner. Replace if cracked, warped, rusted, or missing.

Fix burners that won't light or click constantly with this surface burner igniter. Produces the spark needed to ignite gas when you turn the knob.

This is an oven bake igniter that mounts inside the oven compartment near the bake burner. It draws electrical current to heat up and open the gas valve, allowing the bake burner to light. Replace this part if your oven takes a long time to heat up, doesn't reach the set temperature, or fails to ignite at all.

This is a gas shut-off valve used in gas ranges and ovens to control the flow of gas to the burners or oven. It opens and closes to allow or stop gas flow as needed during normal operation. Replace this valve if you detect a gas smell near the range, if a burner won't light or won't shut off completely, or if the valve is visibly damaged or leaking.

Natural gas burner orifice meters gas flow to range burners. Replace worn or clogged orifices for stable flame. Used for LP to natural gas conversions.

Meters gas flow to your range or cooktop burner for proper flame size. Replace worn, clogged, or missing orifices or when converting between propane and natural gas.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
