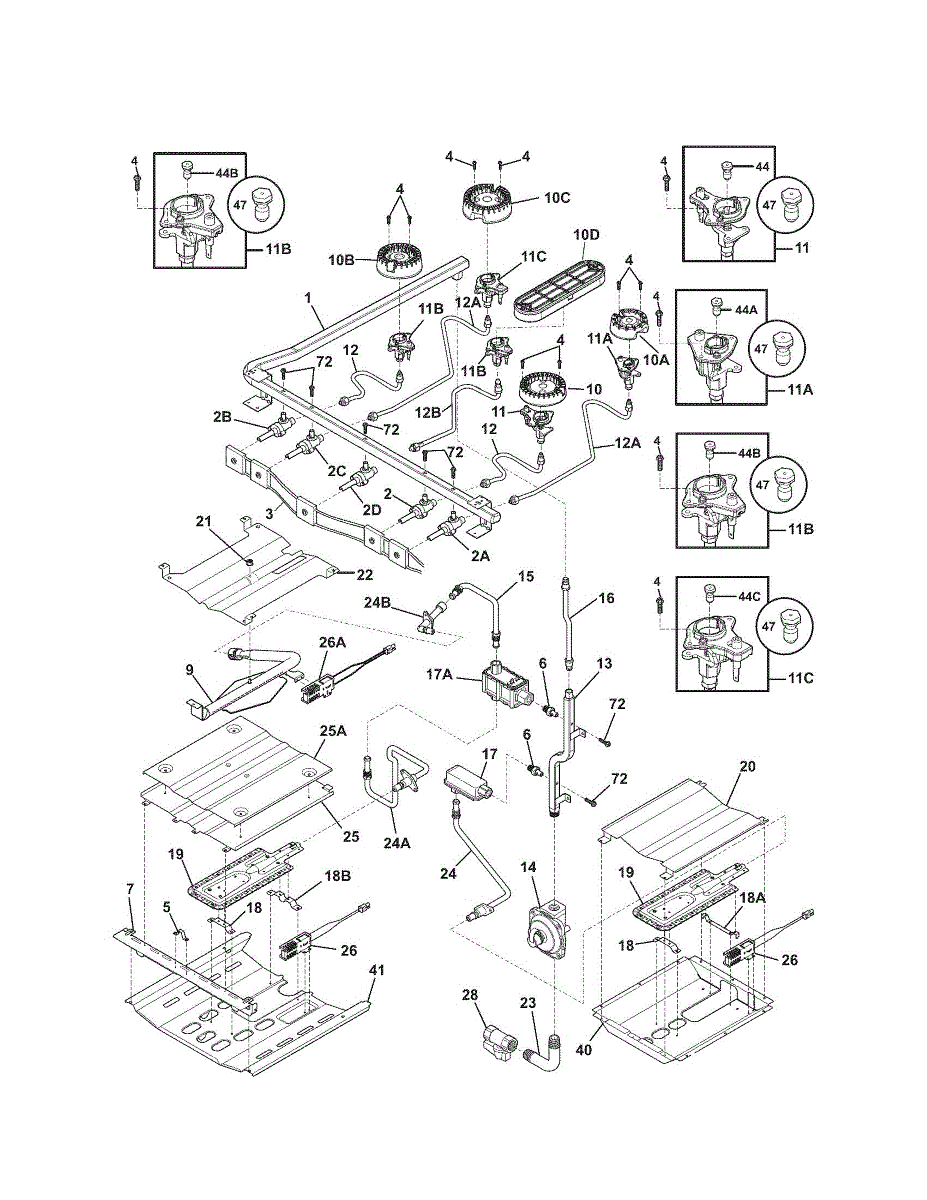

Parts for Kenmore 790.78902001 (79078902001, 790 78902001): Burner Parts

Burner won't ignite or adjust properly? This cooktop top burner valve controls gas flow to individual burners. Moderate DIY repair in 30-45 minutes.

Fix a burner that won't ignite, stays on high, or won't adjust temperature with this cooktop top burner valve. Moderate DIY repair for gas ranges.

Fix a burner that won't light, won't adjust heat levels, or stays on constantly with this range top burner valve. Moderate DIY repair in 30-45 minutes.

Replace your range's damaged or frayed wiring harness. This internal wire assembly connects electrical components. Needed when wires are worn or broken.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

This is the broil burner element located in the upper oven cavity of a double oven range. It provides the high, direct heat from above used for broiling foods. Replace this element if the broiler does not heat, heats unevenly, or if you notice visible damage such as cracks, blistering, or burn spots on the element.

Replacement surface burner for gas range cooktops. Installs directly onto the burner base. Order when your existing burner is cracked, clogged, or missing.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

This is a combined igniter and orifice holder assembly that mounts beneath a surface burner on a gas range. It positions the spark igniter and gas orifice correctly so the burner lights and produces a proper flame. Replace this assembly if a burner fails to ignite, clicks without lighting, or produces an uneven or weak flame.

This replacement water tube delivers water from the household supply to the ice maker, restoring reliable filling and ice production. It replaces worn or cracked tubing that can cause leaks or prevent the ice maker from filling. What it does:

• Carries water to the ice maker fill valve so the ice maker can fill and form ice
• Stops and helps prevent leaks caused by cracked or brittle tubing
• Restores normal ice production when a damaged tube is keeping the ice maker from filling
• Helps ensure consistent dispenser or fill-line water flow when properly connected

• Turn off the refrigerator power and shut off the water supply before starting.
• Disconnect the ice maker and remove access panels as needed to reach the tube.
• Inspect fittings and replace any damaged clamps or seals; tighten connections to manufacturer torque where specified.
• After installation, restore water and power, then check carefully for leaks and confirm the ice maker fills normally.

Controls gas flow to your range's burner system for steady flames and consistent heat. Replace if regulator is worn, damaged, or failed to restore proper fuel delivery.

This is a gas safety valve for the upper oven section of a gas range. It regulates the flow of gas to the oven burner and shuts off the gas supply if the igniter fails to reach proper temperature, preventing dangerous gas buildup. Replace this valve if the oven will not heat, takes too long to ignite, or if you smell gas when the oven is turned on.

This is a gas safety valve designed for the lower oven compartment of a gas range. It controls the flow of gas to the lower oven burner, opening only when the igniter reaches the proper temperature. Replace this valve if the lower oven fails to ignite, heats inconsistently, or if you smell gas when the oven is turned off.

This replacement surface burner provides the heating element for electric cooktops so you can restore cooking performance. It fits the cooktop's receptacle and delivers stovetop heat for everyday cooking tasks. What it does

• Heats cookware on the cooktop for boiling, frying, simmering and other cooking.
• Replaces a worn or non-working surface element to restore even heating.
• Common symptoms: burner won't heat, takes too long to heat, or heats unevenly.
• Works with the cooktop receptacle and control switch to regulate temperature.

• One surface burner element.

• Disconnect power at the breaker before installing to avoid electrical shock.
• Handle the element carefully; glass-ceramic cooktops and terminals can be fragile.
• After installation, restore power and test the element on low and high settings.

This baffle installs beneath the range burner to distribute heat evenly across the cooktop. Replace if cracked, warped, or corroded to restore proper flame spread.

This baffle is the airflow deflector that helps direct cold air inside the freezer or refrigerator compartment for more even cooling and reduced frost buildup. It replaces a damaged or missing baffle to restore proper airflow control. What it does

• Directs and distributes cold air within the compartment to help maintain consistent temperatures
• Helps prevent localized frost buildup by channeling airflow away from sensitive areas
• Restores proper circulation when the original baffle is cracked, warped, or missing
• Works with existing ducts, fans, and seals to support normal cooling performance

• One replacement baffle

• Disconnect power to the appliance before starting any repair
• Remove shelves or drawers as needed to access mounting tabs or screws
• Align tabs or mounting points and secure the baffle without forcing it to avoid breaking clips
• If clips or fasteners are damaged, replace them before completing reassembly

Replace a cracked, corroded, or damaged gas manifold pipe on your range. This tube connects gas supply components and ensures proper gas flow distribution.

Burner flame spreader baffle for gas ranges. Distributes flame evenly across the burner. Replace if cracked, warped, rusted, or missing.

Fix burners that won't light or click constantly with this surface burner igniter. Produces the spark needed to ignite gas when you turn the knob.

This is an oven bake igniter that mounts inside the oven compartment near the bake burner. It draws electrical current to heat up and open the gas valve, allowing the bake burner to light. Replace this part if your oven takes a long time to heat up, doesn't reach the set temperature, or fails to ignite at all.

This is a gas shut-off valve used in gas ranges and ovens to control the flow of gas to the burners or oven. It opens and closes to allow or stop gas flow as needed during normal operation. Replace this valve if you detect a gas smell near the range, if a burner won't light or won't shut off completely, or if the valve is visibly damaged or leaking.

This is a combined igniter and orifice holder assembly that mounts beneath a surface burner on a gas range. It positions the spark igniter and gas orifice correctly so the burner lights and produces a proper flame. Replace this assembly if a burner fails to ignite, clicks without lighting, or produces an uneven or weak flame.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Converts your gas range from natural gas to LP (propane) fuel. Includes orifices and components for burners and oven. Replace when switching fuel types.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

The Wiring Harness is an OEM component specially designed for Frigidaire gas ranges. Comprising bundled electrical wires, it powers critical control functions linking internal systems.

Continuous vibration from burners and motors fatigues insulation over time risking circuit failures or shorts that limit operations. Performance reliability decreases.

Causes involve normal thermal cycling from gas heating repeatedly flexing harness sheathing. Impacts risk abrading or severing vulnerable conductors.

Symptoms of a bad wiring harness include:

• Unresponsive control panels or display errors
• Individual cooking features ceasing to operate
• Range failing to power on as expected

Replacing with this OEM Frigidaire harness restores integrated range functionality. Compatibility also fits some Kenmore, Gibson, and Electrolux appliances preserving safe, optimized performance for years through authorized maintenance.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
