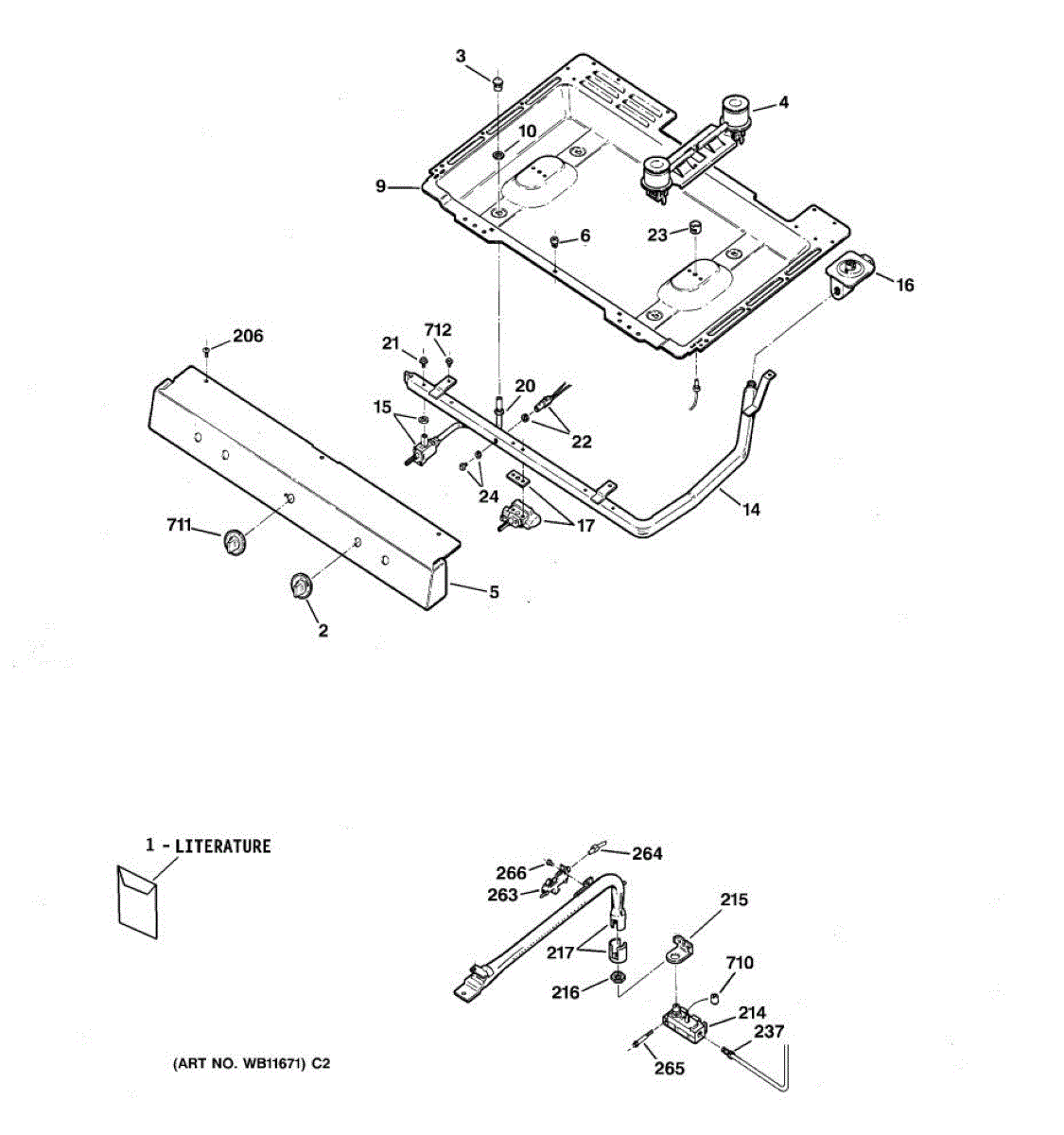

Parts for Ge JGBS03PPW1AD: 01 - Gas & Burner Parts

Anti-tip kit.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Right rear.

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

Size: 10-32 GXTT FLP.595 S

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.
