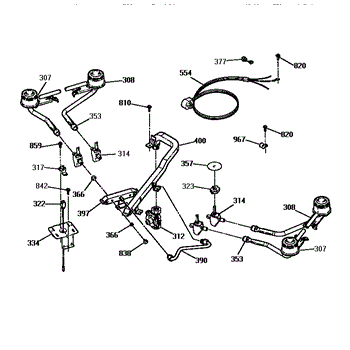

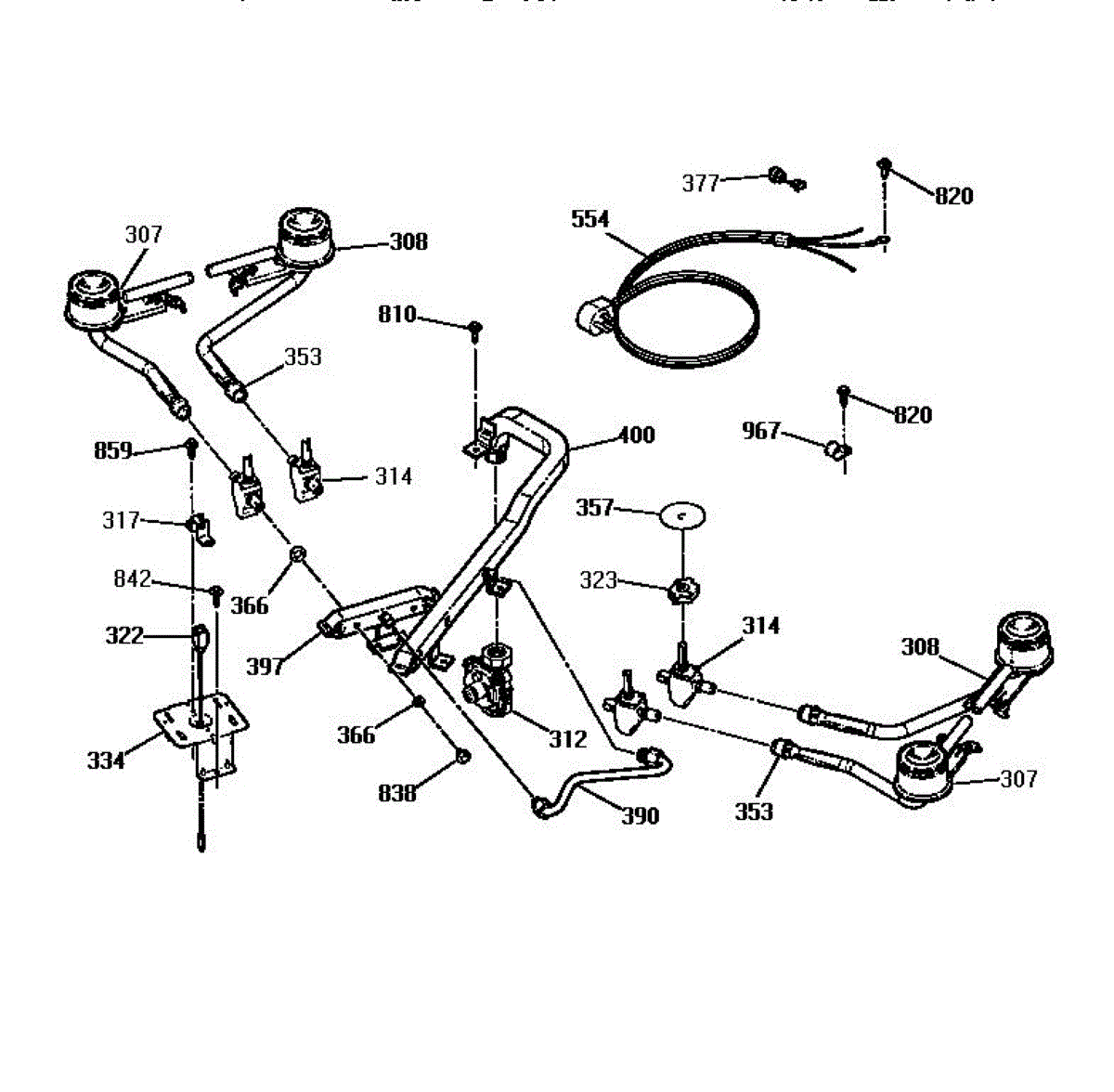

Parts for Kenmore 911.3302190 (9113302190, 911 3302190): Burner Section Parts

This surface burner valve switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a faulty switch restores consistent clicking and reliable ignition on the affected cooktop burner. What it does:

• Mounts to the surface burner gas valve and closes the ignition circuit when the knob is turned to Lite
• Sends power to the spark module to create the clicking needed to ignite the flame
• Symptoms may include: burner won't spark, intermittent ignition, continuous clicking with knobs off, or a burner lights only when another knob is turned

• One valve switch

• Disconnect electrical power and shut off gas supply; allow the cooktop/range to cool
• Remove the knob and front panel or manifold cover to access the valve area
• Note wire positions, transfer the wires to the new switch, and secure it on the valve stem in the same orientation
• Reassemble, restore power and gas, then test burner ignition

Protective shield that installs over gas valve shafts on cooktops. Prevents dust, crumbs, and spills from entering valve mechanisms. Replace if broken or missing.

Seals the valve screw connection on your range to prevent gas leaks. Replace if you notice gas odor or during valve maintenance. Verify fit with your model.

Right angle

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Package of 12

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair.

This printed user manual provides original operating, safety, and maintenance guidance so you can set up and use your appliance correctly and safely. It replaces a lost or damaged owner's manual and helps with everyday care and basic troubleshooting. What it does:

• Explains safety warnings and proper use to reduce risk of injury or damage
• Covers setup and basic operating procedures for the appliance
• Lists routine maintenance and cleaning recommendations to extend service life
• Offers common troubleshooting tips and guidance
• Clarifies control functions and feature descriptions for confident operation

• No tools required; store the manual near the appliance for quick reference
• Follow all safety warnings and disconnect power before servicing the appliance
• Keep this manual for future reference or for new owners
