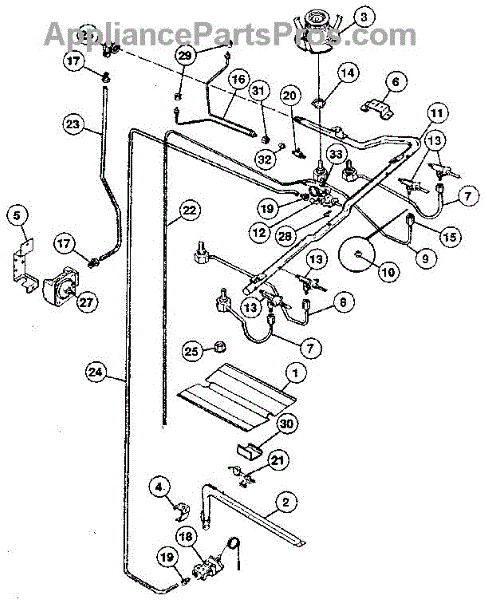

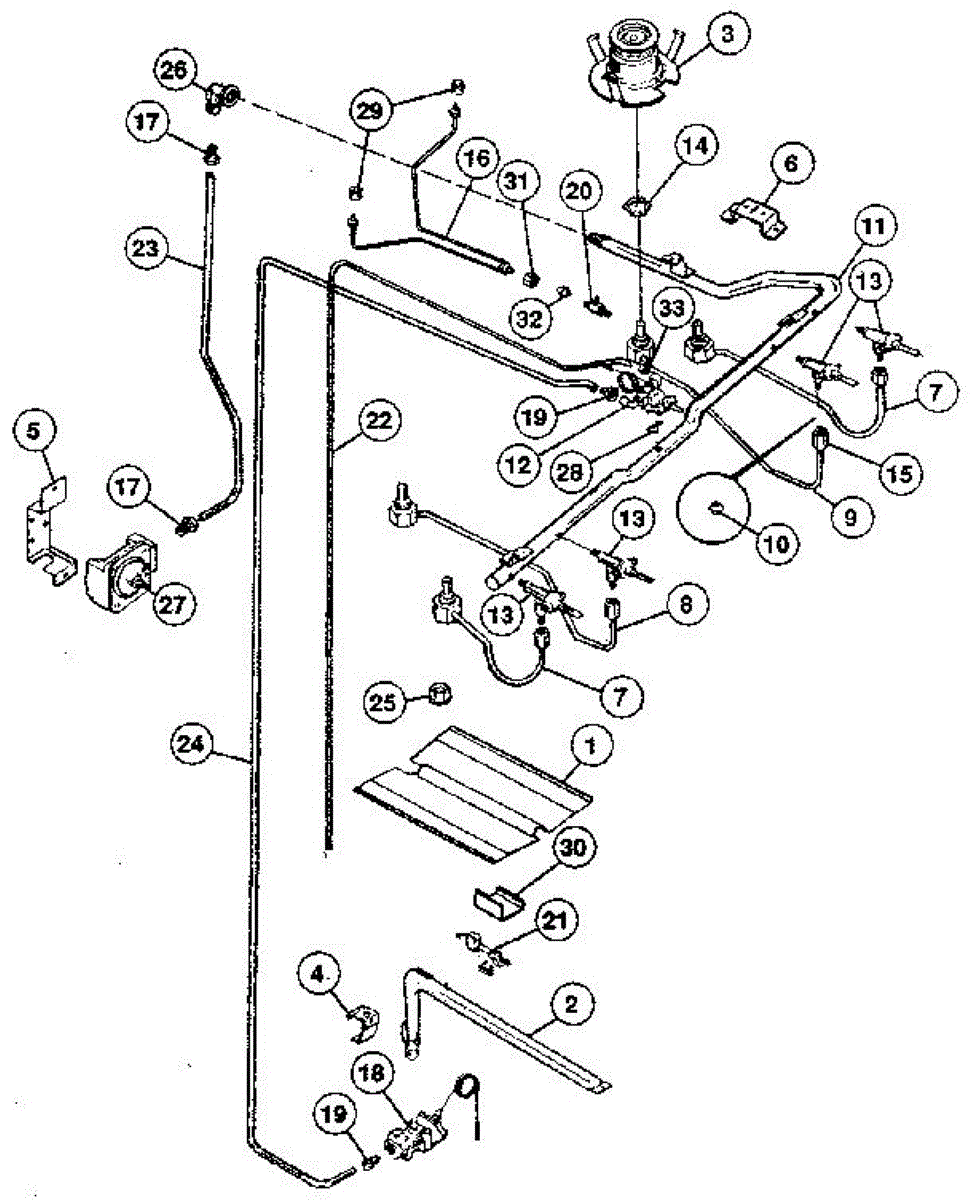

Parts for Kenmore 993.01(1988) (99301(1988), 993 01(1988)): Burner Section Parts

This part has been discontinued by the manufacturer and is no longer available.

By Frigidaire. Fits some Frigidaire and Tappan stoves. Snap-in style.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This ferrule is a small compression fitting used to secure and seal a refrigerator water line connection, helping stop leaks and maintain proper flow to the ice maker or dispenser. It's a simple replacement to restore a tight water connection. What it does:

• Secures tubing to a compression or shutoff fitting to prevent leaks at the connection
• Restores a proper seal for water supply lines feeding the ice maker or dispenser
• Commonly used when a loose, dripping, or leaking water line is present
• Helps prevent water damage from failing or corroded fittings

• One ferrule

• Turn off the water supply and relieve line pressure before servicing
• Confirm tubing is cut square, fully inserted, and the ferrule is seated before tightening
• Tighten fittings per manufacturer guidance; avoid over-tightening which can damage tubing
• After installation, turn water back on and check carefully for leaks

This part has been discontinued by the manufacturer and is no longer available.

This thermal cutoff is a temperature-sensing safety thermostat that helps prevent overheating by interrupting power when excessive heat is detected. Use it to restore proper safety protection in affected appliance heater or control circuits. What it does:

• Monitors temperature and opens the circuit if heat rises above the designed threshold
• Helps prevent overheating-related damage or fire risk in heating systems
• Stops power to heating elements when a fault causes unsafe temperatures
• Commonly used with ovens, dryers, and other heater-equipped appliances as a fail-safe

• One thermal cutoff

• Power must be disconnected before inspection or replacement to avoid shock or injury
• Handle the part carefully and observe wire connection orientation; replace with same type only
• If other components show heat damage, inspect the whole heating circuit and controls

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This elbow is a threaded pipe fitting that redirects and secures a fluid line connection where space or alignment requires a 90° turn. It provides a compact, threaded junction to connect compatible appliance tubing or hose to a valve or port. What it does:

• Connects two threaded line ends at a 90° angle for tight routing in confined spaces
• Provides a sealed, threaded junction between a 1/2 in. NPT inlet and a 9/16-24 threaded outlet
• Helps stop leaks and maintains proper line alignment when the original elbow is worn or damaged
• Commonly used where a bent or cramped connection prevents a straight coupling

• One elbow fitting (1/2 in. NPT x 9/16-24)

• Turn off and depressurize the water supply (or system) before removing or installing fittings
• Start threads by hand to avoid cross-threading; tighten with appropriate wrench until snug
• Use plumber's tape or thread sealant only if specified by the appliance manufacturer

Pilot orifice for gas ranges and cooktops. Installs in the pilot assembly to regulate gas flow. Replace if clogged, damaged, or missing.

This part has been discontinued by the manufacturer and is no longer available.

Compression nut secures the pilot assembly on gas range burners. Replace if stripped, corroded, or missing to properly fasten pilot tube connections.

Pilot ferrule for gas ranges and cooktops. Connects pilot assembly components. Replace if cracked, corroded, or missing to restore proper fit.

This part has been discontinued by the manufacturer and is no longer available.

Black hinge washer for electric and gas ranges. Replaces worn, cracked, or missing washers on door hinges to ensure proper door alignment and support.

Specs: 8 - 18 x 0.500
