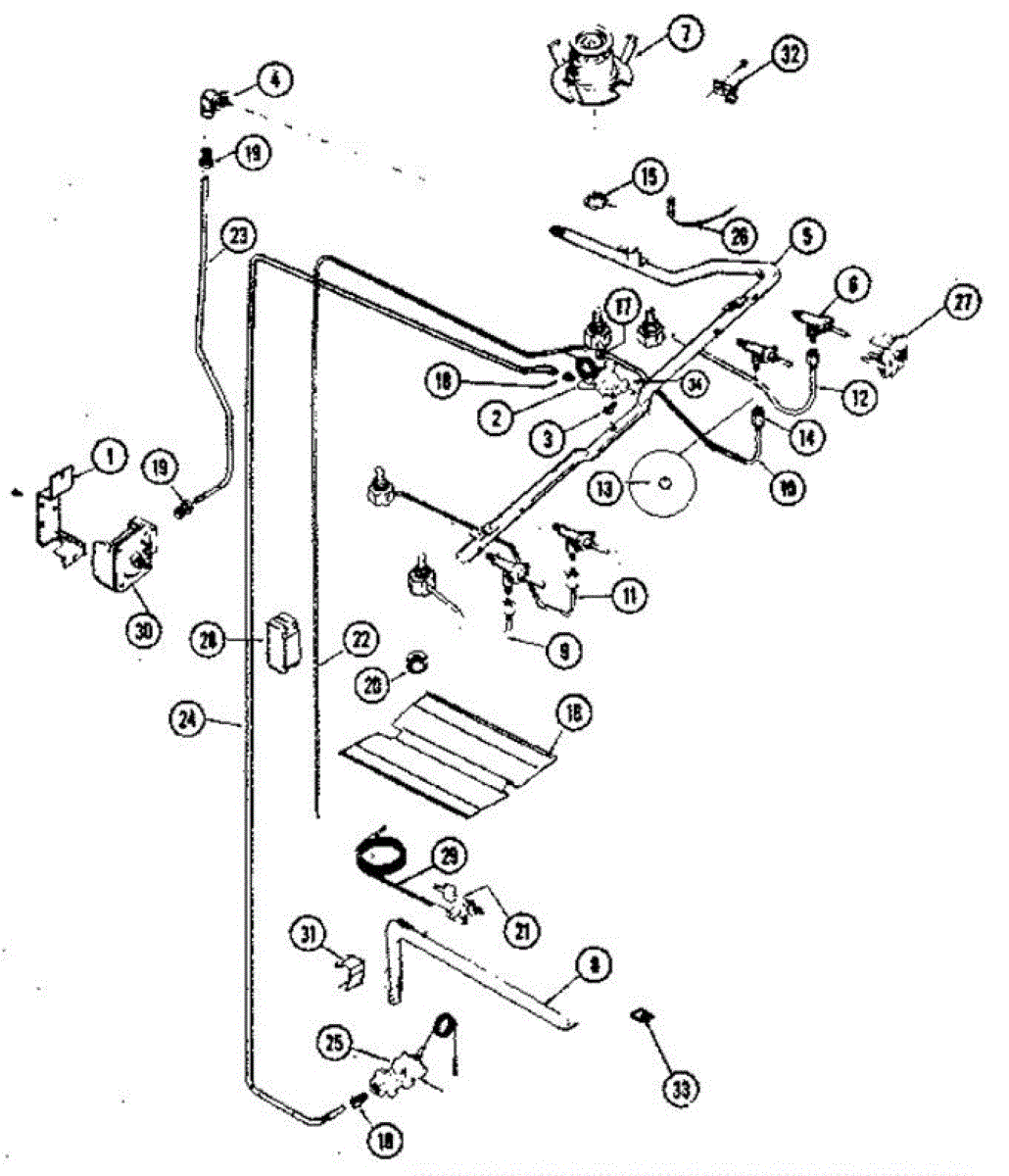

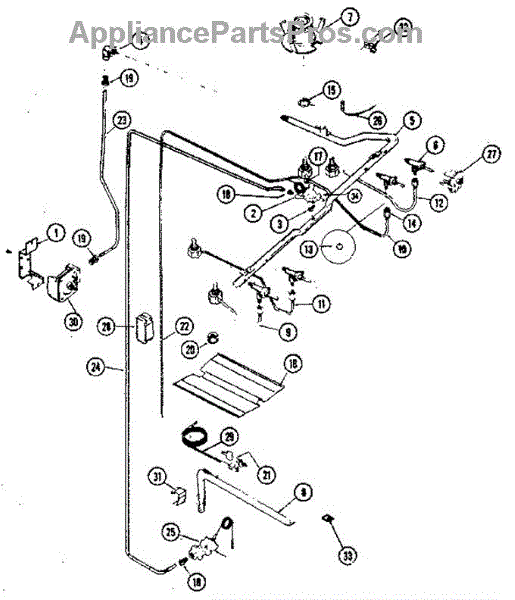

Parts for Tappan 30-3348-01: Burner Section Parts

This part has been discontinued by the manufacturer and is no longer available.

This elbow is a threaded pipe fitting that redirects and secures a fluid line connection where space or alignment requires a 90° turn. It provides a compact, threaded junction to connect compatible appliance tubing or hose to a valve or port. What it does:

• Connects two threaded line ends at a 90° angle for tight routing in confined spaces
• Provides a sealed, threaded junction between a 1/2 in. NPT inlet and a 9/16-24 threaded outlet
• Helps stop leaks and maintains proper line alignment when the original elbow is worn or damaged
• Commonly used where a bent or cramped connection prevents a straight coupling

• One elbow fitting (1/2 in. NPT x 9/16-24)

• Turn off and depressurize the water supply (or system) before removing or installing fittings
• Start threads by hand to avoid cross-threading; tighten with appropriate wrench until snug
• Use plumber's tape or thread sealant only if specified by the appliance manufacturer

By Frigidaire. Fits some Frigidaire and Tappan stoves. Snap-in style.

This part has been discontinued by the manufacturer and is no longer available.

This ferrule is a small compression fitting used to secure and seal a refrigerator water line connection, helping stop leaks and maintain proper flow to the ice maker or dispenser. It's a simple replacement to restore a tight water connection. What it does:

• Secures tubing to a compression or shutoff fitting to prevent leaks at the connection
• Restores a proper seal for water supply lines feeding the ice maker or dispenser
• Commonly used when a loose, dripping, or leaking water line is present
• Helps prevent water damage from failing or corroded fittings

• One ferrule

• Turn off the water supply and relieve line pressure before servicing
• Confirm tubing is cut square, fully inserted, and the ferrule is seated before tightening
• Tighten fittings per manufacturer guidance; avoid over-tightening which can damage tubing
• After installation, turn water back on and check carefully for leaks

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This is a gas valve for a range or oven that controls the flow of gas to a burner. It opens and closes to regulate gas delivery when the burner knob is turned or when the oven thermostat calls for heat. Replace this valve if a burner fails to ignite, produces an uneven flame, leaks gas, or does not shut off properly.

Gas burner won't light or clicks but doesn't ignite? Replace the igniter switch to restore spark and reliable lighting. Simple 15-30 minute DIY fix.

If your gas range burners won't ignite or clicking continues after lighting, the spark module may have failed. A moderately difficult repair.
