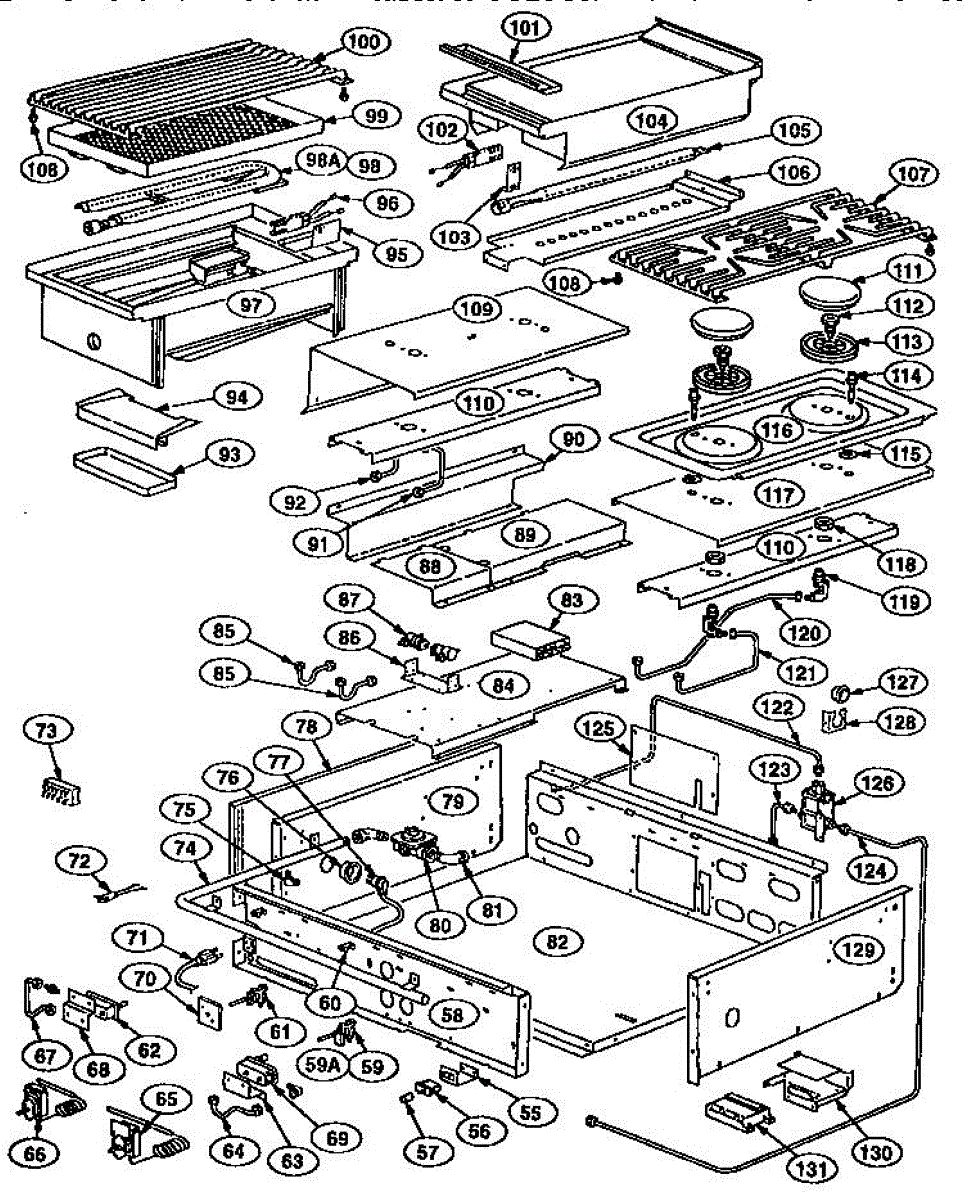

Parts for Thermador PRSG364GLS: Burner Section Parts

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation

The Spark Module is an OEM part Bosch ranges and cooktops. This electronic part generates the high-voltage spark needed to reliably ignite the gas burners with the push of a button.

Causes can be issues like component failure over the thousands of ignitions it facilitates. Water ingress could also potentially cause problems.

Symptoms of a bad spark module include:

• Unreliable or intermittent burner ignition requiring multiple ignition button presses
• One or more burners that will not ignite at all
• Occasionally flashing or error codes relating to ignition issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Spark Module is an OEM part Bosch ranges and cooktops. This electronic part generates the high-voltage spark needed to reliably ignite the gas burners with the push of a button.

Causes can be issues like component failure over the thousands of ignitions it facilitates. Water ingress could also potentially cause problems.

Symptoms of a bad spark module include:

• Unreliable or intermittent burner ignition requiring multiple ignition button presses
• One or more burners that will not ignite at all
• Occasionally flashing or error codes relating to ignition issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This 1/4" gas supply tubing connects the appliance's gas line to the valve, providing a secure path for fuel so the unit can ignite and operate safely. Use when tubing is damaged, leaking, or replaced during valve service. What it does:

• Channels natural gas/LP from the household supply to the appliance valve
• Replaces cracked, corroded, or bent tubing that can cause leaks
• Helps stop symptoms like a persistent gas smell, failure to ignite, or intermittent burner operation
• Works with the appliance's inlet and control valve fittings to maintain proper gas flow

• Turn off the gas supply and electrical power before starting work
• Use approved fittings, thread sealant rated for gas, and test all connections for leaks after installation
• Do not modify or reuse damaged tubing; replace with exact-fit parts

The Gas Valve Cooktop is an OEM part for Bosch cooktops. This valve is responsible for controlling the flow of gas to the burners on the cooktop. It opens and closes to allow gas to pass through when a burner is turned on and stops the flow of gas when the burner is turned off.

Causes of a bad gas valve can include wear and tear over time, issues with the valve mechanism such as stuck or blocked components, or damage from exposure to moisture or impact.

Symptoms of a bad gas valve include:

• Burners not lighting or sparking repeatedly without igniting
• Uneven or unpredictable burner flame heights
• Burners not getting hot enough for cooking
• Burners that cannot be turned on or off
• Gas leaks around the valve area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore cooktop models.


TheTubing, 1/4 Gas Supply SV/RB, is an OEM part for Bosch gas ranges. This tubing delivers gas safely and efficiently from the supply to the range. The tubing is made from durable materials capable of withstanding the high pressures and temperatures associated with gas fuel, ensuring longevity and safety in your kitchen environment.

Causes for replacement can range from natural wear and tear over time, which may lead to cracks or leaks, to accidental damage during cleaning or kitchen renovations.

Symptoms of a malfunctioning gas supply tubing include:

• A noticeable gas odor near the appliance, indicating a potential leak.
• Inconsistent flame size or color on the range burners, which can signal an irregular gas supply.
• Difficulty igniting the range burners or an inability to maintain a consistent flame.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
