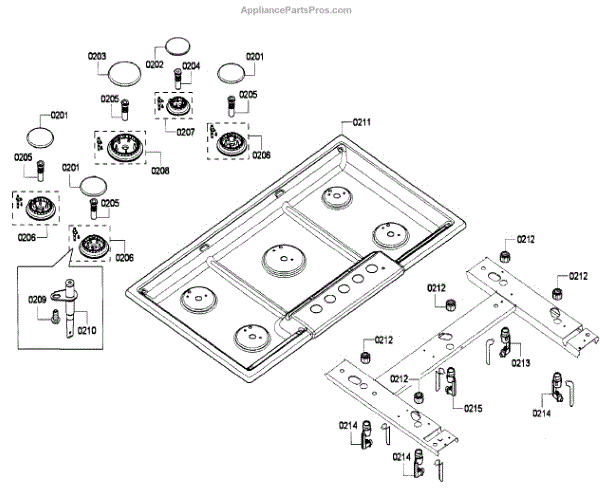

Parts for Bosch NGM5654UC/03: Burners Parts

The Burner Cap is an OEM part for Bosch Ranges. This part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Burner is an OEM part for Bosch cooktops and ranges. This part provides reliable and consistent heat for cooking. This burner is specifically engineered to distribute flame evenly, ensuring optimal cooking performance.

Causes of a bad Burner can include clogging from food spills or debris, which blocks gas flow and affects flame quality and consistency.

Symptoms of a bad Burner include:

• Uneven flame or low flame output, which can lead to poorly cooked food
• Difficulty lighting the burner, indicating potential blockages or issues with the gas supply
• Excessive sooting or yellow flame, which suggests incomplete combustion typically caused by clogs or improper gas-air mixture
• Noticeable rust or physical damage that can prevent proper seating or alignment of the burner

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Screw Range is an OEM component specifically designed for Bosch ranges. These screws serve to securely mount and assemble different components within the oven cavity.

The screw range plays a crucial role in ensuring internal structures and assemblies are firmly fastened in their correct positions. Proper installation with this screw set guarantees tight tolerances and optimal heat distribution throughout the cooking and baking cycles.

Causes of faulty screws can include wear and tear over time resulting in loosened fits, cracks or heads shearing off due to repeated heating and cooling.

Symptoms of loose or damaged screws include:

• Drooping or sagging racks and shelves
• Components shifting positions or coming loose
• Inconsistent or uneven cooking results

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models. Replace yours today to maintain your range's integrity.


The Ignition Device is an OEM part for Bosch gas cooktops. This ignitor is responsible for sparking the burners to safely ignite the gas flow and initiate the cooking process.

The ignition device works through a high-voltage electrical arc that produces a spark near each gas burner valve whenever a cooktop burner is turned on. This spark reliably ignites the gas, allowing full and consistent burner flame.

Causes of a bad ignition device can include defects in the electronic components, wear and tear of the electrode tips over time, or issues preventing a strong enough spark from occurring.

Symptoms of a bad ignition device include:

• Burners that will not light or remain lit
• Repeated lighting attempts required before a flame is produced
• Inconsistent or intermittent ignition between burners
• Burners that light but then extinguish unexpectedly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Nut is an OEM component specifically designed for select Bosch gas cooktops. As a fastening mechanism, it firmly holds valves and brackets without loosening.

Zinc plating resists corrosion ensuring dependable seating even under pot handles and continuous thermal expansion/contraction. Precision threading aligns without galling or binding that could jeopardize safe regulator positioning.

Causes requiring nut replacement commonly relate to wear through threads no longer maintaining clamping pressure on brass regulators over decades of use. Physical damage or over-tightening during assembly/service could also crack or distort housings.

Symptoms signaling the need for new nuts include:

• Gas leaks detected around valve connections or mounting points
• Loosened assemblies enabling unwanted vibrations from frequent cooking
• Difficulty reaching proper tightening torques without hardware damage

This OEM Bosch replacement nut is also compatible with Thermador, Gaggenau, and some Kenmore ranges.


The Burner Holder is an OEM component specifically designed for Bosch ranges. It braces the simmer ring burner assemblies securely in place on the cooktop. Correct alignment ensures proper flame distribution and even heating across each cooking zone.

Symptoms of a bad burner holder include burners that shift positions, are loose, or flames that behave unevenly. Failure to provide stable, grounded support necessitates replacement.

Causes of a bad burner holder can involve wear from continual assembly/disassembly of burners for cleaning. Heat exposure over time may also lead to material degradation or cracking.

Causes of a bad burner holder include:

• Misaligned or unstable burner placement
• Improper flame dispersal or hotspots below pans
• Difficulty securing burners firmly in position

This OEM Bosch part is also compatible with Thermador and some Kenmore ranges. Replace yours for trouble-free use of precisely stationed burners.


This holder is a small mounting bracket that secures internal appliance components, helping keep parts aligned and stable for reliable operation. It replaces a worn, cracked, or broken bracket to restore proper fit. What it does:

• Secures and positions internal components to prevent movement or misalignment
• Stops rattling or vibration caused by a loose or damaged bracket
• Restores proper component clearance so assemblies operate smoothly
• Helps maintain correct alignment after panel or assembly removal/reinstallation

• One holder

• Disconnect power (and water, if applicable) before beginning any repair
• Access may require removing panels or assemblies; keep fasteners organized
• Inspect surrounding clips and screws; replace any damaged hardware as needed
