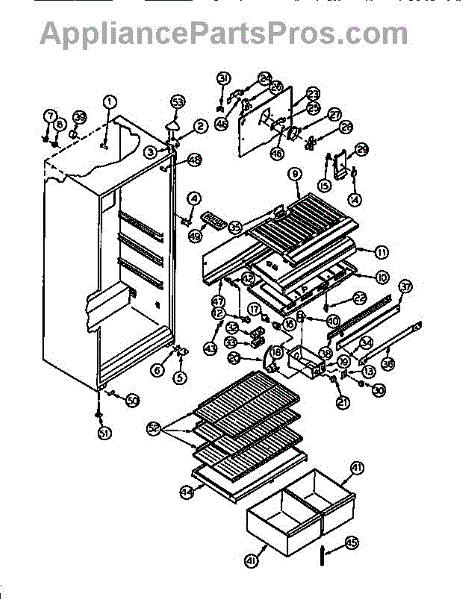

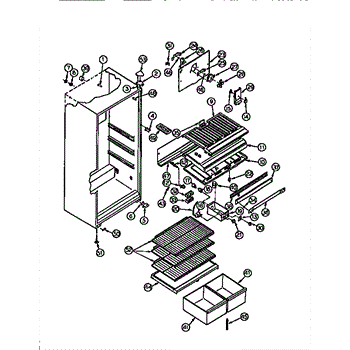

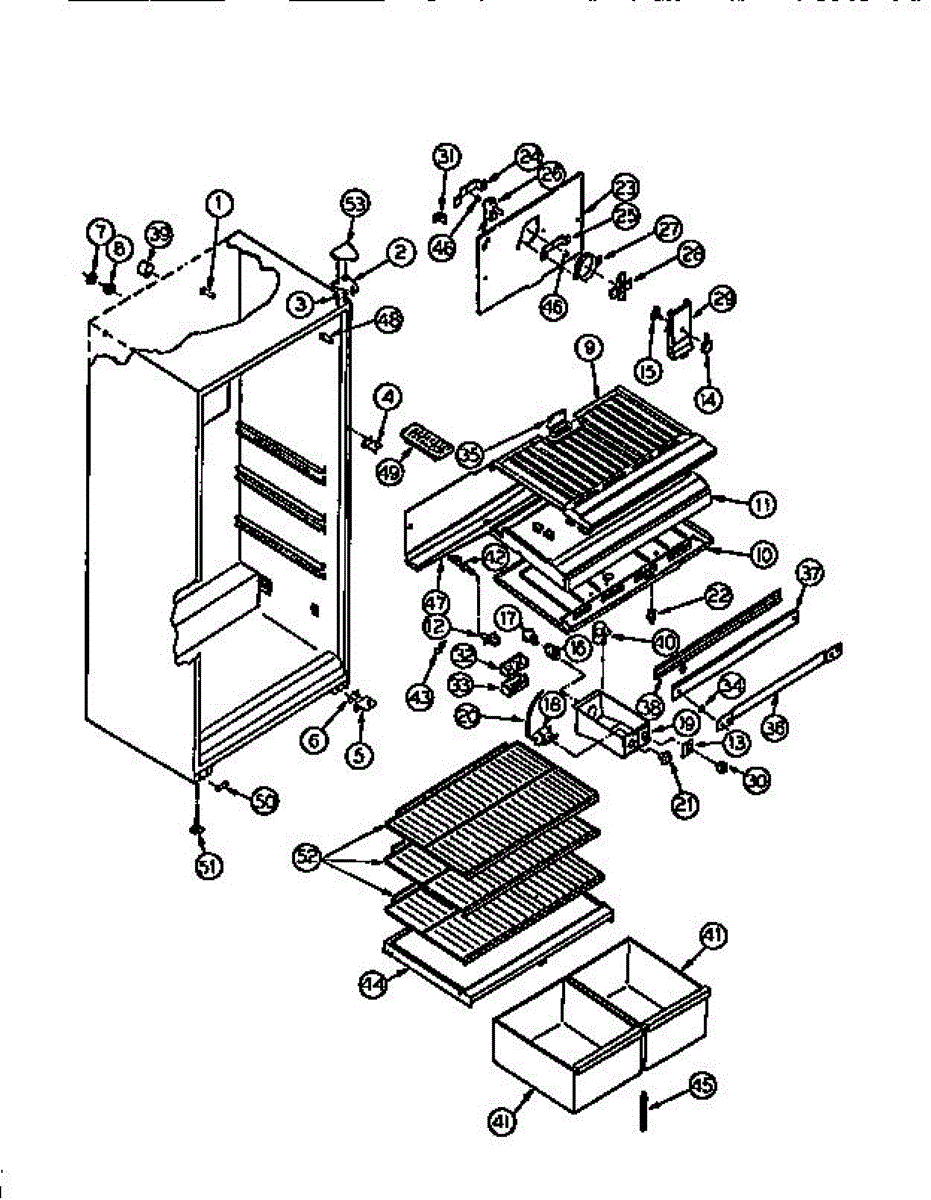

Parts for Frigidaire RD17F2WT3A: 05 - Cabinet Parts

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

The Defrost Timer is an OEM part for Frigidaire refrigerators. It is an essential electronic component that controls the automated defrost cycle of the refrigerator. The defrost timer monitors run times and temperatures to determine when to initiate the defrost process. It allows the refrigerator to operate efficiently by preventing excessive ice buildup. This defrost timer is designed to run for 30 minutes every 8 hours.

Symptoms of a bad defrost timer include:

• Inability to initiate or maintain the defrost cycle
• Excessive ice buildup in the freezer compartment
• Erratic temperature fluctuations
• The refrigerator running excessively or displaying other performance issues

Causes of a bad defrost timer can be normal wear and tear over time. Environmental factors like power surges or fluctuations may also impact the electronic timer functionality.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued and is no longer available.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

This cabinet corner trim restores the finished edge where two cabinet panels meet, covering exposed corners and improving the appliance's appearance. It's a direct-replacement trim piece that helps keep panels aligned and protected from chips. What it does

• Covers and protects exposed cabinet corners from chips, dings and wear
• Hides gaps where cabinet panels meet for a neater appearance
• Helps secure and align adjacent cabinet or console panels
• Useful when original trim is cracked, broken, bent or missing

• Remove any adjacent panels or screws that block access before installing the trim
• Align trim with cabinet edge and press or fasten per the original attachment method
• Use only the OEM replacement part to ensure proper fit; do not force or bend the trim
• Disconnect power before removing panels

Optional flexible ice tray for those that dont have an icemaker

This lower hinge plug is a small plastic cover that snaps into the refrigerator's lower door hinge to protect hinge hardware and restore a finished look. It keeps the hinge area neat and helps prevent dirt buildup and snags. What it does:

• Covers and protects exposed lower hinge hardware from dust and debris
• Restores the refrigerator's original finished appearance after a missing or damaged cover
• Helps reduce the chance of clothing or items catching on the hinge area
• Can make inspection of hinge hardware easier and safer by providing a defined cover

• If you must move the door, support it to prevent tipping or injury; consider a second person for large doors
• Inspect hinge screws and mounting points before installing the plug; tighten hardware if needed
• No special tools required for most installations; press the plug into the hinge opening until it snaps in place

Sold individually.
