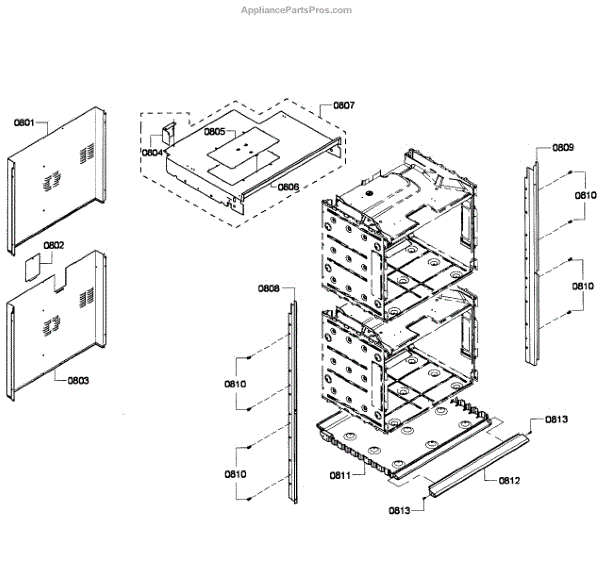

Parts for Bosch HBL8650UC/07: Cabinet Assembly Parts

This is a replacement mounting screw used to secure appliance panels and components. It provides a straightforward fix for loose or rattling parts and restores proper fit and alignment. What it does:

• Fastens panels, brackets, or small components to appliance frames
• Prevents rattling or movement caused by loose hardware
• Restores proper alignment for covers and access panels
• Works wherever the original screw size and thread match

• One replacement screw

• Match screw size and thread to the original before installation
• Use the correct driver to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage
• Disconnect power or follow appliance safety procedures before accessing internal components

Lower trim baffle for electric wall ovens. Installs at the bottom of the oven cavity. Replace if cracked, bent, discolored, or missing to restore appearance.

This is a replacement mounting screw used to secure appliance panels and components. It provides a straightforward fix for loose or rattling parts and restores proper fit and alignment. What it does:

• Fastens panels, brackets, or small components to appliance frames
• Prevents rattling or movement caused by loose hardware
• Restores proper alignment for covers and access panels
• Works wherever the original screw size and thread match

• One replacement screw

• Match screw size and thread to the original before installation
• Use the correct driver to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage
• Disconnect power or follow appliance safety procedures before accessing internal components

This is a 10-32 x 3/8-inch Phillips-head machine screw used to secure panels, brackets, or internal components. It replaces stripped or missing fasteners to restore proper fit and reduce vibration or rattling. What it does:

• Secures trim, panels, brackets or components that use a 10-32 thread and 3/8" length
• Stops loose parts that cause rattling, misalignment, or improper sealing
• Matches Phillips-head drivers for straightforward removal and replacement
• Restores reliable mechanical fastening when the original screw is stripped, missing, or corroded

• One 10-32 x 3/8" Phillips-head screw

• Unplug the appliance or shut off power before servicing to avoid electrical shock
• Use the correct Phillips driver and avoid excessive torque to prevent stripping threads
• Replace like-for-like: thread size and length match the original screw
• Keep small parts away from children and pets

90-degree connector cable for ovens and cooktops. Replaces damaged, frayed, or missing connectors. Essential for secure electrical connections.

A small chassis knockout protector that shields wiring and components where factory knockout holes are removed. Helps prevent wire abrasion and keeps openings tidy for safe appliance operation. What it does:

• Fits into a chassis knockout to protect wiring from sharp sheet-metal edges
• Helps prevent cable chafing and short circuits by covering exposed openings
• Keeps out debris while allowing routed harnesses to pass through the cabinet
• Commonly used where service or modifications require a sealed knockout

• One chassis knockout protector

• Install by pressing the protector into the knockout until it seats securely
• Ensure wiring is routed through the protector and not pinched between metal edges
• Disconnect power before servicing appliance to avoid shock or injury

This is an insert component designed for use in a range vent hood. It fits into the hood housing to support proper airflow or provide a finished appearance on the unit's exterior. Replace this insert if it is damaged, warped, or missing, which can affect the fit and function of the vent hood.
