Parts for Bosch WTMC5330US/06: Cabinet Assembly Parts

Parts for Bosch WTMC5330US/06: Cabinet Assembly Parts

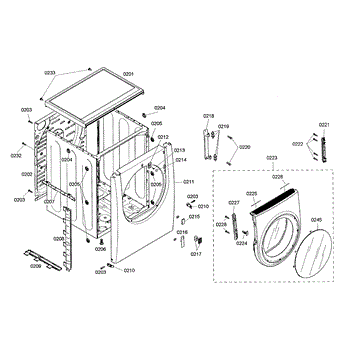

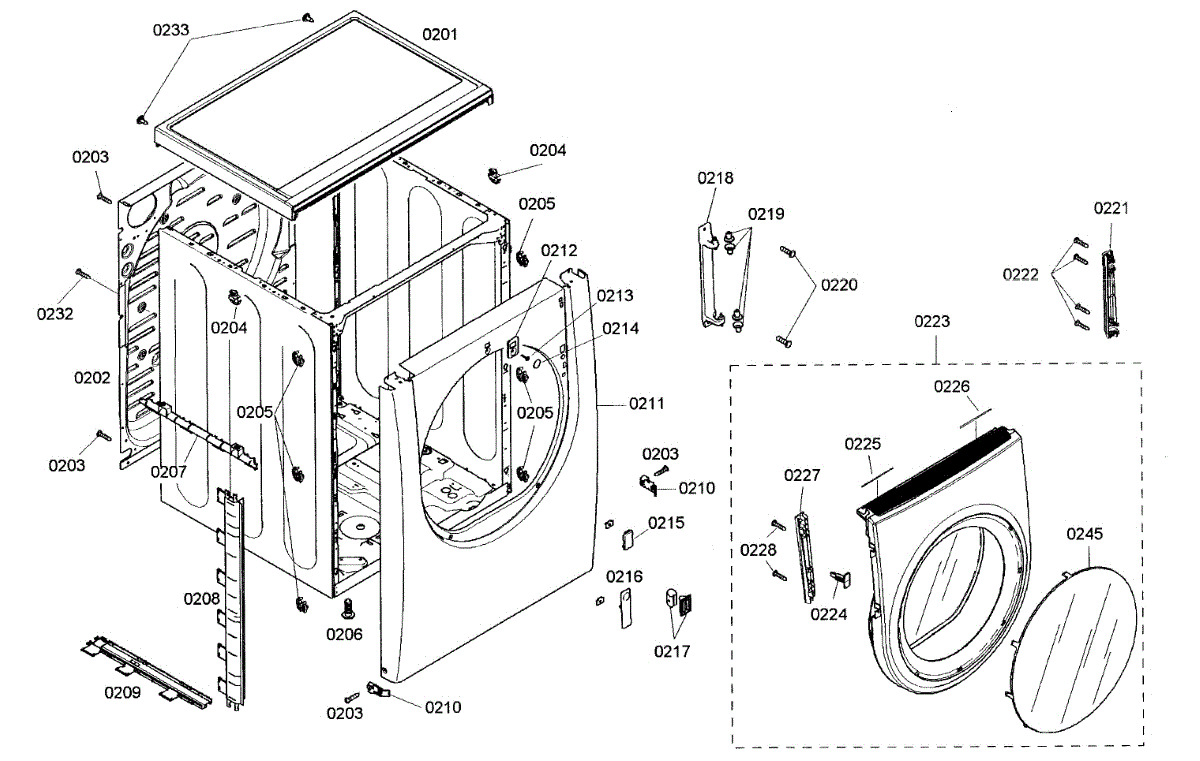

Location on Diagram
Part Description
Price & Availability
201
Product photo
By: Bosch
Part Number: 00478177
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

202
By: Bosch
Part Number: 00681170

This back panel replaces a damaged or missing rear housing piece to protect internal components and maintain proper airflow. It restores the appliance's rear enclosure so internal parts stay covered and secure. What it does:

  • Covers and protects wiring, controls, and internal components from damage and debris
  • Helps maintain designed airflow and cooling paths for reliable operation
  • Provides anchor points for rear-mount components and fasteners
  • Stops drafts and prevents small objects from entering the appliance cavity
  • Addresses symptoms like exposed wiring, rattling or loose rear cover, and visible cracks or holes
What's included: One back panel. Install notes:
  • Disconnect power (unplug or shut off breaker) before beginning any work.
  • Access the rear of the appliance and remove fasteners holding the old panel; save screws if reusable.
  • Handle edges carefully—sheet metal may be sharp; wear gloves and eye protection.
  • Follow OEM instructions for reassembly.

More
$147.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
203
Product photo
By: Bosch
Part Number: 00617527

The Screw is an OEM part for Bosch microwave ovens. It is a component that secures the outer casing and front paneling of the microwave. The screw is designed to withstand repeated heating and cooling cycles without loosening or degrading.

Symptoms of bad screw include:

- The front panel or outer casing becoming loose, detached, or misaligned
- Gaps appearing in the seams or joints of the microwave structure
- The door not sealing properly leading to leaks

Over many uses of the microwave, screws can wear down or strip out from over-tightening during repairs or installations. It is important to replace worn screws to ensure the microwave maintains an intact structure.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


More
$32.23

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
204
By: Bosch
Part Number: 00605032
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

205
Product photo
By: Bosch
Part Number: 00427416
$7.69

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
206
Product photo
By: Bosch
Part Number: 00422201

Adjustable leveling leg supports and balances your dryer during operation. Replace when worn, damaged, or causing wobbling. Confirm fit with model number.

More
$4.45

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
207
By: Bosch
Part Number: 00441666
$20.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
208
By: Bosch
Part Number: 00441667
$34.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
209
By: Bosch
Part Number: 00441668
$28.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
210
By: Bosch
Part Number: 00427417
$8.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
211
By: Bosch
Part Number: 00244010

Outer housing panel for your dryer's front assembly. Replaces cracked, damaged, or worn front case. Protects internal components and restores appearance.

More
$352.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
212
By: Bosch
Part Number: 00603975

Dryer cover cap that installs on the exterior or control panel. Replace this part if your cap is cracked, broken, missing, or worn from regular use.

More
$13.54

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
213
Product photo
By: Bosch
Part Number: 00422180
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

214
Product photo
By: Bosch
Part Number: 00422175
$12.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
215
By: Bosch
Part Number: 00424035
$8.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
216
Product photo
By: Bosch
Part Number: 00424036

Protective cap covers exposed openings and fittings on your dryer. Prevents dirt and moisture intrusion. Replace if cracked, broken, or missing.

More
$10.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
217
Product photo
5.0 (1)
By: Bosch
Part Number: 00491624

This latch mechanism catches and holds your dryer door securely closed during operation. It ensures the door stays shut and maintains proper safety switches for the dryer to run. Replace it when your dryer door won't stay closed, pops open during cycles, or the dryer won't start even with the door shut.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

218
Best Seller
Product photo
4.9 (18)
By: Bosch
Part Number: 00491647

The Door Hinge is an OEM part for Bosch dryers. This hinge is designed to securely attach the dryer door to the frame, allowing it to open and close smoothly while maintaining a proper seal during operation.

Causes of a bad door hinge can include regular wear and tear, damage from excessive force when opening or closing the door, or corrosion from exposure to moisture and heat.

Symptoms of a bad door hinge include:

  • The dryer door not closing properly or staying open
  • Difficulty opening or closing the dryer door
  • A misaligned dryer door
  • Unusual noises or resistance when moving the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

More
$66.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
219
Product photo
5.0 (7)
By: Bosch
Part Number: 00422204
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

220
By: Bosch
Part Number: 00422243

Mounting screw that secures panels, brackets, and trim pieces on dryers. Replace when stripped, missing, or damaged to restore proper fastening.

More
$8.28

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
221
Product photo
5.0 (2)
By: Bosch
Part Number: 00491627

Replacement access cover for dryers. Shields internal wiring and components from debris and moisture. Needed when original is cracked, broken, or missing.

More
$28.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
222
Product photo
By: Bosch
Part Number: 00615773

This factory fastener secures appliance components and panels so they stay aligned and quiet. Replacing a missing, stripped, or corroded screw restores a tight fit and helps prevent vibration, rattling, and premature wear.

  • Secures brackets, covers, panels, or internal parts per your model's design
  • Helps maintain alignment and reduce vibration/noise during operation
  • Replaces lost, stripped, rusted, or damaged hardware
  • Common signs include loose or shifting panels, rattling sounds, or a missing screw found during service
What's included: One screw Install notes:
  • Disconnect power before servicing; shut off water or gas if applicable to your appliance
  • Match the screw to the original location/length; replace one at a time to avoid mix-ups
  • Start threads by hand to prevent cross-threading; tighten snugly without overtightening
  • Use the correct driver for the head type on your model to avoid stripping

More
$5.52

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
223
By: Bosch
Part Number: 00249108

Complete dryer door assembly that installs on the front panel. Replace if your door is cracked, broken, warped, or has damaged hinges or latches.

More
$570.19

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
224
Product photo
4.8 (5)
By: Bosch
Part Number: 00491673

Dryer door won't stay closed or won't start? A broken door latch is often the cause. This replacement latch is a straightforward 5-10 minute fix.

More
$57.30

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
225
Product photo
By: Bosch
Part Number: 00424037
$14.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
226
By: Bosch
Part Number: 00424038
$10.86

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
227
By: Bosch
Part Number: 00640549
$27.79

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
228
Product photo
By: Bosch
Part Number: 00422126

The Screw is an OEM part for Bosch gas cooktops and ranges. It anchors the surface burner head assembly onto the cooktop surface.

Causes can be stripped threads or overall wear from repeated heating/cooling cycles. Exposure to cooking spills or impacts may also deteriorate the screw head over time.

Symptoms of a bad burner head screw include:

  • A burner detaching from the cooktop surface entirely
  • Excess movement or instability of burner heads when in use
  • Gas leaks reported around the burner head connection points

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

More
$24.45

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
232
By: Bosch
Part Number: 93406A194
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

233
Product photo
By: Bosch
Part Number: 00422240

Replacement mounting screw for securing panels, brackets, and trim on appliances. Needed when original fasteners are stripped, missing, or lost.

More
$5.52

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
245
Product photo
4.8 (4)
By: Bosch
Part Number: 00680865

This transparent window allows you to monitor clothes while the dryer is running and forms part of the door assembly. Replace it when the glass is cracked, shattered, or becomes so cloudy that visibility is impaired.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
