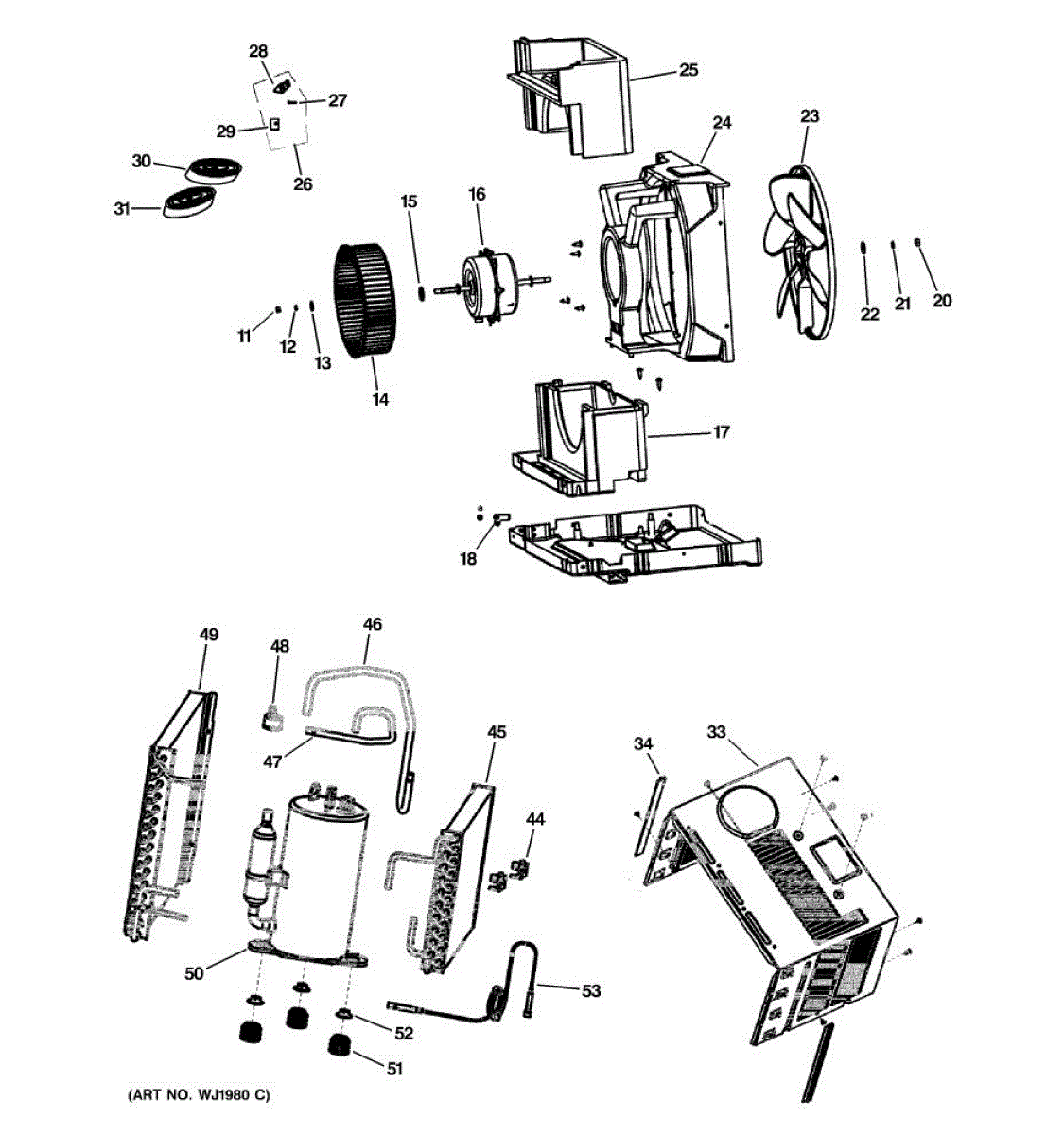

Parts for Ge AEV05LNQ1: 02 - Cabinet & Components Parts

This nut with attached washer is a small securing fastener used to clamp appliance parts and prevent loosening. It provides a low-profile, integrated washer bearing surface for a reliable hold. What it does:

• Secures panels, brackets, or components to prevent movement and rattling
• Maintains clamping force where an integrated washer is needed
• Helps keep electrical and mechanical connections stable
• Common symptom: loose or vibrating parts, squeaks, or components that shift during use

• One nut with attached washer

• Disconnect power and water before servicing
• Use the correct socket or wrench to avoid rounding the nut
• Tighten to snug fit — avoid overtightening which can strip threads or damage parts
• If replacing a rusted or damaged fastener, inspect mating threads and replace as needed

This flat washer provides a secure, even load distribution for a fastener on the appliance, helping maintain proper assembly and reduce loosening or wear. Use it to replace a damaged or missing washer during repairs. What it does:

• Sits under a nut or bolt to spread load and protect the appliance surface
• Helps prevent fasteners from loosening due to vibration
• Restores proper spacing and alignment for connected parts
• Commonly replaced when you see corrosion, cracking, or a loose connection

• One flat washer

• Disconnect power and turn off water supply before starting any repair
• Tighten fasteners to a snug fit—avoid over-tightening which can crush the washer
• If adjacent parts show damage or corrosion, inspect and replace as needed

This oven door gasket creates a tight seal around the oven door to help keep heat inside for more even cooking and efficient operation. It replaces worn or torn seals to improve temperature consistency and reduce heat loss. What it does:

• Seals the oven cavity to help maintain cooking temperature and reduce energy loss
• Prevents excessive heat from escaping into the kitchen
• Helps reduce cooking time variation and uneven baking or roasting
• Commonly replaced when the seal is cracked, flattened, or separated from the door

• Disconnect power to the appliance before starting any repair; allow the oven to fully cool.
• Remove the oven door or open to access the gasket per your model's instructions; gently pull out the old gasket and press the new gasket into the door flange.
• Avoid forcing or overstretching the gasket; ensure an even, continuous fit around the door perimeter.

This motor support is a metal bracket that holds and stabilizes the appliance motor, keeping it aligned for reliable operation and reducing excessive movement or wear. It helps maintain proper drivetrain alignment for quieter, smoother performance. What it does:

• Secures the motor housing to the appliance chassis to prevent shifting during operation
• Keeps the motor shaft aligned with belts or pulleys to reduce rubbing and premature wear
• Reduces vibration and noise caused by a loose or unsupported motor
• Can resolve symptoms like unusual grinding, scraping, or motor misalignment

• One motor support bracket

• Disconnect power before beginning any repair to avoid electrical shock
• Access typically requires removing panels or the drum; follow appliance-specific disassembly steps
• Inspect surrounding fasteners and mounts; replace any worn hardware for a secure fit

This door gasket seal replaces a worn or damaged refrigerator or freezer door seal to restore a tight closure and help maintain proper temperature. It helps stop air leaks that can cause frost build-up and higher energy use. What it does:

• Forms a replacement seal around the appliance door to maintain an airtight closure
• Helps reduce interior temperature fluctuations that can lead to frost or spoiled food
• Restores proper door alignment and sealing where old gasket is cracked, torn, or compressed
• Commonly used when you see visible gaps, drafts, or persistent moisture at the door edge

• Designed for a direct OEM-fit; inspect the door channel and mounting surface before installing
• Clean the gasket channel and door edge to remove debris for best sealing contact
• Warm the gasket slightly (per OEM guidance) if needed for easier fitting; avoid open flames

This condenser assembly is the condenser coil and mounting used on compatible refrigerators to move heat out of the cooling system so the appliance can maintain proper temperatures. It restores proper heat rejection for efficient cooling. What it does:

• Condenses and releases heat from the refrigerant so the cooling cycle can continue.
• Helps the compressor run less frequently by providing proper heat exchange.
• Common symptoms of a failing condenser: refrigerator runs continuously, interior not cooling, or unusually warm cabinet.
• Works as part of the sealed refrigeration loop's external coil and mounting system.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Use care when handling—coil fins can be sharp and mounting brackets may require basic hand tools.
• Minimal refrigerant interaction expected for a bolt-on coil assembly, but do not attempt sealed-system repairs unless certified.
• Verify correct fit and orientation against the appliance before finalizing installation.
