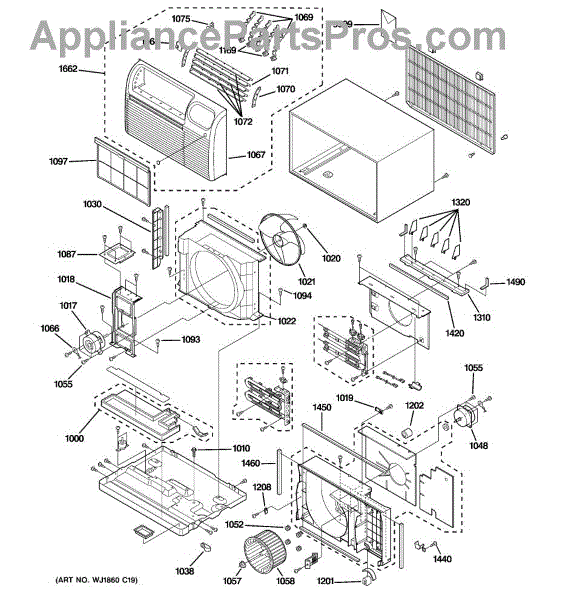

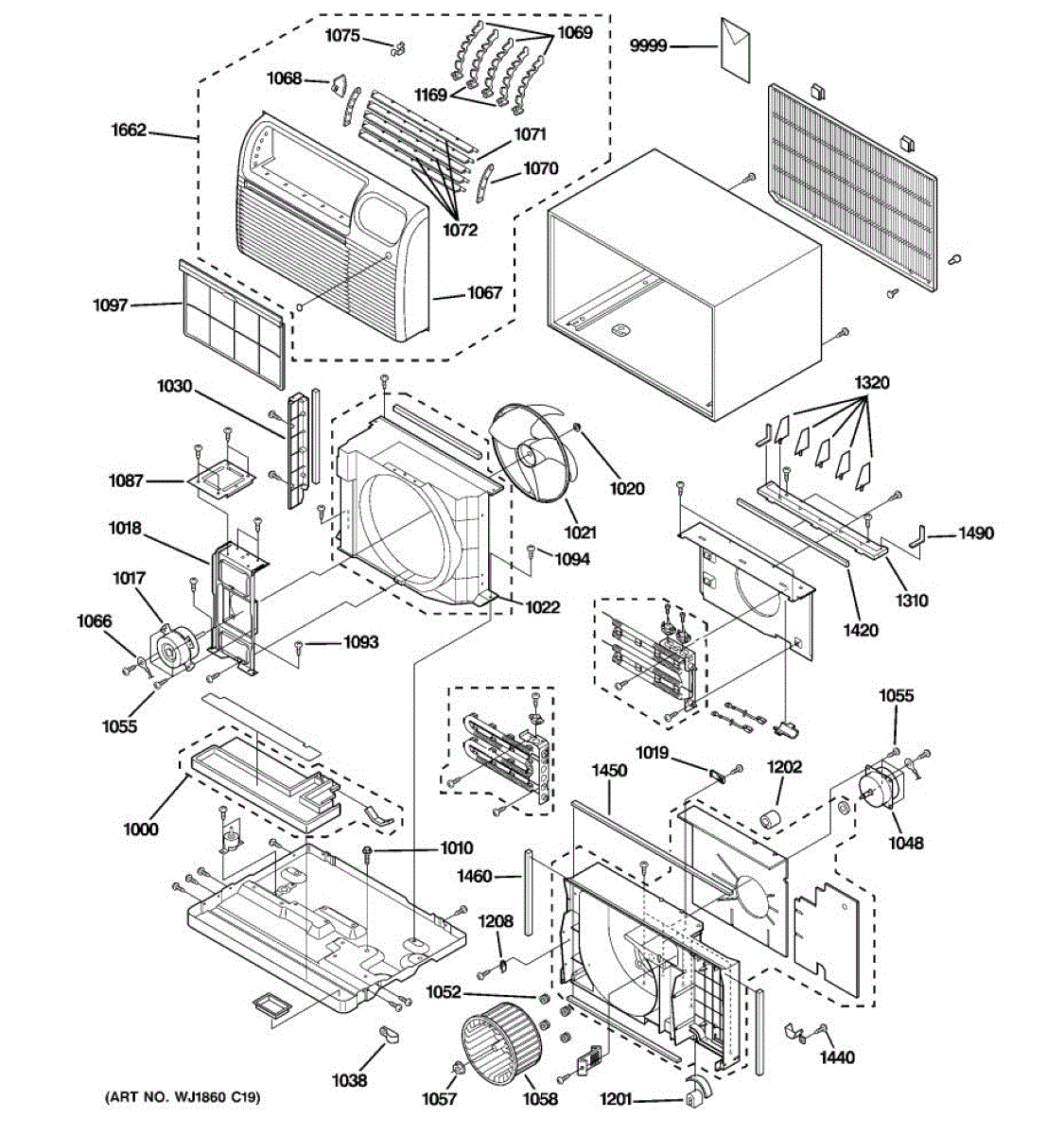

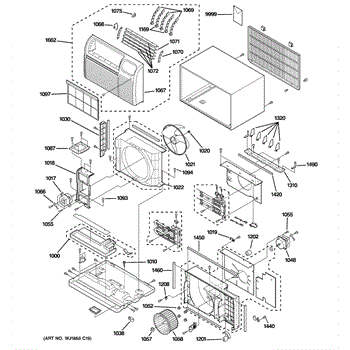

Parts for Ge AJCS10DCBW1: 01 - Cabinet & Components Parts

This condenser shroud protects and channels airflow over the refrigerator condenser coils to help the system cool efficiently and keep debris away from the coils. A damaged or missing shroud can expose coils and cause noise or reduced cooling performance. What it does:

• Covers and protects the condenser coils at the rear lower section of the fridge
• Directs airflow across the condenser for efficient heat dissipation
• Helps prevent debris buildup and accidental contact with coils and fan
• Symptoms of failure: rattling or loose plastic, visible coil exposure, reduced cooling efficiency

• One condenser shroud

• Disconnect power to the appliance before starting any work
• Remove rear access panel or grille to reach the condenser area; follow OEM service instructions
• Use basic hand tools (screwdriver/socket) and support the unit if required
• Take care around sharp condenser fins and wiring; replace mounting screws if damaged

A condenser plate that secures and shields the refrigerator condenser assembly for stable operation and proper airflow. Replaces a damaged or missing plate to help maintain condenser protection and consistent cooling performance. What it does:

• Secures the condenser assembly and related components to the cabinet/frame
• Protects the condenser coil from debris and physical damage
• Helps direct airflow around the condenser for efficient heat dissipation
• A failing or missing plate can allow vibration, rattling, or reduced cooling effectiveness

• One condenser plate

• Disconnect power to the appliance before starting any repairs
• Use care handling the plate—edges may be sharp
• Retain and reuse existing mounting hardware if compatible; verify hole alignment before tightening

This replacement brace is a structural support component that restores alignment and rigidity to the appliance cabinet or assembly, helping reduce vibration and prevent gaps or rubbing where panels meet. What it does:

• Reinforces the appliance frame to maintain proper alignment of panels and doors
• Helps stop vibrations, rattling, or shifting caused by a loose or broken support
• Restores correct spacing so adjacent parts can operate without rubbing or binding
• Used whenever a damaged brace causes wobble, misalignment, or visible gaps

• High-level replacement: remove access panels and fasteners to reach the damaged brace; replace with matching hardware
• Keep power disconnected and water supply turned off (when applicable) before starting repair
• Retain original screws/fasteners; verify fit and orientation before final tightening

The Air Filter is an OEM part for GE air conditioning units. It plays a role in filtering out airborne particles, dust, and other contaminants, ensuring clean and healthy air circulation within your home or workspace. The filter measures approximately 18.5 inches x 10 inches.

Symptoms of a dirty or clogged air filter:

• Reduced airflow from the vents
• Increased energy consumption and higher utility bills
• Unpleasant odors from the air conditioning unit
• Visible dirt buildup on the filter surface

Causes of a bad air filter can include normal wear and tear over time, exposure to excessive dust or pollutants, or inadequate maintenance and replacement schedules.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore air conditioning models.

This EVA pipe cushion is a foam sleeve that cushions and insulates a refrigerator's refrigerant tubing to reduce vibration and prevent metal-on-metal contact. It protects lines and helps cut down on noise and wear. What it does:

• Cushions refrigerant/evaporator tubing to stop rubbing and chafing
• Dampens vibration that can cause noise from the line set
• Provides basic insulation to reduce minor heat transfer at contact points
• Helps prevent damage from tube contact with cabinet or mounts

• One EVA foam pipe cushion

• Disconnect power to the appliance before servicing
• Slide or wrap the foam sleeve around the tubing at the contact point; trim to fit if needed
• Ensure the sleeve does not cover sensors, valves, or service access points
• Replace any damaged or brittle cushions to maintain protection

This louver is a molded air vent piece that restores proper airflow routing and a finished appearance to the appliance. It replaces a cracked, broken, or missing vent louver to help protect internal components and maintain cabinetry aesthetics. What it does:

• Directs and channels internal airflow for even circulation
• Covers a cabinet or grille opening to protect internal parts from debris
• Replaces cracked, warped, or missing louvers that can rattle or look damaged
• Helps restore proper fit and finish on the appliance exterior

• One replacement louver

• Disconnect power to the appliance before beginning any work
• Inspect mounting tabs and clips; replace only if the OEM clips are present or available
• Usually secures with snap-in tabs or a few screws—use appropriate hand tools and avoid over-tightening
