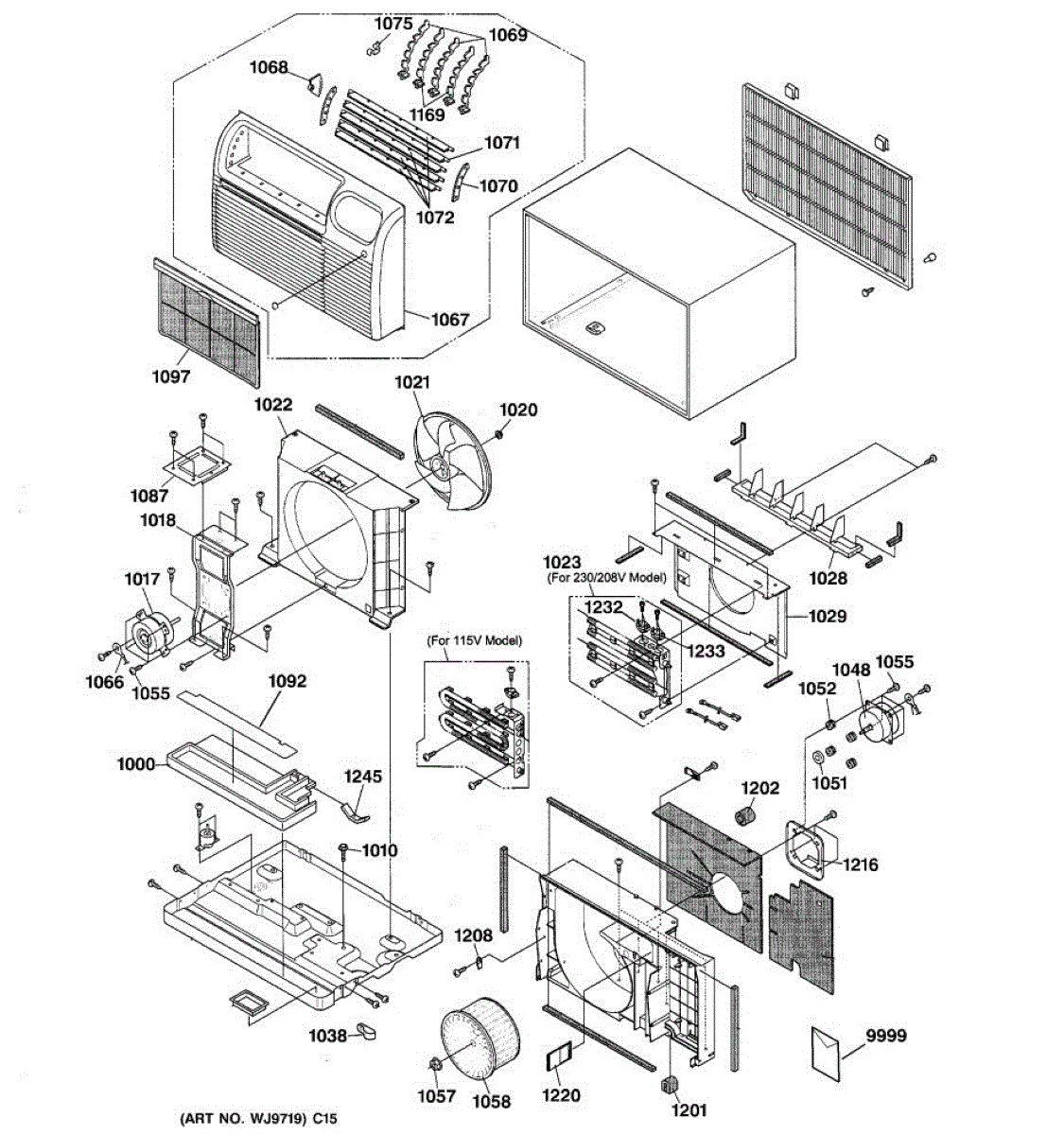

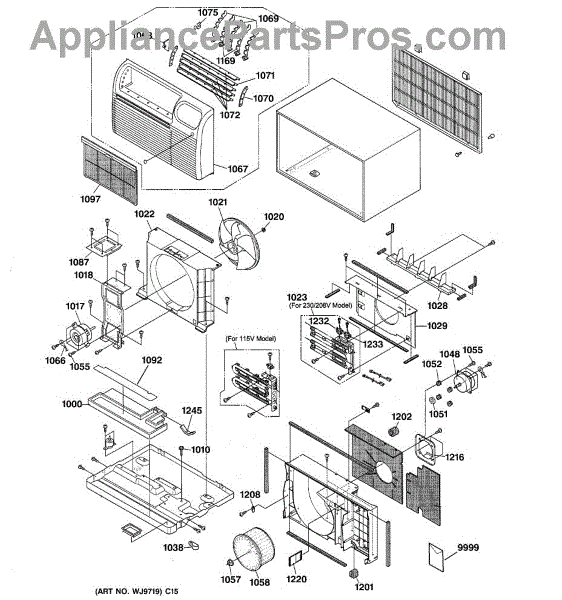

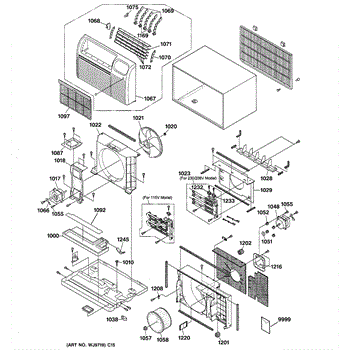

Parts for Ge AJHS08DCAM1: 01 - Cabinet & Components Parts

The Air Filter is an OEM part for GE air conditioning units. It plays a role in filtering out airborne particles, dust, and other contaminants, ensuring clean and healthy air circulation within your home or workspace. The filter measures approximately 18.5 inches x 10 inches.

Symptoms of a dirty or clogged air filter:

• Reduced airflow from the vents
• Increased energy consumption and higher utility bills
• Unpleasant odors from the air conditioning unit
• Visible dirt buildup on the filter surface

Causes of a bad air filter can include normal wear and tear over time, exposure to excessive dust or pollutants, or inadequate maintenance and replacement schedules.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore air conditioning models.

This EVA pipe cushion is a foam sleeve that cushions and insulates a refrigerator's refrigerant tubing to reduce vibration and prevent metal-on-metal contact. It protects lines and helps cut down on noise and wear. What it does:

• Cushions refrigerant/evaporator tubing to stop rubbing and chafing
• Dampens vibration that can cause noise from the line set
• Provides basic insulation to reduce minor heat transfer at contact points
• Helps prevent damage from tube contact with cabinet or mounts

• One EVA foam pipe cushion

• Disconnect power to the appliance before servicing
• Slide or wrap the foam sleeve around the tubing at the contact point; trim to fit if needed
• Ensure the sleeve does not cover sensors, valves, or service access points
• Replace any damaged or brittle cushions to maintain protection

This thermal overload protector safeguards the motor/compressor circuit by opening when temperature or current rises too high. Replacing a failed protector helps prevent damage and restore reliable operation when the unit won't stay running.

• Opens the circuit on over-temperature/over-current to protect windings
• Helps address symptoms like: hums then clicks off, won't start, or shuts down shortly after starting
• Often resets when cool; repeated tripping indicates a failing protector or a related issue
• Mounts against the component for accurate thermal sensing

• Disconnect power at the breaker before servicing; capacitors can retain a charge
• Note wire locations and transfer one at a time; terminals should fit snugly
• Seat/clip the protector firmly as designed for proper heat transfer
• If the old protector shows heat damage, also inspect the start relay/capacitor, wiring, and the motor/compressor

This protector heater is a small heating element used with the overload/thermal protector in the motor or compressor circuit. It provides calibrated warmth so the protector trips correctly under heavy load, helping prevent overheating and protecting the unit. What it does:

• Works with the overload/thermal protector to ensure proper trip timing
• Helps prevent overheating and potential damage to the motor/compressor
• Common signs include repeated clicking near the compressor area or frequent overload trips

• 1 protector heater

• Disconnect power and safely discharge the run capacitor before servicing
• Photograph or label wiring and component orientation for accurate reassembly
• Install in the same position/orientation as the original with secure, insulated connections and proper wire routing
• Inspect the overload, start device, and terminals; replace any burnt or loose connectors to prevent repeat failures
