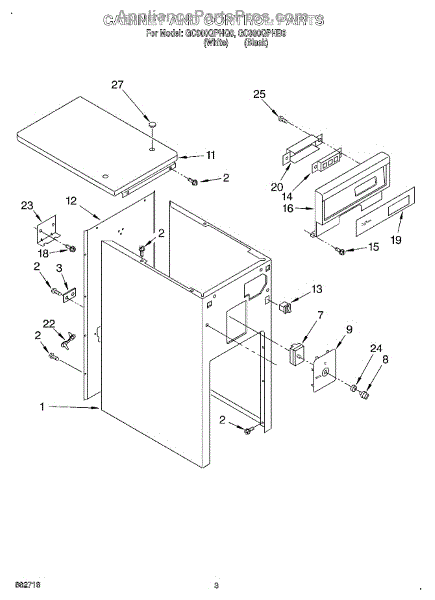

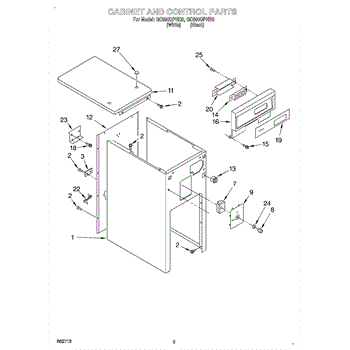

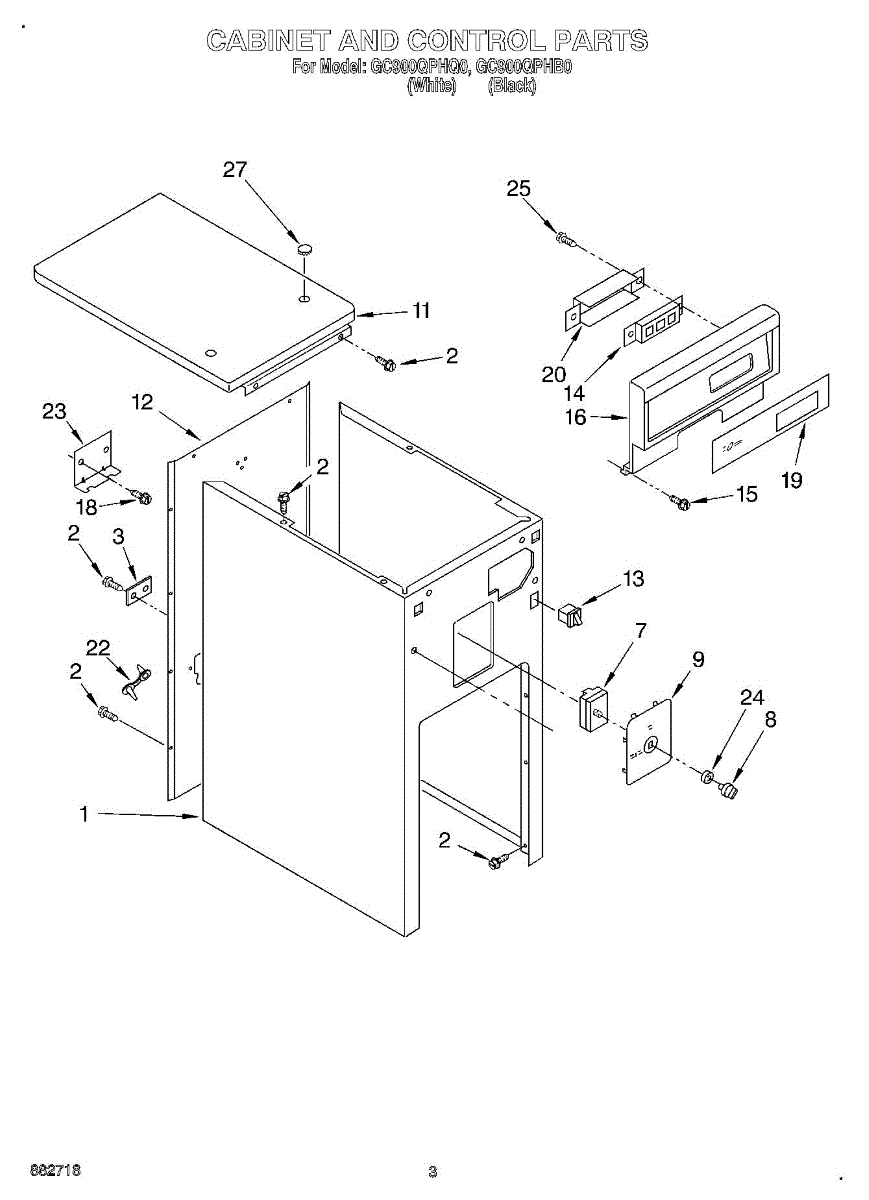

Parts for Whirlpool GC900QPHB0: 03 - Cabinet And Control Parts

Color: Black

Color: White

Size: 8 x 1/2 ab.

This power cord plate covers and secures the oven/range power cord where it enters the appliance, keeping the connection protected and helping prevent strain on the cord. It restores a finished look and helps keep wiring safely routed. What it does:

• Covers the terminal block area to protect power connections from dirt and accidental contact
• Helps keep the power cord routed and secured to reduce strain on the cord and terminals
• Can prevent air/dust intrusion behind the control cavity that could affect components
• Common replacement when the original plate is cracked, broken, or missing

• Always disconnect power at the breaker or unplug the appliance before starting work
• Typically attaches with two screws; keep screws and any gaskets from the old piece for reuse if undamaged
• Check the cord strain relief/terminal connections while replacing the plate; do not touch live terminals
• If wiring or the cord itself is damaged, replace or repair those parts per manufacturer instructions

To order knob for this switch use WP4155141.

May also be called a key. Color: Red.

Color: White.

Color: Black

Color: Black

Color: White

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

This switch assembly is the tap-touch control used on the appliance's control panel to register user touch inputs and change settings. Replacing a faulty switch restores reliable touch response and control operation. What it does:

• Registers touch/tap inputs on the control panel so the appliance responds to user commands
• Replaces a worn, cracked, or unresponsive touch switch that can cause intermittent or no control response
• Restores correct input for affected buttons or zones on the control surface
• Works as the direct replacement electrical/mechanical switch element for the panel

• One switch assembly (white), as pictured

• Disconnect power to the appliance before starting—risk of electric shock
• Replacement requires access behind the control panel; handle the control board and ribbon cables carefully
• Keep track of mounting hardware and orientation for reassembly; do not force connectors

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This part has been discontinued by the manufacturer and is no longer available.

Size: 8-32 x 1/4 inch.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Size: 8-28 x 3/4 inch.

A small replacement button plug that fills a control-panel opening and restores a finished appearance while keeping out dirt and moisture. Fits neatly into the panel for a clean, factory look. What it does:

• Covers unused or damaged button openings on the appliance control panel
• Prevents debris, crumbs, and moisture from entering the control cavity
• Restores the panel's finished appearance and helps keep controls sealed
• Useful when a button is missing, broken, or removed during repairs

• Press the plug firmly into the panel opening until it snaps or seats flush
• No special tools required for most installs; small flat tool can help align if needed
• Avoid forcing the plug to prevent panel damage; check fit before final seating
• Disconnect power to the appliance before removing control panels or working near wiring
