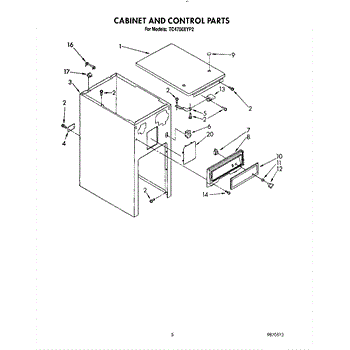

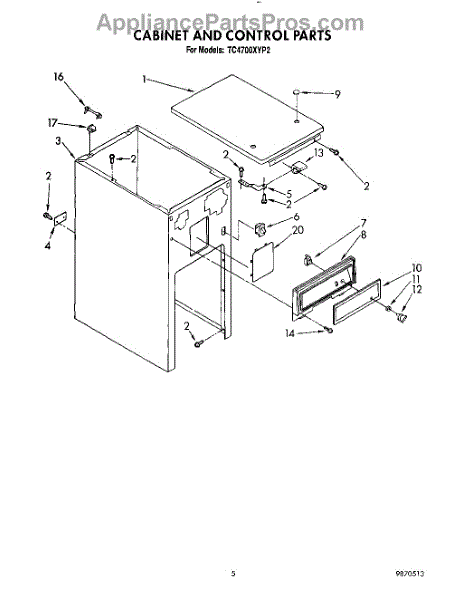

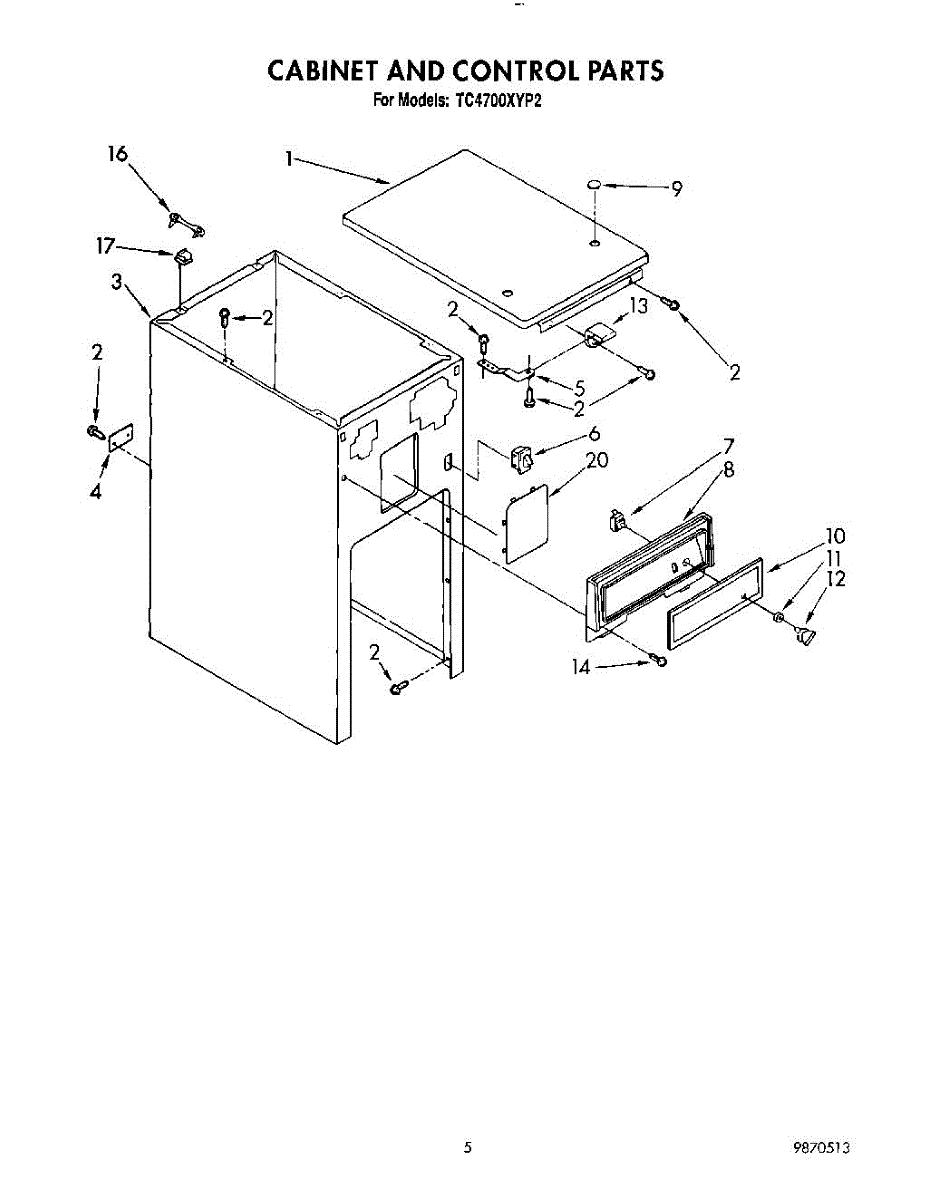

Parts for Whirlpool TC4700XYP2: 05 - Cabinet And Control Parts

Parts for Whirlpool TC4700XYP2: 05 - Cabinet And Control Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: 608856
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP489069

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3
By: Whirlpool
Part Number: 882676
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
By: Whirlpool
Part Number: 775676

This power cord plate covers and secures the oven/range power cord where it enters the appliance, keeping the connection protected and helping prevent strain on the cord. It restores a finished look and helps keep wiring safely routed. What it does:

  • Covers the terminal block area to protect power connections from dirt and accidental contact
  • Helps keep the power cord routed and secured to reduce strain on the cord and terminals
  • Can prevent air/dust intrusion behind the control cavity that could affect components
  • Common replacement when the original plate is cracked, broken, or missing
What's included: One power cord plate Install notes:
  • Always disconnect power at the breaker or unplug the appliance before starting work
  • Typically attaches with two screws; keep screws and any gaskets from the old piece for reuse if undamaged
  • Check the cord strain relief/terminal connections while replacing the plate; do not touch live terminals
  • If wiring or the cord itself is damaged, replace or repair those parts per manufacturer instructions

More
$12.97

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
5.0 (1)
By: Whirlpool
Part Number: W11729437

This is a right-side metal retainer bracket used to secure the trash compactor in its built-in cabinet opening during installation. It anchors the unit firmly in place to prevent shifting or vibration during compaction cycles. Replace this bracket if it is bent, broken, or missing, which can cause the compactor to move or become unstable during operation.

More
$15.49

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
Product photo
5.0 (5)
By: Whirlpool
Part Number: WP4387911

Fix a refrigerator light that won't turn on or off when you open the door. This push-button switch senses door position. DIY repair in 30 minutes.

More
$27.37

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Best Seller
Product photo
4.9 (49)
By: Whirlpool
Part Number: 675382

Compactor won't turn on or stay running? This rotary switch kit controls power and operation. DIY-friendly repair in about 30 minutes with basic tools.

More
$97.58

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
By: Whirlpool
Part Number: 4151493

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
By: Whirlpool
Part Number: 4152349
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
By: Whirlpool
Part Number: 4151481

This part has been discontinued and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP777383

Secures the rotary control switch to your trash compactor's front panel. Replace if stripped, missing, or loose to keep the control knob stable and aligned.

More
$7.61

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
Product photo
By: Whirlpool
Part Number: W11106291
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo
By: Whirlpool
Part Number: WP780239
$32.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14
By: Whirlpool
Part Number: 776559

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16
By: Whirlpool
Part Number: 648791
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
By: Whirlpool
Part Number: 776017
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20
By: Whirlpool
Part Number: 9870122
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

By: Whirlpool
Part Number: LIT9870335
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

By: Whirlpool
Part Number: LIT9870491
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

By: Whirlpool
Part Number: LIT9870513
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Product photo
By: Whirlpool
Part Number: 677821

Whirlpool trash compactor repair manual.

More
$34.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
