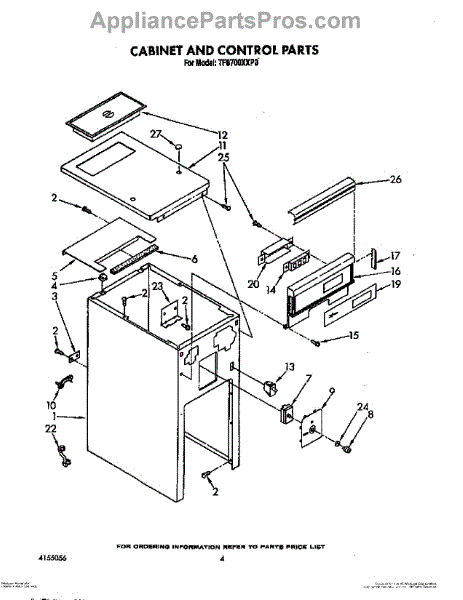

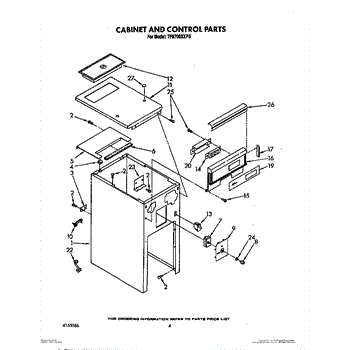

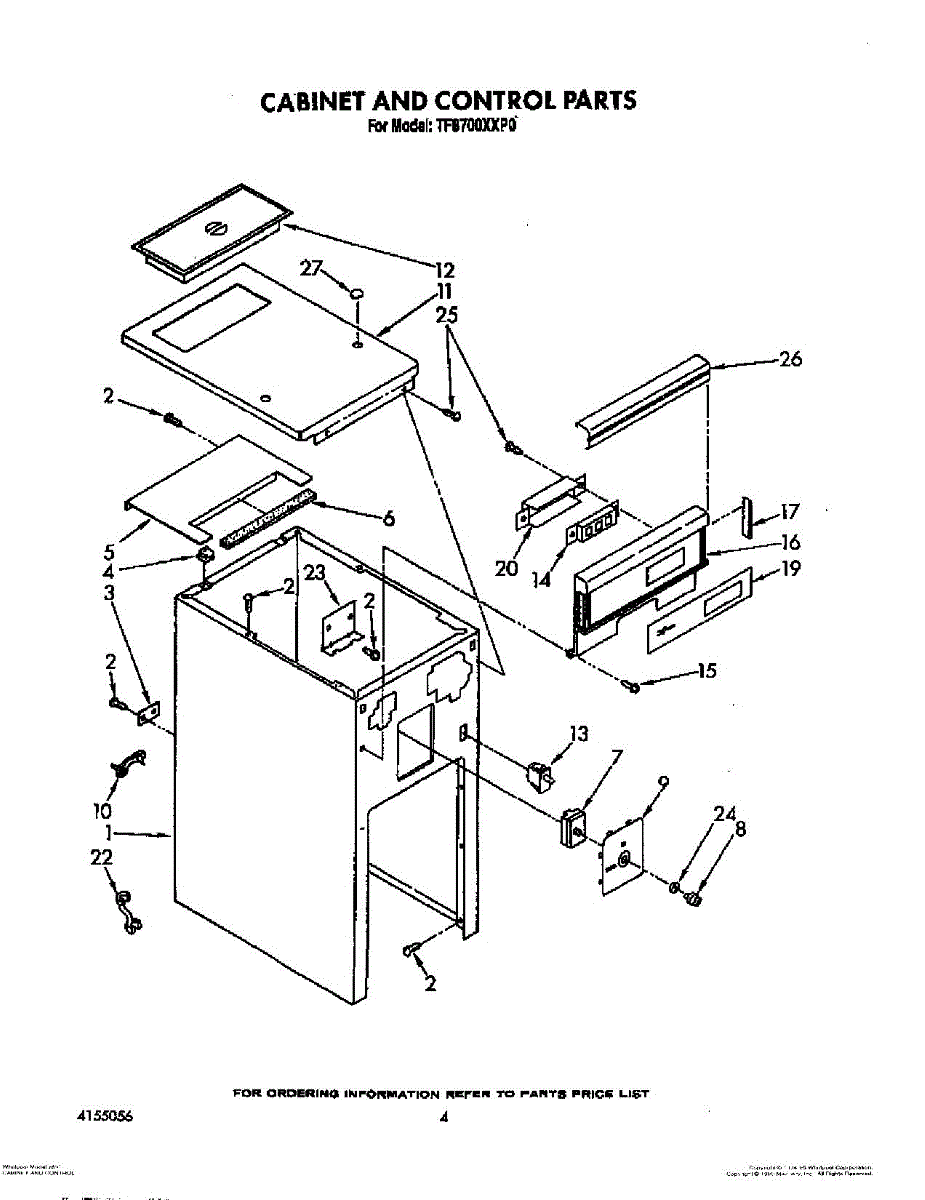

Parts for Whirlpool TF8700XXP0: 04 - Cabinet And Control Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This power cord plate covers and secures the oven/range power cord where it enters the appliance, keeping the connection protected and helping prevent strain on the cord. It restores a finished look and helps keep wiring safely routed. What it does:

• Covers the terminal block area to protect power connections from dirt and accidental contact
• Helps keep the power cord routed and secured to reduce strain on the cord and terminals
• Can prevent air/dust intrusion behind the control cavity that could affect components
• Common replacement when the original plate is cracked, broken, or missing

• Always disconnect power at the breaker or unplug the appliance before starting work
• Typically attaches with two screws; keep screws and any gaskets from the old piece for reuse if undamaged
• Check the cord strain relief/terminal connections while replacing the plate; do not touch live terminals
• If wiring or the cord itself is damaged, replace or repair those parts per manufacturer instructions

To order knob for this switch use WP4155141.

May also be called a key. Color: Red.

Color: Black

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

This off switch is the replacement control that lets you shut power off to the appliance's circuit. Restores a reliable, easy-to-use power-off function for safe shutdown and service access. What it does:

• Acts as the user control to cut power to the appliance or control circuit
• Replaces a broken, stuck, or unresponsive off switch
• Helps stop unwanted appliance operation or allow safe maintenance
• Resolves intermittent or no-power-off symptoms when the switch is faulty

• Disconnect power (unplug appliance or shut off breaker) before servicing
• Handle small electrical parts carefully and avoid contact with live terminals
• Test the switch for proper operation after installation

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Size: 8-28 x 3/4 inch.

This part has been discontinued by the manufacturer and is no longer available.
