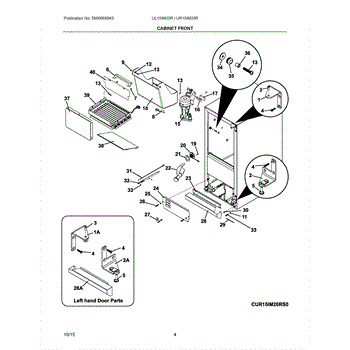

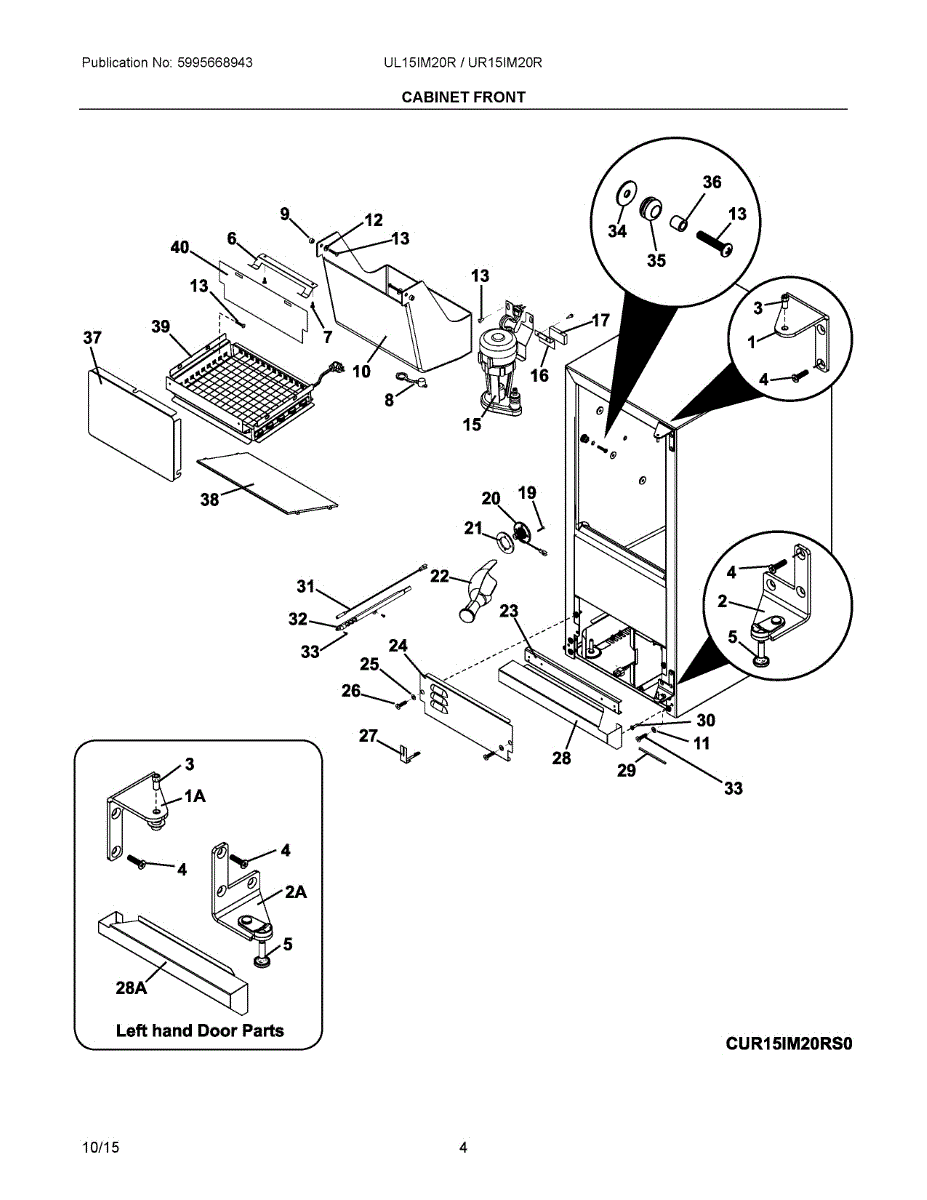

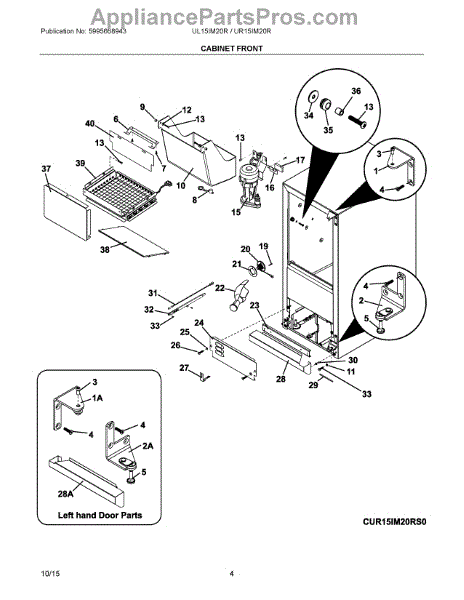

Parts for Electrolux UL15IM20RS0: 03 - Cabinet Front Parts

This door hinge secures and guides a refrigerator door so it opens, closes and stays aligned. It restores proper door movement and helps stop sagging, rubbing or uneven gaps for a tight seal and reliable operation. What it does

• Serves as the pivot point that supports the appliance door and allows smooth opening and closing.
• Restores correct door alignment to prevent rubbing, dragging or uneven sealing.
• Helps stop winded or sagging doors that don't latch securely.
• Works with the door's mounting hardware to maintain a consistent gap for proper sealing.

• One door hinge.

• Disconnect power and remove food/items from the door before starting.
• Support the door (use a helper or a block) to prevent it from falling when hinge hardware is removed.
• Transfer any hinge-mounted components (trim, covers, pins) exactly as removed and tighten fasteners securely.
• Check hinge mount screws and door leveling; avoid over-tightening which can strip threads.

A small metal pin used to secure moving parts like pivots or shafts so doors, drawers, or internal assemblies stay aligned and operate smoothly. Replaces worn or damaged pins to stop excessive play and noisy movement. What it does:

• Secures a pivot or shaft so the linked component rotates or slides on a fixed axis
• Restores proper alignment when a worn pin causes wobble or uneven operation
• Helps stop rattling, binding, or misalignment of the attached part
• Works as the mechanical fastener inside hinge, roller, or linkage assemblies

• Disconnect power or unplug the appliance before servicing
• Keep track of orientation and any washers or clips during removal
• Use appropriate hand tools and secure small parts to avoid loss

This flat washer secures fasteners and helps maintain proper spacing and alignment in appliance assemblies, keeping parts tight and reducing movement for more reliable operation. What it does:

• Sits under a nut or bolt to distribute load and prevent pull-through
• Helps keep connected parts aligned and reduces play that can cause noise
• Can prevent premature wear on mating surfaces by adding a smooth bearing surface
• Commonly replaced when fasteners are loose, rattling, or components show excess movement

• One flat washer

• Disconnect power and water before starting any repair
• Compare new part to the original to ensure correct size and fit
• Use proper tools to remove and reinstall fasteners; tighten snugly but avoid over-torquing
• If other hardware or surrounding parts are damaged, replace them as well for a secure repair

This spacer positions and supports nearby components to maintain proper alignment and clearance, helping panels and assemblies fit and operate without rubbing or binding. What it does

• Provides a fixed gap between parts to prevent contact, rubbing, or electrical shorting
• Keeps panels, trim, or assemblies correctly aligned for smooth operation
• Reduces vibration-related noise by stabilizing mounted parts
• Commonly replaces worn or missing spacers that allow shifting or misalignment

• One spacer

• Disconnect power before accessing internal panels or electrical components
• Remove any trim or panels that block access; keep fasteners organized
• Verify correct placement and orientation before tightening fasteners
