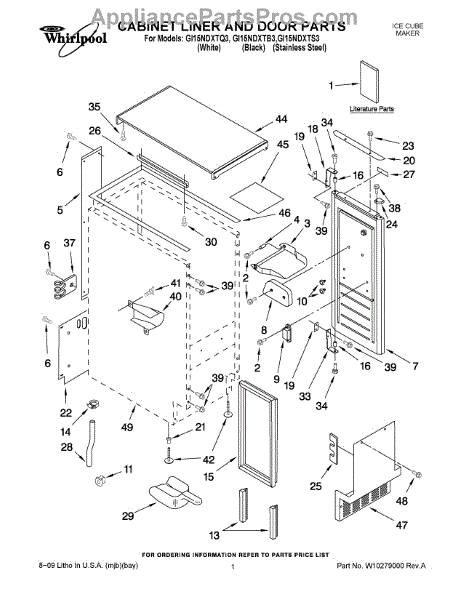

Parts for Whirlpool GI15NDXTB3: 01 - Cabinet Liner And Door Parts

Size: 8-18 x 1 1/4 inch.

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

Size: 8-18 x 1/2 inch.

This catch assembly secures the appliance door in the closed position, restoring proper latching and preventing unwanted openings. It's a direct-fit replacement designed to match the original OEM function. What it does

• Holds the door closed so seals stay engaged and the appliance maintains internal temperature
• Prevents the door from popping open or rattling during operation or transit
• Helps stop issues like airflow loss, frequent door alarms, or intermittent cycling caused by a loose latch
• Matches OEM fit and mounting points for straightforward replacement

• One catch assembly

• Disconnect power (and water if applicable) before starting any repair
• Remove the door panel or trim required to access the existing catch; keep screws and fasteners organized
• Compare the new part to the old part before installation to ensure fit and orientation
• After installation, cycle the door several times to ensure secure engagement and proper alignment

Color: white.

This is the bottom door gasket that seals the lower edge of the appliance door to keep cold in and moisture out. It helps maintain proper temperature and prevents drafts that can cause frost or energy loss. What it does

• Forms a tight seal along the bottom of the door to prevent air and moisture leaks
• Helps stop frost buildup, condensation, and uneven cooling in the compartment
• Reduces compressor run time and energy loss caused by a compromised seal
• Restores proper door closure and consistent internal temperature

• One bottom-of-door gasket

• Inspect the door surface and channel for debris or old adhesive; clean before installing
• Warm and flex the gasket as needed for easier fit; follow OEM alignment and fastener sequence
• Use basic hand tools; avoid sharp tools that could nick or tear the gasket

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This 15-inch door gasket is a direct-replacement sealing gasket that restores a tight door seal to the appliance, helping reduce heat and air leaks for more consistent temperature control and improved efficiency. What it does:

• Seals the door edge to prevent loss of heat, steam, or cooled air during operation.
• Helps maintain consistent internal temperature for proper cooking/drying/operation.
• Common symptoms it can fix: visible cracks, tears, flattening, gaps, or a door that does not close flush.
• Reduces stray heat or moisture around the appliance that can indicate a worn seal.

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the old gasket carefully and inspect the sealing channel for debris or damage before installing the new gasket.
• Start installation at the top and press the gasket evenly into the channel, working around the door so the flange seats fully; replace any fasteners or clips as needed.
• Do not stretch, trim, or modify the gasket unless OEM instructions explicitly direct it; the appliance diagram for orientation.

This white icemaker door handle replaces a worn, cracked, or broken handle so the icemaker door opens and closes smoothly. It restores grip and appearance to the ice access area for safer, easier use. What it does:

• Replaces a damaged or missing icemaker door handle so the door can be opened and closed normally
• Provides a secure grip to prevent slipping or accidental drops when accessing ice
• Restores the original fit and appearance at the ice access panel
• Helps stop further damage to the door edge caused by attempting to open without a proper handle

• Basic hand tools typically required; follow the appliance service manual for disassembly steps
• Disconnect power to the appliance before starting work to avoid electrical hazards
• Handle screws or clips may be reused if undamaged; inspect fasteners and replace if stripped

This is the black handle for the icemaker compartment door on compatible refrigerators. It provides a secure grip to open and close the icemaker door, helping you access the ice bin easily and keeping the compartment neatly closed.

• Allows smooth opening/closing of the icemaker door
• Restores a broken, cracked, or missing icemaker door handle
• Helps the icemaker door stay properly secured
• Common symptoms: loose or wobbly handle, broken or missing handle, difficulty accessing ice bin

• Unplug the refrigerator before starting
• Open the icemaker door and remove any retaining screws/clips from the old handle
• Transfer hardware if reusable; align and fasten the new handle securely
• Test door operation to ensure proper fit and closure

Replacement cover assembly that protects internal components and restores the appliance's appearance. Installs in place of a cracked or missing cover to prevent exposure and reduce vibration noise. What it does:

• Shields internal parts from dust, dirt and accidental contact
• Restores the appliance's finished look after damage or wear
• Reduces rattling or vibration caused by a loose or missing cover
• Helps keep components secured and prevents foreign objects from entering

• Disconnect power (unplug or switch off breaker) before starting any service
• Basic hand tools required; follow the appliance's service manual or diagram for removal/installation steps
• Wear gloves to protect against sharp edges and handle the cover gently to avoid cracking

Color: Black. This is the right side endcap filler. For left side use 2185655B.

Color: Black. This is the left side endcap filler. For right side use 2185656B.

This drain tube directs wastewater from the appliance to the drain path to prevent leaks and restore normal draining. Replace a damaged or cracked tube to stop water loss and reduce the chance of floor damage. What it does:

• Channels water from the washer tub to the drain pump or household drain
• Stops leaks caused by cracked, split, or brittle tubing
• Helps resolve slow draining or water pooling in the washer
• Restores a secure connection when the original tube has become loose or worn

• Disconnect power and turn off the water supply before starting any repair
• Remove the old tube and transfer clamps or use new clamps rated for the appliance
• Ensure the tube is routed without kinks and seated firmly on fittings

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


Size: 8-18 x 5/8 inch.

This hinge pin secures the appliance door to its hinge assembly, letting the door pivot smoothly and stay properly aligned. Replacing a worn pin restores correct door movement and helps prevent rubbing or sagging. What it does:

• Acts as the pivot point that holds the door to the hinge assembly.
• Restores smooth opening and closing when the original pin is worn or damaged.
• Helps correct door sag, uneven gaps, and contact between door and cabinet.
• Prevents excessive wear of hinge components when replaced promptly.

• One hinge pin

• Disconnect power (or unplug) and empty/remove the door or support it per your manual before starting.
• Support the door while removing the old pin to avoid injury or damage.
• Basic hand tools are typically required; avoid forcing parts and inspect hinge parts for additional wear.

Size: 8-32 x 1/2 inch.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

Size: 8-18 x 3/4 inch.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This scoop holder is a replacement freezer-door accessory that keeps the ice scoop secure, hygienic, and within easy reach. It restores the built-in storage location so your scoop stays put and ready when you need it. What it does:

• Provides a dedicated clip/mount to hold the ice scoop on the freezer door or bin
• Keeps the scoop off surfaces to reduce contamination and dripping
• Prevents the scoop from falling out when opening or closing the door/bin
• Restores proper storage when the original holder is cracked, broken, or missing

• Typically snaps into the designated slot on the freezer door or bin; no special tools required for most installs
• Align the holder and press firmly until it clicks into place; replace cracked or broken surrounding tabs if necessary
• Handle gently to avoid damaging door bins or trim during installation

Size: 10-32 x 5/8 inch.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Color: Black.

Size: 8 x 1-1/4 inch.
