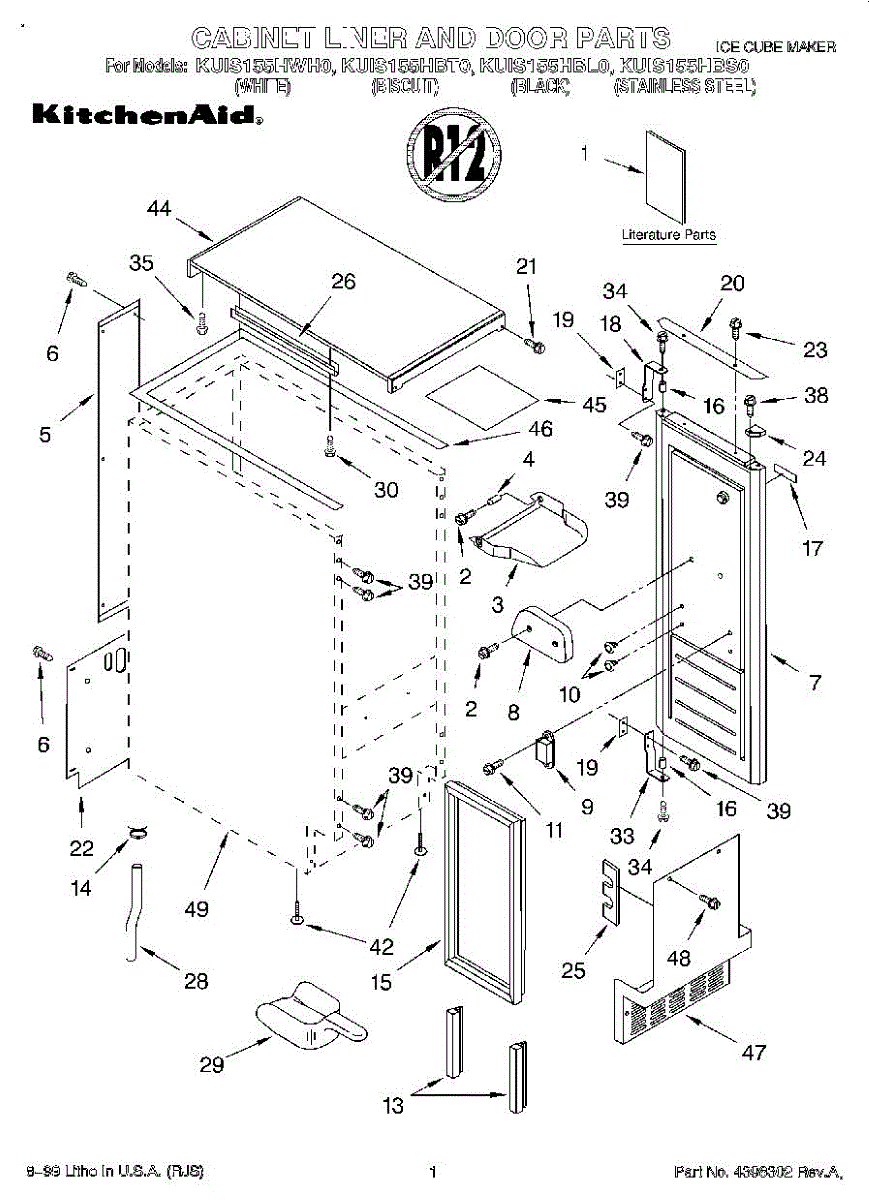

Parts for Kitchenaid KUIS155HBS0: 01 - Cabinet Liner And Door, Lit / Optional Parts

This part has been discontinued by the manufacturer and is No Longer Available.

Size: 8-18 x 1 1/4 inch.

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

Size: 8-18 x 1/2 inch.

Color: Black.

This catch assembly secures the appliance door in the closed position, restoring proper latching and preventing unwanted openings. It's a direct-fit replacement designed to match the original OEM function. What it does

• Holds the door closed so seals stay engaged and the appliance maintains internal temperature
• Prevents the door from popping open or rattling during operation or transit
• Helps stop issues like airflow loss, frequent door alarms, or intermittent cycling caused by a loose latch
• Matches OEM fit and mounting points for straightforward replacement

• One catch assembly

• Disconnect power (and water if applicable) before starting any repair
• Remove the door panel or trim required to access the existing catch; keep screws and fasteners organized
• Compare the new part to the old part before installation to ensure fit and orientation
• After installation, cycle the door several times to ensure secure engagement and proper alignment

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This is the bottom door gasket that seals the lower edge of the appliance door to keep cold in and moisture out. It helps maintain proper temperature and prevents drafts that can cause frost or energy loss. What it does

• Forms a tight seal along the bottom of the door to prevent air and moisture leaks
• Helps stop frost buildup, condensation, and uneven cooling in the compartment
• Reduces compressor run time and energy loss caused by a compromised seal
• Restores proper door closure and consistent internal temperature

• One bottom-of-door gasket

• Inspect the door surface and channel for debris or old adhesive; clean before installing
• Warm and flex the gasket as needed for easier fit; follow OEM alignment and fastener sequence
• Use basic hand tools; avoid sharp tools that could nick or tear the gasket

Color: Black

Color: Black.

Replacement cover assembly that protects internal components and restores the appliance's appearance. Installs in place of a cracked or missing cover to prevent exposure and reduce vibration noise. What it does:

• Shields internal parts from dust, dirt and accidental contact
• Restores the appliance's finished look after damage or wear
• Reduces rattling or vibration caused by a loose or missing cover
• Helps keep components secured and prevents foreign objects from entering

• Disconnect power (unplug or switch off breaker) before starting any service
• Basic hand tools required; follow the appliance's service manual or diagram for removal/installation steps
• Wear gloves to protect against sharp edges and handle the cover gently to avoid cracking

Color: Black. This is the right side endcap filler. For left side use 2185655B.

Color: Black. This is the left side endcap filler. For right side use 2185656B.

This drain tube directs wastewater from the appliance to the drain path to prevent leaks and restore normal draining. Replace a damaged or cracked tube to stop water loss and reduce the chance of floor damage. What it does:

• Channels water from the washer tub to the drain pump or household drain
• Stops leaks caused by cracked, split, or brittle tubing
• Helps resolve slow draining or water pooling in the washer
• Restores a secure connection when the original tube has become loose or worn

• Disconnect power and turn off the water supply before starting any repair
• Remove the old tube and transfer clamps or use new clamps rated for the appliance
• Ensure the tube is routed without kinks and seated firmly on fittings

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


Size: 8-18 x 5/8 inch.

This hinge pin secures the appliance door to its hinge assembly, letting the door pivot smoothly and stay properly aligned. Replacing a worn pin restores correct door movement and helps prevent rubbing or sagging. What it does:

• Acts as the pivot point that holds the door to the hinge assembly.
• Restores smooth opening and closing when the original pin is worn or damaged.
• Helps correct door sag, uneven gaps, and contact between door and cabinet.
• Prevents excessive wear of hinge components when replaced promptly.

• One hinge pin

• Disconnect power (or unplug) and empty/remove the door or support it per your manual before starting.
• Support the door while removing the old pin to avoid injury or damage.
• Basic hand tools are typically required; avoid forcing parts and inspect hinge parts for additional wear.

Size: 8-32 x 1/2 inch.

Size: 8-18 x 3/4 inch.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Color: Black.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

The Ice Machine Cleaner is an OEM replacement part for use with Whirlpool ice machines. This cleaner plays a crucial role in maintaining the efficiency and longevity of your ice machine, ensuring it continues to produce clear, taste-free, and odorless ice. Formulated to remove scale and mineral build-ups, this solution is essential for the regular maintenance of ice machines, which can suffer from lime scale deposits and other residues that affect ice quality and machine performance.

Symptoms of needing an Ice Machine Cleaner include:

• Reduced ice production efficiency.
• The appearance of scale and mineral deposits within the machine.
• Ice that tastes or smells unusual.
• Increased energy consumption as the machine works harder to produce ice.

Regular use of the Ice Machine Cleaner is vital to prevent the accumulation of minerals and scale that can lead to inefficient cooling and increased energy consumption.

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
