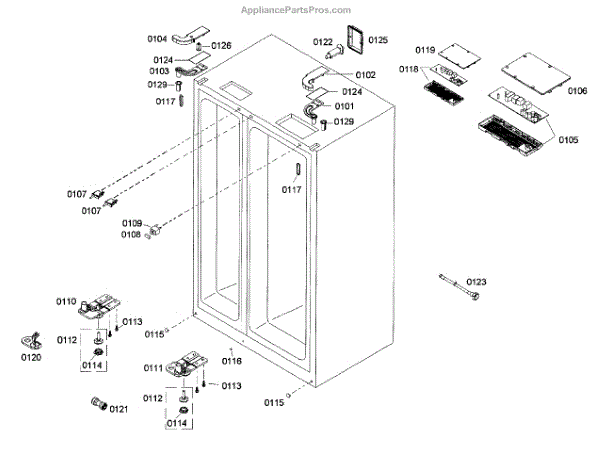

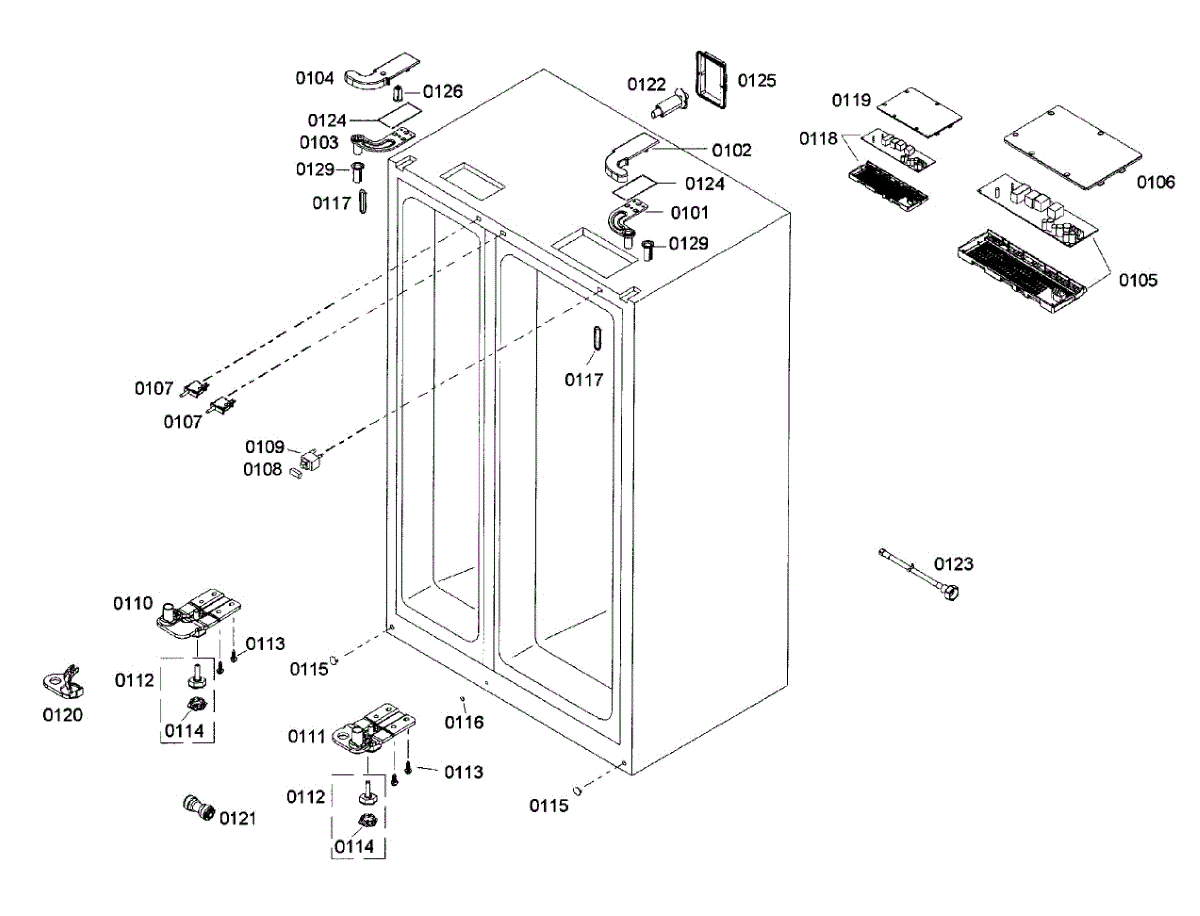

Parts for Bosch B22CS80SNS/04: Cabinet Parts

The Active Carbon Filter is an OEM part for Bosch refrigerators. This filter helps reduce odor-causing substances inside the refrigerator for fresher preserved food. It traps molecular impurities through an advanced filtration process.

Causes of a filter requiring replacement include normal lifespan expiration as indicated on the packaging. For optimal results, these filters should be replaced according to manufacturer guidelines.

Symptoms of a spent filter include:

• Return of odors to the refrigerator interior
• Potential taste transfers between strong smelling foods
• Reduced effectiveness of the odor reduction system

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Water Filter is an OEM part for Bosch refrigerators. This part removes impurities and contaminants from the water supply to your appliance. This part ensures that the water and ice dispensed by your refrigerator are clean, taste fresh, and are free of common waterborne particles and substances.

Over time, the water filter can become clogged with sediments and contaminants, reducing its effectiveness and potentially affecting the taste and quality of the water and ice. Regular replacement is essential for maintaining optimal performance.

Symptoms of a bad Water Filter include:

• Unpleasant taste or odor in the water or ice
• Decreased water flow to the dispenser or ice maker
• Visible particulate matter in the water or ice cubes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Control Unit is an OEM part for Bosch refrigerators. It acts as the central processing component, overseeing temperature regulation, frost removal, fan operation, and other functions within the refrigerator.

Causes of a bad control unit can include circuit failures, water damage or other issues that disrupt its ability to properly oversee refrigerator operations.

Symptoms of a bad control unit include:

• Erratic temperatures within the refrigerator and freezer compartments
• Inability to control fan speed or defrost cycles
• Faulty display or inability to change temperature settings
• Frequent error codes and malfunctions

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This door switch senses the dishwasher door position and tells the control when the door is closed so cycles can start or stop. It restores proper door sensing for reliable operation and safety. What it does:

• Detects when the door is fully closed so the control can begin or continue a wash cycle
• Prevents the dishwasher from starting or running when the door is open
• Common fix for symptoms like no-start, intermittent power to controls, or cycles that stop when the door moves
• Works with the latch/strike assembly to ensure a secure door closure signal

• One door switch

• Always disconnect power at the breaker or unplug the appliance before servicing
• Access typically requires removing the inner door panel; handle the inner door and glass carefully
• Verify wiring orientation and gently disconnect connectors; replace with identical wiring and secure all fasteners
• Test door operation before reassembling the door panels

This door hinge secures and guides a refrigerator or appliance door, restoring proper alignment and smooth opening/closing. Replace a worn hinge to stop sagging, uneven gaps, or doors that bind or fail to latch fully. What it does:

• Supports the door and maintains correct alignment for a tight seal
• Guides door movement for smooth opening and closing
• Reduces sagging or drooping that can prevent proper latching
• Helps stop rubbing or binding between the door and cabinet

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing the old hinge to prevent damage or injury
• Use basic hand tools; verify fastener locations and torque per the service manual
• After installation, check door alignment and adjust as needed for an even gap and secure seal

This Foot is a support piece that attaches to the unit or its assembly to provide stable contact with the surface. Replacing a worn or missing foot restores proper support, alignment, and quieter, smoother operation.

• Provides a stable, non-marring contact point between the product/component and the surface
• Helps maintain level and alignment to reduce wobble and vibration
• Replaces cracked, stripped, or missing feet that can cause rocking or uneven stance
• Helps prevent metal-to-surface contact that can scratch or damage floors or internal surfaces

• Disconnect power and water (if applicable) and allow the unit to cool before servicing
• Access the original mounting point; remove the damaged or missing foot
• Install the new foot by snapping or threading into the original location per model design; do not force
• Adjust for level and check stability before returning the appliance to service

This rubber foot cushions and stabilizes a supported component on your appliance, helping prevent sliding, vibration, and surface scratches. Replace a worn or missing foot to restore a secure, level fit and quieter operation. What it does:

• Provides non-slip support and proper spacing for the mating surface
• Dampens vibration to reduce rattling during use
• Helps protect finished surfaces from scuffs and scratches
• Replace if hardened, cracked, flattened, or missing to address wobble, rocking, or noise

• Rubber foot

• Disconnect power before servicing the appliance
• Allow any hot surfaces to cool completely before handling
• Clean and dry the mounting area; seat the new foot fully and evenly
• Refer to your model's parts diagram for exact location and orientation

This electronic control board manages the appliance's electronic functions and user interface, replacing a failed or unresponsive control module to restore normal control and cycle operation. What it does

• Runs the appliance's control logic, timers and cycle sequencing.
• Monitors and responds to sensor inputs and user commands.
• Drives displays, relays and valves/actuators as required.
• Common symptom linkage: appliance won't start, is unresponsive to controls, shows control-related error codes, or cycles incorrectly.

• Disconnect power (unplug or switch off breaker) before attempting service.
• Handle the board carefully; avoid bending, contamination, or static discharge.
• Verify harness connectors seat fully and check connectors for damage before reassembly.

This inlet hose connection directs water into the appliance, replacing a worn or damaged fitting to restore a secure hose path and prevent leaks. Fits the original inlet position and connects standard supply/drain tubing. What it does

• Re-establishes a sealed connection where the water hose joins the appliance to stop leaks.
• Provides the proper routing and support for inlet/discharge tubing to prevent kinks or disconnection.
• Replaces cracked, corroded, or broken fittings that can cause intermittent filling or slow drainage.
• Helps restore normal water flow by ensuring a tight, leak-free hose interface.

• One hose connection (inlet) as shown.

• Turn off power and water supply before replacing; relieve any pressure in the line.
• Inspect surrounding hoses and clamps; replace if brittle or damaged to ensure a lasting repair.
• Hand-start fasteners to avoid cross-threading, then snug—do not overtighten plastic fittings.

A replacement door bearing for restoring smooth, stable door movement and proper alignment. Helps reduce door wobble and noisy operation so the door opens and closes reliably. What it does:

• Supports the door at the hinge point to enable smooth pivoting
• Reduces rubbing, binding, or grinding noises during door movement
• Helps correct minor door sag and alignment issues when worn
• Works with existing hinge assembly to restore normal operation

• Door bearing part

• Disconnect power to the appliance before starting repairs
• Remove any trim or panels blocking the hinge area to access the bearing
• Use basic hand tools to remove the hinge fasteners, swap the bearing, and reinstall hardware
• Check hinge alignment and door operation after installation; tighten fasteners to manufacturer torque specs if provided
