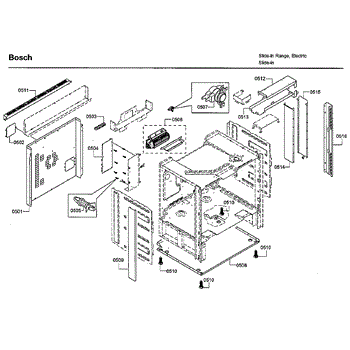

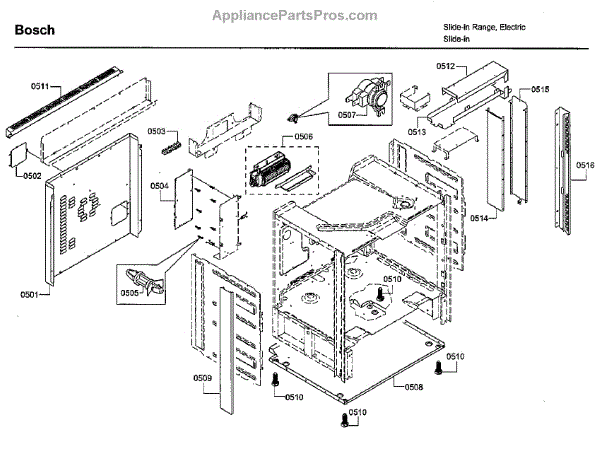

Parts for Bosch HIIP054U/05: Cabinet Parts

Parts for Bosch HIIP054U/05: Cabinet Parts

Location on Diagram
Part Description
Price & Availability
501
By: Bosch
Part Number: 11004506

Replaces cracked or damaged rear housing cover on your range. Protects internal components and ensures proper ventilation through integrated vents.

More
$85.49

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
502
By: Bosch
Part Number: 00632609
$20.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
503
Product photo
5.0 (1)
By: Bosch
Part Number: 00436364

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

  • Inconsistent power supply to the oven
  • Non-functional heating elements
  • Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

More
$33.95

IN STOCK
Ships Today Guaranteed
Add to Cart
504
Product photo
By: Bosch
Part Number: 12026566

Range not responding to controls or display blank? The control module processes commands from knobs and buttons. Requires moderate electrical skills to replace.

More
$287.67

IN STOCK
Ships Today Guaranteed
Add to Cart
506
Product photo
By: Bosch
Part Number: 12011471

Uneven baking or slow cooking? This convection fan circulates heated air throughout your range oven for consistent, professional cooking results.

More
$194.33

IN STOCK
Ships Today Guaranteed
Add to Cart
507
By: Bosch
Part Number: 00617041

Fix your range overheating or not heating properly with a temperature limiter replacement. This safety component regulates oven temperature limits.

More
$68.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
508
By: Bosch
Part Number: 10024336
$81.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
509
By: Bosch
Part Number: 11008981

Replace your range's side panel if it's cracked, dented, or showing rust. This exterior panel covers the side of your appliance for a complete look.

More
$107.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
510
Product photo
By: Bosch
Part Number: 00429065

Leveling foot for electric and gas ranges. Adjustable metal foot installs at base corner. Replace if cracked, broken, or missing to level your range.

More
$30.57

IN STOCK
Ships Today Guaranteed
Add to Cart
511
Product photo
By: Bosch
Part Number: 11002273

Decorative trim plate that covers gaps between your electric range and cabinetry. Replace if cracked, broken, or missing to restore a clean finish.

More
$182.79

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
512
By: Bosch
Part Number: 12003914
$46.52

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
513
By: Bosch
Part Number: 12003915
$163.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
514
By: Bosch
Part Number: 11002702
$58.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
515
By: Bosch
Part Number: 11002703
$60.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
516
By: Bosch
Part Number: 11008980

Replace the side panel on your range. This exterior panel covers the side of the appliance. Order a new one if yours is dented, scratched, or damaged.

More
$174.86

IN STOCK
Ships Today Guaranteed
Add to Cart
550
Product photo
By: Bosch
Part Number: 00617527

The Screw is an OEM part for Bosch microwave ovens. It is a component that secures the outer casing and front paneling of the microwave. The screw is designed to withstand repeated heating and cooling cycles without loosening or degrading.

Symptoms of bad screw include:

- The front panel or outer casing becoming loose, detached, or misaligned
- Gaps appearing in the seams or joints of the microwave structure
- The door not sealing properly leading to leaks

Over many uses of the microwave, screws can wear down or strip out from over-tightening during repairs or installations. It is important to replace worn screws to ensure the microwave maintains an intact structure.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


More
$32.23

IN STOCK
Ships Today Guaranteed
Add to Cart
