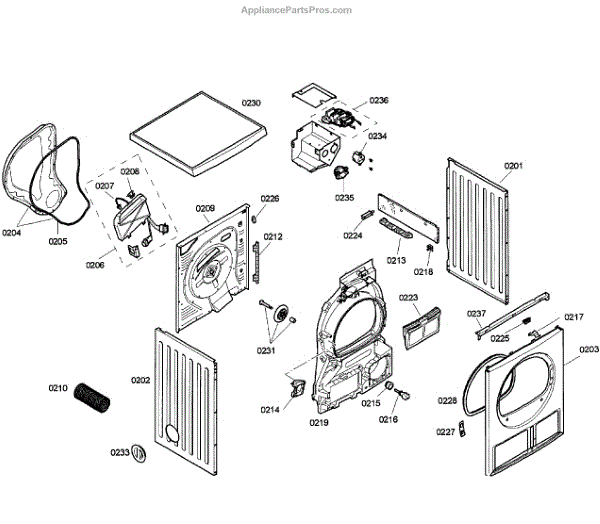

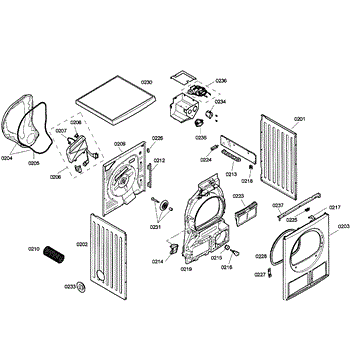

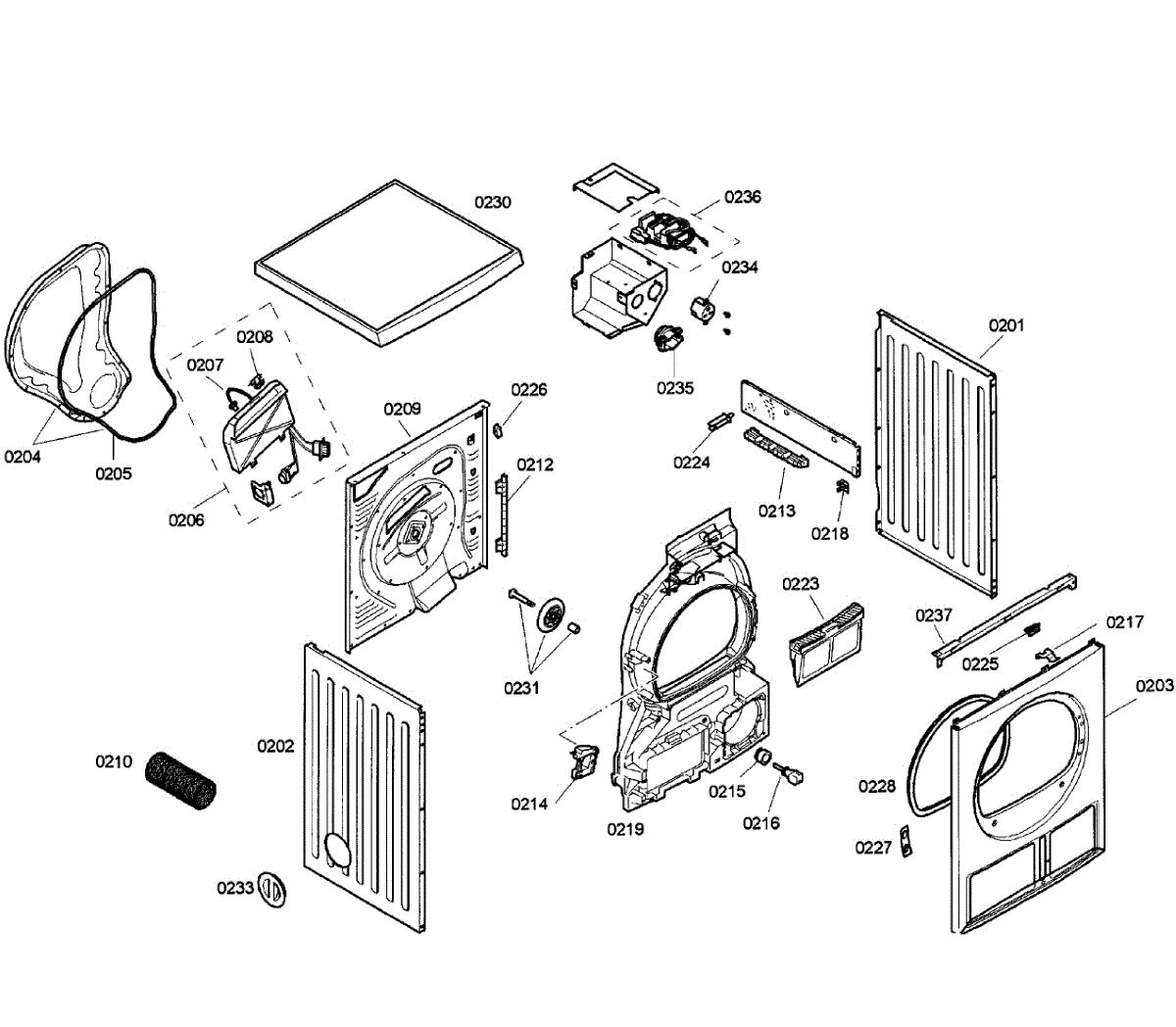

Parts for Bosch WTV76100US/04: Cabinet Parts

This heating element supplies the heat needed for the dryer to dry clothes efficiently. Replaces a worn or failed heater assembly to restore normal drying performance and help prevent extended cycle times. What it does:

• Heats incoming air inside the dryer so tumbling clothes can dry
• Commonly replaced when dryer runs but produces little or no heat
• Resolves symptoms like long dry cycles, damp clothes after a full cycle, or heating that cycles off unexpectedly
• Works as the main thermal source; interfaces with the dryer's blower and thermostat system

• One heating element assembly (single unit as shown)

• Disconnect power at the breaker or unplug the dryer before service
• Access typically requires removing the dryer's front or rear panel; handle element edges carefully to avoid damage
• Check and replace any damaged wiring and ensure thermostats/thermal fuses are functioning before reassembly

The Limiter-Temperature is an OEM component specifically designed for select Bosch vented dryers requiring controlled heat. As a safety device, it restricts air exiting the exhaust to prevent accidental ignition of accumulated lint.

Precisely calibrated mechanothermal links automatically trip circuit breakers upon exceeding preset levels. Isolated housings shield reactive alloys from moisture while enabling thermodynamics to naturally trigger protective functions.

Causes requiring replacement involve over-heating from sustained over-drying preventing auto-stops. Physical damage exposing reactive cores could also impair intended response times.

Symptoms signaling the need for a new temperature limiter include:

• Inability to sense rising exhaust temperatures activating cutoffs
• Constantly energized heating elements lacking temperature regulation
• Excessively long or uncontrolled dry cycles posing combustion risks

This OEM Bosch replacement component is also compatible with some Gaggenau, Thermador, and select Kenmore dryers employing sensitive temperature cutoffs. Correct installation restores critical overheat protection circuits.


A temperature limiter (thermal cutoff) that helps protect heating circuits by opening when temperatures exceed safe limits, preventing overheating and potential damage to the appliance. What it does:

• Interrupts power to the heating element or circuit when internal temperature gets too high
• Prevents continued heating that can cause damage or unsafe conditions
• Commonly linked to symptoms like no heat, intermittent heating, or a unit that shuts off during a cycle
• Acts as a safety backup to primary thermostats and controls

• Disconnect power to the appliance before servicing to avoid shock or injury
• Replace only with the exact part number to maintain OEM safety protection
• Handle the part carefully; avoid bending or damaging terminals and mounting features

This flexible exhaust air hose routes hot, moist air from the appliance to the household vent, helping maintain proper ventilation and reduce moisture buildup. It's a direct-replacement vent hose used in the dryer/exhaust path. What it does:

• Provides a sealed pathway for hot air and moisture to exit the appliance
• Restores proper airflow when the original hose is damaged, crushed, or disconnected
• Helps prevent excess lint accumulation in the appliance cabinet and ductwork
• Can reduce long dry times and overheating caused by restricted exhaust

• One exhaust air hose

• Disconnect power (and gas, if applicable) and pull the appliance away from the wall before starting
• Secure hose with appropriate clamps or fasteners and ensure a smooth, unobstructed route
• Inspect surrounding components and vent path for lint or damage while replacing the hose

This door lock/latch assembly secures the dishwasher door during operation to allow cycles to run and helps keep water inside the tub. Replaces a worn or broken latch to restore proper door closure and cycle starts. What it does:

• Secures the dishwasher door so the machine can start and run safely
• Sends the door-closed signal so wash cycles can begin
• Prevents water leaks caused by a faulty or loose latch
• Commonly used when the door won't stay closed, the cycle won't start, or the door feels loose

• Disconnect power and water supply before replacing the latch to avoid shock or unintended operation.
• Access typically requires opening the door inner panel; use proper tools to avoid damage to the door or trim.
• Retain all screws and hardware during disassembly; replace only the parts explicitly included unless other damage is found.

Thermister

The Dryer Lint Filter is an OEM component specifically designed for Bosch dryers. Located inside the dryer door, it prevents lint and other debris from escaping into the surrounding area.

Symptoms of a bad dryer lint filter include:

• Reduced airflow and inefficient drying times
• Lint accumulation inside the dryer drum and ductwork
• Excess lint in the surrounding area and on clothes

Causes of a bad lint filter can include normal wear and tear over time, or damage such as cracks or tears that compromise filtration. Failure to clean after each use also contributes to eventual clogging.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement cover restores a secure, finished closure over its designated opening, helping protect internal components from dust, moisture, and accidental contact. Replace a cracked, loose, or missing cover to maintain proper protection, fit, and appearance.

• Shields internal parts and wiring from debris and accidental contact
• Helps maintain proper sealing and airflow where applicable
• Common signs to replace: cracked, warped, broken tabs, or cover won't stay attached
• Can reduce rattling or vibration noises caused by a loose panel

• Disconnect power; if the appliance is plumbed, turn off water supply before service
• Use the correct driver to remove/replace retaining screws or clips; note orientation
• Transfer any reusable fasteners or grommets from the old part
• Do not overtighten; ensure a flush, secure fit before restoring power

The Sealing is an OEM part for Bosch dryers. This part is responsible for creating a tight seal between the dryer door and the drum, preventing heat, moisture, and lint from escaping during the drying process. It helps to maintain the ideal drying conditions inside the drum, allowing for faster and more effective drying of your laundry.

A bad sealing can occur due to wear and tear, accidental damage, or exposure to high temperatures over time. Signs of a faulty sealing include visible cracks, gaps, or a loose fit between the door and the drum.

Symptoms of a bad sealing include:

• Heat or moisture escaping from the dryer
• Excessive lint buildup around the door
• Longer drying times

Replace your worn-out or damaged dryer door sealing with this genuine OEM Bosch part to restore your dryer. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Wheel is an OEM part for Bosch clothes dryers. It is an essential component that works with the drum to tumble clothes, facilitating effective drying action during cycles.

Wheels can cause shorts and come loose over time from heavy drum usage, leading to:

• Vibrating, shaking noises
• Difficulty spinning the dryer drum by hand
• Stretching or pilling of clothes
• Unerwven drying performance

Causes of a faulty wheel tend to be wear and tear over time from carrying heavy loads inside a spinning drum. Foreign objects inside the drum can also potentially cause damage.

It is also compatible with some Thermador, Gaggenau, and Kenmore dryer models.

A replacement sealing that helps keep water and air contained where the appliance needs a tight seal, reducing leaks and maintaining optimal performance. Designed as a direct-fit service part to restore proper sealing. What it does:

• Forms a watertight barrier at the door or drawer opening to prevent leaks and drips
• Keeps internal temperatures and pressures stable by sealing the cavity
• Worn or torn seals can cause water on the floor, poor cleaning/drying, or unusual noises
• Restoring the seal helps stop common symptoms related to gaps or deterioration

• One replacement sealing

• Turn off and unplug the appliance and shut off the water supply before beginning repairs
• Inspect the mounting channel and clean before installing the new seal for best fit
• Seat the seal evenly around the perimeter; avoid stretching or twisting the material
