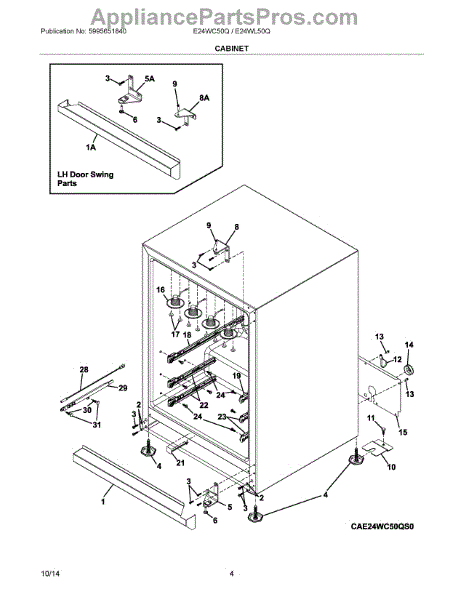

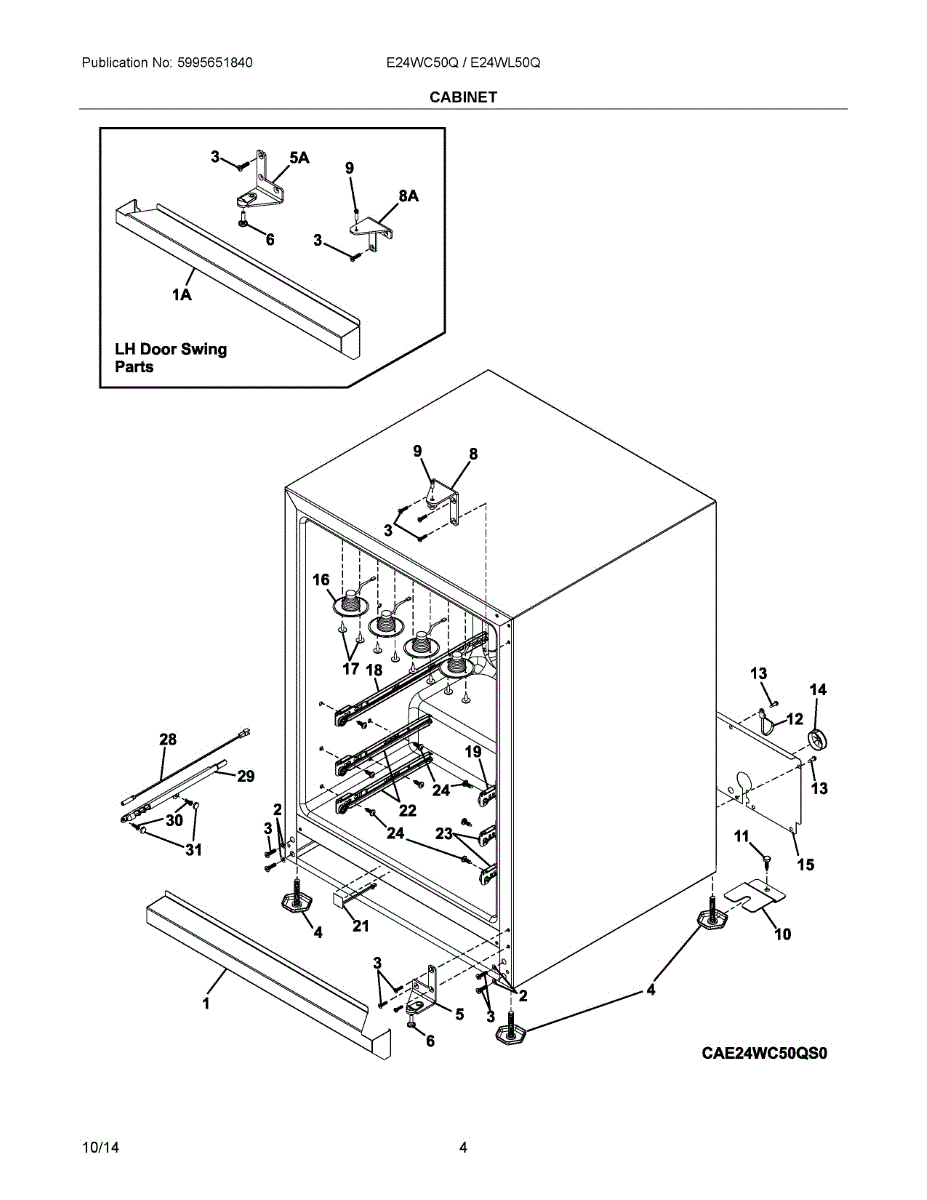

Parts for Electrolux E24WC50QS0: 03 - Cabinet Parts

This door hinge secures and guides a refrigerator door so it opens, closes and stays aligned. It restores proper door movement and helps stop sagging, rubbing or uneven gaps for a tight seal and reliable operation. What it does

• Serves as the pivot point that supports the appliance door and allows smooth opening and closing.
• Restores correct door alignment to prevent rubbing, dragging or uneven sealing.
• Helps stop winded or sagging doors that don't latch securely.
• Works with the door's mounting hardware to maintain a consistent gap for proper sealing.

• One door hinge.

• Disconnect power and remove food/items from the door before starting.
• Support the door (use a helper or a block) to prevent it from falling when hinge hardware is removed.
• Transfer any hinge-mounted components (trim, covers, pins) exactly as removed and tighten fasteners securely.
• Check hinge mount screws and door leveling; avoid over-tightening which can strip threads.

A small metal pin used to secure moving parts like pivots or shafts so doors, drawers, or internal assemblies stay aligned and operate smoothly. Replaces worn or damaged pins to stop excessive play and noisy movement. What it does:

• Secures a pivot or shaft so the linked component rotates or slides on a fixed axis
• Restores proper alignment when a worn pin causes wobble or uneven operation
• Helps stop rattling, binding, or misalignment of the attached part
• Works as the mechanical fastener inside hinge, roller, or linkage assemblies

• Disconnect power or unplug the appliance before servicing
• Keep track of orientation and any washers or clips during removal
• Use appropriate hand tools and secure small parts to avoid loss

This replacement cable tie secures appliance wiring and harnesses to keep wires routed and stable, helping prevent rubbing, pinching, and noise from loose wiring. Simple, low-cost fix when harness clips or ties have failed. What it does:

• Holds wiring harnesses and loose wires in place to reduce chafing and noise
• Prevents harness sagging that can cause intermittent connections or wear
• Keeps wires routed away from moving parts and hot surfaces
• Works wherever a single-use plastic tie is needed for fastening

• Always disconnect power at the breaker or unplug the appliance before working on wiring
• Route the harness as shown in the service diagram; cinch the tie snug but do not over-tighten
• Trim excess tie tail flush and inspect for secure fit; replace if damaged
• Cable ties are single-use; replace with a matching tie if removal is required

This slide is a replacement drawer slide that restores smooth, supported movement for a refrigerator drawer or shelf. It helps drawers glide properly and stay aligned for reliable access to stored items. What it does:

• Replaces a worn or broken drawer slide so the drawer opens and closes smoothly
• Prevents drawers from falling, binding, or coming off their track
• Restores proper alignment and support for loaded drawers
• Reduces noise and uneven movement caused by a damaged slide

• One replacement drawer slide

• Install by removing the drawer and sliding the old piece out, then align and secure the new slide per the appliance's rail pattern
• Keep screws and hardware from the old slide if compatible; replace fasteners only with approved parts
• Wear gloves to avoid sharp sheet-metal edges and disconnect power if working near controls or lighting
• If the drawer still binds after replacing the slide, verify rail alignment and inspect the mating track for damage

This factory screw secures interior or door components in your refrigerator so they stay tight and aligned. Replace missing, stripped, or corroded hardware to eliminate looseness and prevent parts from shifting or rattling during use.

• Fastens brackets, trim, rails, bins, or handles to the cabinet or door
• Restores a secure fit when the original screw is lost, damaged, or rusted
• Helps correct looseness, vibration, and rattling from unsecured parts
• Common symptoms: loose or wobbling handle/trim, misaligned parts, missing hardware

• Disconnect power to the appliance before servicing; turn off water if working near dispenser/ice areas
• Match to the original hardware and install in the same location; reuse any washers/spacers
• Start threads by hand to prevent cross-threading; use the correct driver bit
• Tighten snugly—do not overtighten to avoid stripping threads or cracking plastic
