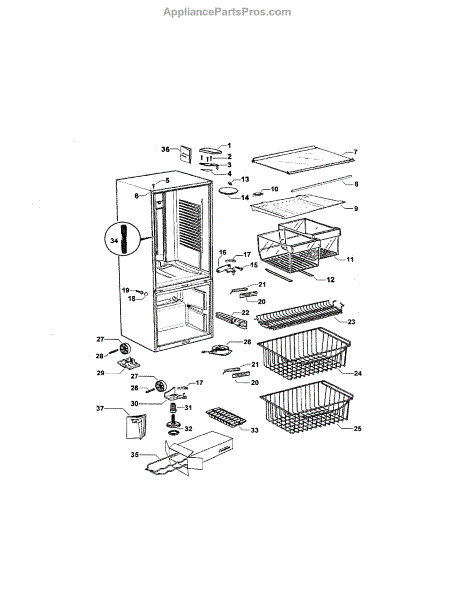

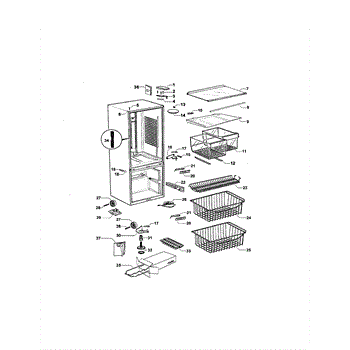

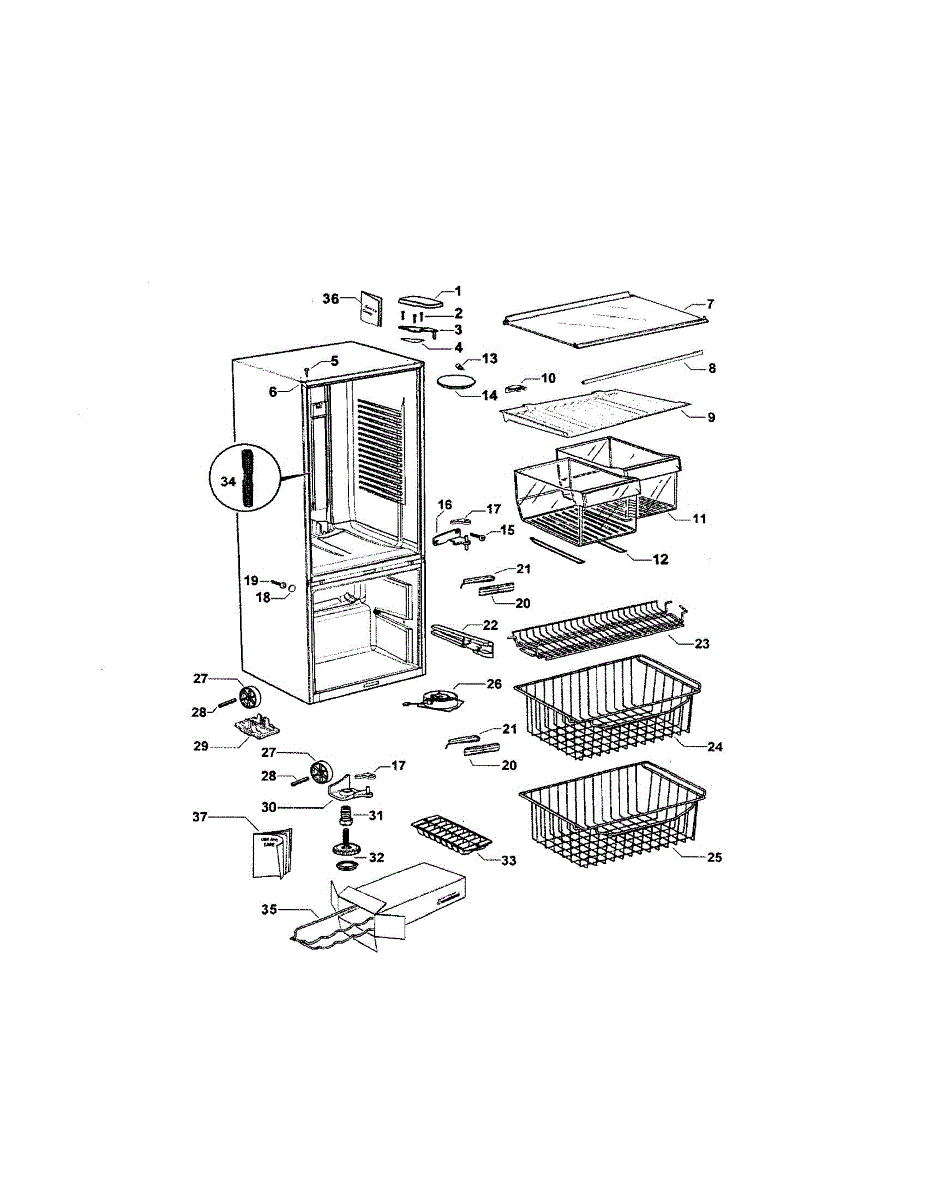

Parts for E522: Cabinet Parts

This is a tempered glass shelf assembly with a plastic trim that provides a stable, easy-to-clean surface for storing food and containers in the refrigerator. Restores a broken or missing shelf and keeps items organized. What it does:

• Replaces a cracked, chipped or missing fridge shelf to restore usable storage space
• Plastic trim protects the shelf edge and helps it seat securely in door/groove supports
• Provides a flat, easy-to-clean surface for food, jars and containers
• Prevents items from shifting by restoring the intended shelf support

• Remove all items from the shelf and surrounding area before installation
• Handle glass with care and wear cut-resistant gloves to avoid injury
• Seat the trim into the shelf supports or grooves fully; do not force or over-torque any fasteners
• Dispose of broken glass carefully and follow local regulations

The Support Bracket is an OEM component specifically designed for Fisher & Paykel refrigerators. This bracket securely mounts internal shelves, bins, and other removable parts within the refrigerator storage area.

The bracket must withstand years of shifting shelf loads and accidental impacts without deforming. Over many uses, small defects can accumulate.

Causes of a defective support bracket include stress fractures or damage from misaligned or overloaded shelves putting uneven pressure on mounting points.

Symptoms of a bad support bracket include:

• Loose or sagging shelves that do not stay level
• Detached shelves or bins that no longer stay mounted
• Broken plastic or bent mounting tabs

This OEM Fisher & Paykel part is also compatible with models from KitchenAid, ProLine, and some Crosley brands. Replacing a damaged bracket helps maintain proper shelving support for your refrigerator.


This left-side lower basket runner replaces the sliding guide that supports and guides the dishwasher lower basket for smooth in-and-out movement. Restores proper rack tracking and reduces catching or uneven travel. What it does:

• Guides the lower basket along the track so the rack moves smoothly and stays aligned
• Prevents the basket from binding, catching, or tipping when pulled out
• Helps reduce noise from a loose or misaligned lower rack
• Works with the lower rack assembly to keep dishes stable during loading

• One left-side lower basket runner

• Disconnect power to the appliance before servicing
• Remove the lower rack to access and replace the runner; reassemble carefully to ensure proper alignment
• No specialty tools typically required—use common hand tools and follow OEM instructions
• Inspect the track and opposing runner for wear or damage

This PC fan assembly replaces the small cooling fan used to move air across the appliance's electronic control board, helping keep electronics cooler and reducing thermal stress for reliable operation. What it does

• Circulates air to cool the main control/PC board and nearby components
• Prevents overheating that can cause control errors or shutdowns
• Reduces fan noise or vibration when a failed fan is replaced
• Restores proper airflow if a burned, seized, or intermittent fan was the issue

• Disconnect power before accessing the control housing or PC board
• Handle the control board and connectors carefully to avoid damage from static or flexing
• Verify fan connector orientation and secure mounting; route wiring away from moving parts

This left-hand hinge base bracket secures the appliance door to the cabinet hinge assembly, providing a stable pivot point for smooth opening and closing. Replaces a damaged or worn hinge base to restore proper door alignment and operation. What it does:

• Supports the door at the lower/upper hinge location so the door stays aligned and seals correctly
• Restores smooth door movement when a cracked or bent bracket causes sticking or binding
• Helps stop door sagging or uneven gaps that can let cold air escape
• Prevents metal-on-metal wear that can lead to noisy or unstable hinge operation

• One left-hand hinge base bracket

• Disconnect power (and water supply if appliance has a water line) before starting any repair
• Support the door securely before removing hinge fasteners to prevent injury or damage
• Use appropriate hand tools; avoid overtightening fasteners which can warp the bracket or hinge
• After installation, check door alignment and operation; adjust hinge position if needed for an even seal

This Use & Care booklet provides the original manufacturer instructions and basic operating, care, and safety information for your appliance. Keep it for reference to maintain performance and follow recommended care steps. What it does

• Explains basic operation and control panel functions in plain language
• Lists safety warnings and proper handling to reduce risk of accidents
• Describes routine care and cleaning to help maintain appliance condition
• Provides basic troubleshooting tips and when to contact service
• Clarifies warranty and registration steps

• One Use & Care booklet

• No tools required; keep booklet near the appliance or with household manuals
• Read all safety and operating instructions before using the appliance
• Do not discard—provide to new owners if appliance is sold or transferred
• For replacement parts or service, refer to the appliance serial/model information
