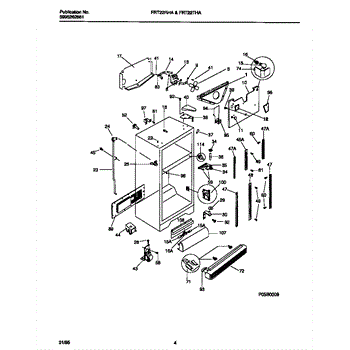

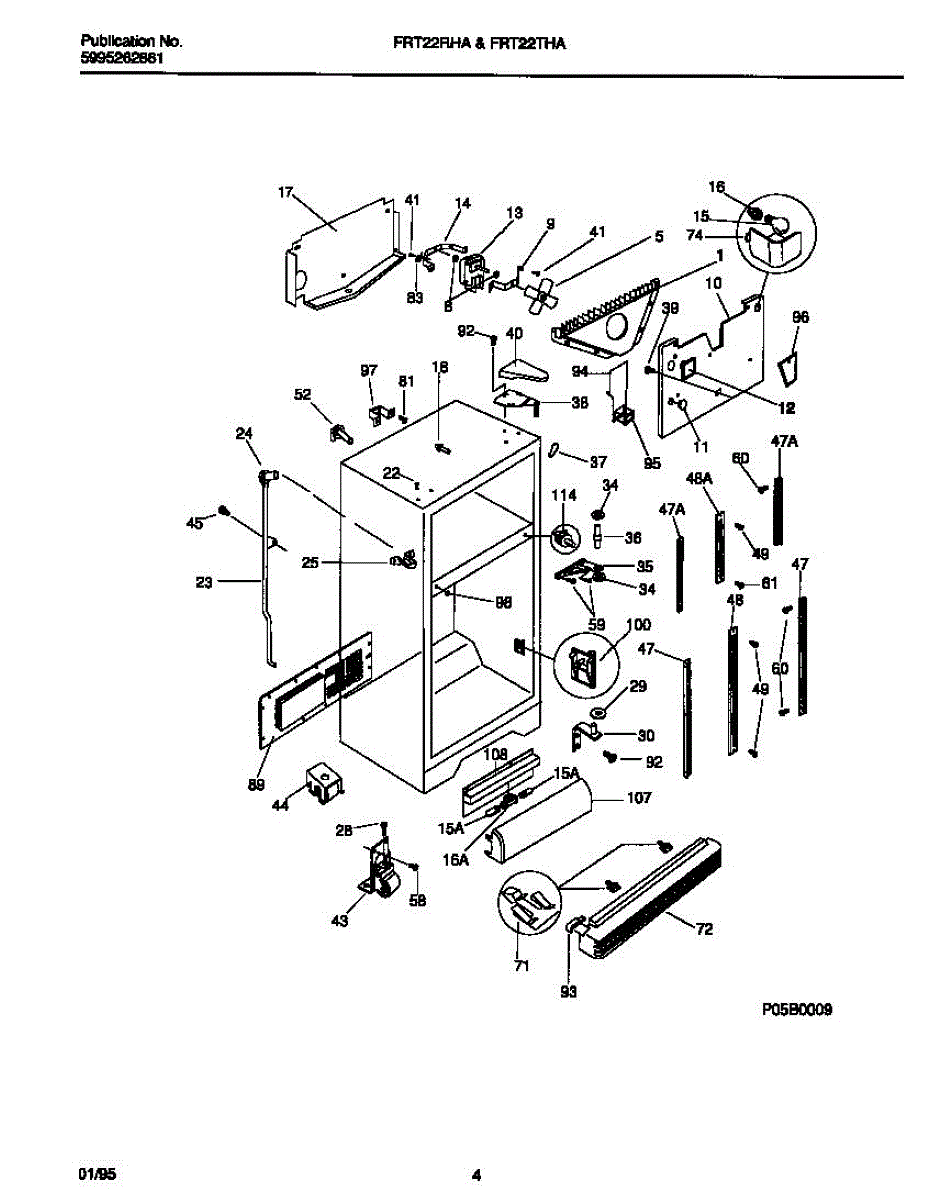

Parts for Frigidaire FRT22THAK2: 03 - Cabinet W / Fan Assy. Parts

This evaporator fan shroud secures the evaporator fan assembly and channels airflow across the evaporator coil to help the freezer/refrigerator cool properly. It replaces a cracked or missing shroud to restore proper airflow and protect the fan. What it does:

• Holds the evaporator fan motor and blade in the correct position for reliable operation
• Directs airflow across the evaporator coil for consistent cooling performance
• Protects the fan blade from contact with other components or ice buildup
• Can reduce fan noise caused by a loose or damaged shroud
• Helps prevent airflow loss that can cause frost buildup or uneven cooling

• Disconnect power to the appliance before starting any repair
• Access may require removing interior liners or evaporator cover panels; keep fasteners for reassembly
• Handle evaporator fins carefully to avoid cuts and damage to the coil
• Verify fan spins freely and motor wiring is secure before restoring power

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

Front evaporator fan motor mounting bracket

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

Nylon

The Evaporator Motor is an OEM part for Frigidaire refrigerators. This component powers the evaporator fan, which circulates cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures for proper food storage. Compatible fan blade is part number AP2152058

Causes of a bad evaporator motor can include electrical issues, worn-out bearings, or obstruction by debris. A malfunctioning evaporator motor can lead to improper cooling and temperature fluctuations within the refrigerator.

Symptoms of a bad evaporator motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises such as grinding or squealing from the freezer compartment
• Frost buildup on the evaporator coils
• The refrigerator running continuously without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This refrigerator bracket and bushing assembly secures a moving component and provides a stable wear/pivot surface for smooth operation. Replace it when the original parts are worn or broken and causing looseness, scraping noises, or poor alignment.

• Provides a mounting point and bearing surface for rotational or sliding movement
• Helps maintain alignment and smooth, quiet operation
• Can help address wobble, scraping/binding, or a component that sags or sits out of position
• Replace if the bracket is bent/cracked or the bushing is worn/missing

• Disconnect power before servicing; turn off water supply if working near dispenser lines
• Support the attached component while removing fasteners; note the original orientation
• Transfer any spacers/clips from the old parts if present and tighten fasteners evenly
• After installation, verify smooth movement and proper alignment

Color: White. Used for the upper hinge holes.

Specs: 5/16 - 24 x 7/8 with a hex head

Left

This flat washer is a small hardware spacer that helps distribute fastener load and protect mating surfaces for appliance assemblies. It provides a stable, flush bearing surface to keep screws and bolts seated securely. What it does:

• Distributes clamping force from screws or bolts to reduce surface damage
• Helps maintain even, secure connections and prevents pull-through
• Acts as a spacer to ensure proper clearance and alignment of parts
• Can reduce vibration-related loosening when used with the correct fastener

• Disconnect power and water to the appliance before servicing
• Match washer size and thickness to the original part for proper fit
• Place washer between fastener head and mating surface; avoid overtightening
• If missing corrosion or wear is present on fasteners, replace the fastener and washer together

This center hinge pin secures the middle hinge on a refrigerator door, letting the door pivot smoothly and stay aligned. Replace a worn or damaged pin to restore proper door movement and sealing. What it does:

• Acts as the pivot point for the center (middle) door hinge so the door opens and closes freely
• Keeps the door aligned to maintain an even seal and proper closing
• Commonly needed when the pin is bent, worn, corroded, or broken
• Can reduce door sag, rubbing, or uneven gaps that cause poor sealing

• One center hinge pin

• Support the door before removing the hinge to prevent dropping or damage
• Use proper hand tools; follow the appliance manufacturer's disassembly guidance
• Wear gloves and eye protection to avoid injury from sharp edges or falling parts

This cabinet corner trim restores the finished edge where two cabinet panels meet, covering exposed corners and improving the appliance's appearance. It's a direct-replacement trim piece that helps keep panels aligned and protected from chips. What it does

• Covers and protects exposed cabinet corners from chips, dings and wear
• Hides gaps where cabinet panels meet for a neater appearance
• Helps secure and align adjacent cabinet or console panels
• Useful when original trim is cracked, broken, bent or missing

• Remove any adjacent panels or screws that block access before installing the trim
• Align trim with cabinet edge and press or fasten per the original attachment method
• Use only the OEM replacement part to ensure proper fit; do not force or bend the trim
• Disconnect power before removing panels

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

This plug grille fills the appliance cabinet opening and restores a finished look while covering ducting and wiring at the base. The almond color matches factory trims for a seamless appearance. What it does:

• Covers the grille opening at the base of the cabinet to prevent debris entry and improve appearance
• Helps maintain proper airflow path by sealing the grille area as designed
• Replaces cracked, warped, or missing grille plugs that expose internal components
• Restores the appliance's factory look when the original plug is discolored or damaged

• One almond plug grille

• Snap-in or screw-retained design — attachment points before installing
• Turn off and unplug the appliance or disconnect power at the breaker before accessing the grille area
• Use a soft cloth to avoid scratching surrounding surfaces during installation

This replacement white grille plug restores a clean finished look by covering an unused opening in the appliance front grille. It helps keep out dust and small debris while maintaining the grille's appearance. What it does:

• Covers unused grille openings to restore the appliance's finished appearance
• Helps block dust, lint and small debris from entering behind the grille
• Prevents small objects from falling into internal openings
• Snaps into the grille opening to hold trim flush and secure

• High-level: Disconnect power or unplug the appliance before working near electrical components
• Most installs: Push the plug into the grille opening until it snaps or sits flush; no special tools typically required
• If retaining clips resist, gently pry the surrounding trim for access—avoid excessive force to prevent cracking
• Verify proper fit and that the plug sits flush with the grille after installation

A small replacement push-cap that restores the look and function of a control or panel button. Use this plug button when a worn, torn, or missing cap makes controls hard to press or exposes the switch. What it does

• Covers and protects the underlying switch or actuator from dirt and moisture
• Restores a tactile surface for reliable button presses
• Improves appearance when the original cap is cracked, torn, or missing
• Prevents accidental contact with the switch mechanism

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the control panel or trim per your model's service instructions to access the button area
• Press the plug onto the switch stem until fully seated; do not force or pry with metal tools
• If the switch underneath is damaged, replace the switch assembly rather than relying on the cap alone

The Crisper Shelf Support is an OEM part for Frigidaire refrigerators. It is designed to hold the crisper shelf securely in place, providing stable support for the storage of fruits and vegetables.

Over time, the crisper shelf support can become worn or damaged due to regular use, heavy loads, or accidental impacts. If the support breaks or fails, it can lead to an unstable or sagging crisper shelf.

Symptoms of a bad crisper shelf support include:

• The crisper shelf not sitting level
• The shelf falling out of place or not staying securely in position
• Difficulty in inserting or removing the crisper drawer
• Visible cracks or damage to the support

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This door-actuated light switch replaces a worn or failed refrigerator light control so the interior light turns on and off when the door opens. Restores reliable lighting and helps you see food clearly. What it does:

• Closes and opens the light circuit when the refrigerator/freezer door is opened or closed
• Commonly used when the interior light stays on, won't turn on, or flickers intermittently
• Controls the lamp only; does not include bulbs or housing components
• Matches OEM fit and mounting for a direct replacement

• One door-actuated light switch

• Disconnect power or unplug the appliance before replacing the switch
• Remove the light bulb and bezel or access panel as required to reach the switch
• Replace the switch with the same orientation and secure mounting; reconnect wiring to factory terminals
• Test operation by restoring power and opening the door

Color: Black

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
